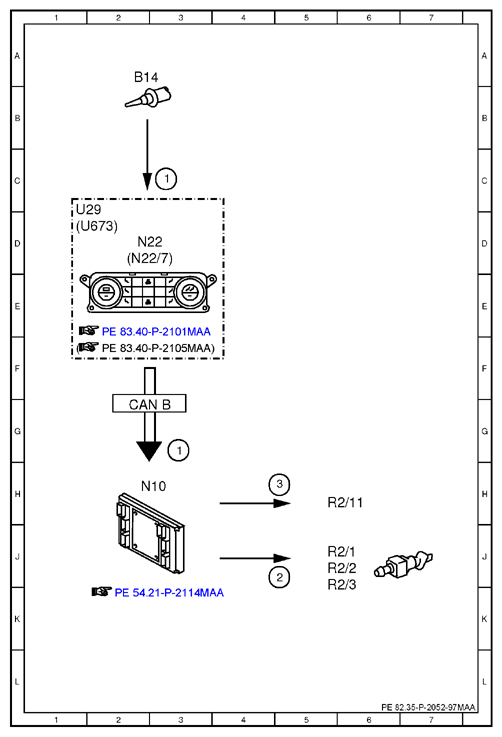

| 1 |
Outside temperature indicator temperature sensor, signal |
3G |
| 1 |
Outside temperature indicator temperature sensor, signal |
3C |
| 2 |
Washer nozzle heater, actuation |
5J |
| 3 |
Washer nozzle hose heater, actuation |
5H |
| B14 |
Outside temperature display temperature sensor |
2A |
| CAN B |
Interior CAN |
3G |
| N10 |
Front SAM control unit |
2H |
| N22 |
AAC [KLA] control and operating unit |
2D |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
2D |
| R2/1 |
Center washer nozzle heater |
5J |
| R2/11 |
Washer nozzle hose heater |
5H |
| R2/2 |
Left heated windshield washer nozzle |
5J |
| R2/3 |
Right washer nozzle heater |
5K |
| U29 |
Valid for AAC [KLA] |
1D |
| U673 |
Valid for comfort AAC [K-KLA] |
1D |
