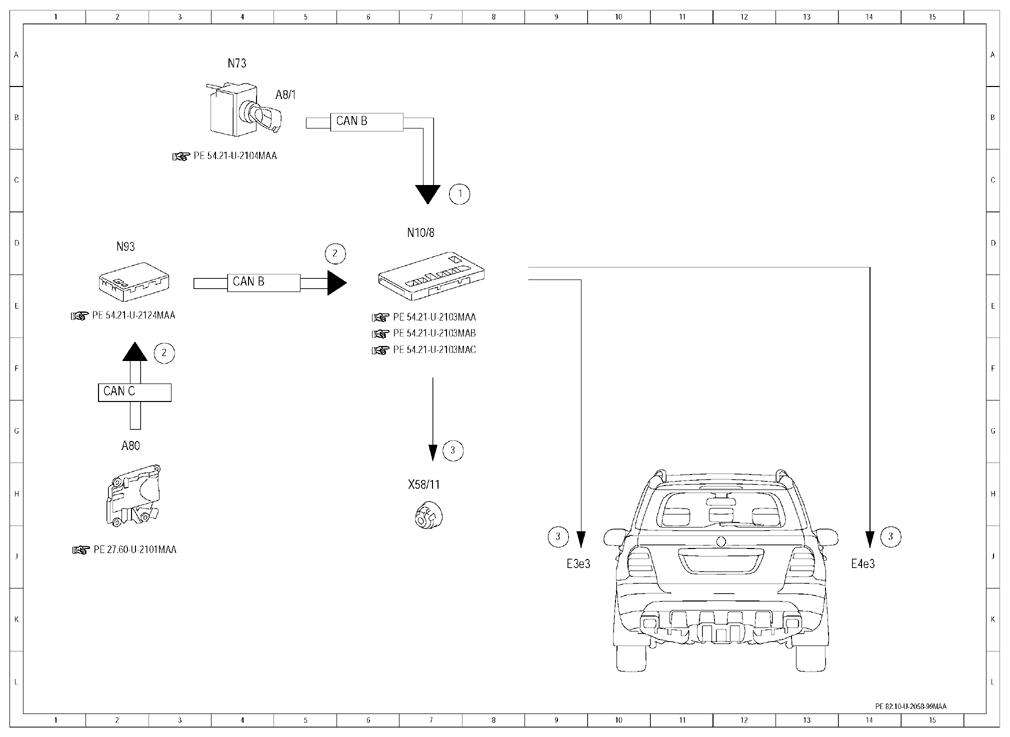

| 1 |
Circuit 15, status |
7 C |
| 2 |
Reverse gear, status |
3 F |
| 2 |
Reverse gear, status |
5 D |
| 3 |
Backup lamp, actuation |
7 G |
| 3 |
Backup lamp, actuation |
9 J |
| 3 |
Backup lamp, actuation |
14 J |
| A8/1 |
Transmitter key |
5 B |
| A80 |
Intelligent servo module for DIRECT SELECT |
2 G |
| CAN B |
Interior CAN |
4 E |
| CAN B |
Interior CAN |
5 B |
| CAN C |
Engine compartment CAN |
2 G |
| E3e3 |
Left backup lamp |
9 J |
| E4e3 |
Right backup lamp |
14 J |
| N10/8 |
Rear SAM control module |
7 D |
| N73 |
EIS [EZS] control unit |
4 A |
| N93 |
Central gateway control module |
2 D |
| X58/11 |
Trailer hitch socket (7-pin) |
7 H |
