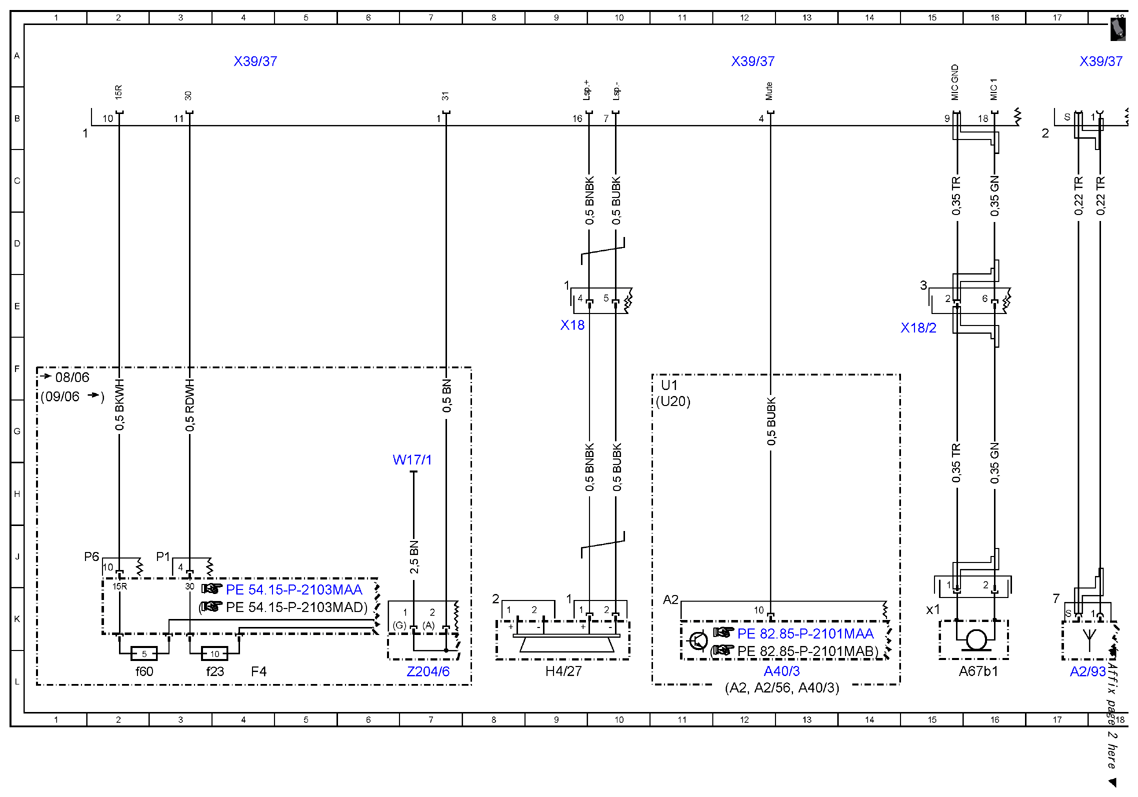

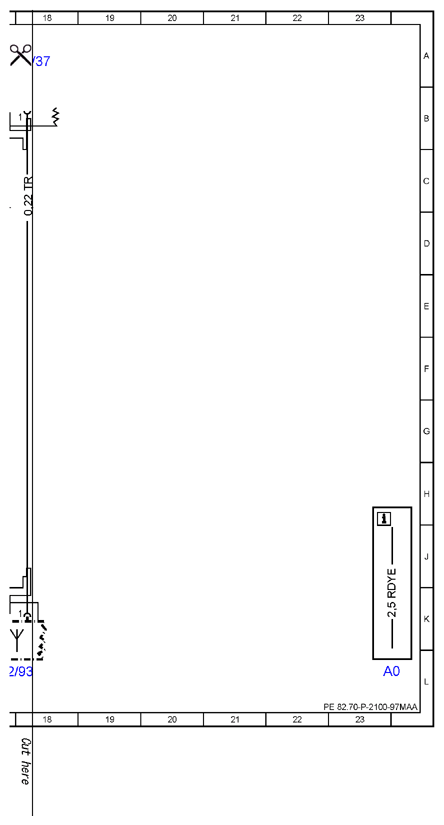

| A0 |
Color code key |
23L |
| A2 |
Radio |
12L |
| A2/56 |
Radio and navigation unit |
12L |
| A2/93 |
Roof antenna module |
17L |
| A40/3 |
COMAND operating, display and control unit |
12L |
| A40/3 |
COMAND operating, display and control unit |
12L |
| A67b1 |
Hands-free system microphone group |
16L |
| A67b1x1 |
Hands-free system microphone group connector |
15K |
| F4 |
Load compartment fuse and relay box |
4L |
| F4f23 |
Fuse 23 |
4L |
| F4f60 |
Fuse 60 |
2L |
| H4/27 |
Center cockpit speaker (centerfill) |
9L |
| U1 |
Valid for USA |
11F |
| U20 |
Valid for all (except USA Japan) |
11G |
| W17/1 |
Ground (left rear seat) |
7H |
| X18 |
Interior/cockpit connector |
9E |
| X18/2 |
Interior/roof connector |
15E |
| X39/37 |
CTEL separation point |
4A |
| X39/37 |
CTEL separation point |
12A |
| X39/37 |
CTEL separation point |
18A |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
7L |
