| A0 |
Color code key |
40L |
| A2/64 |

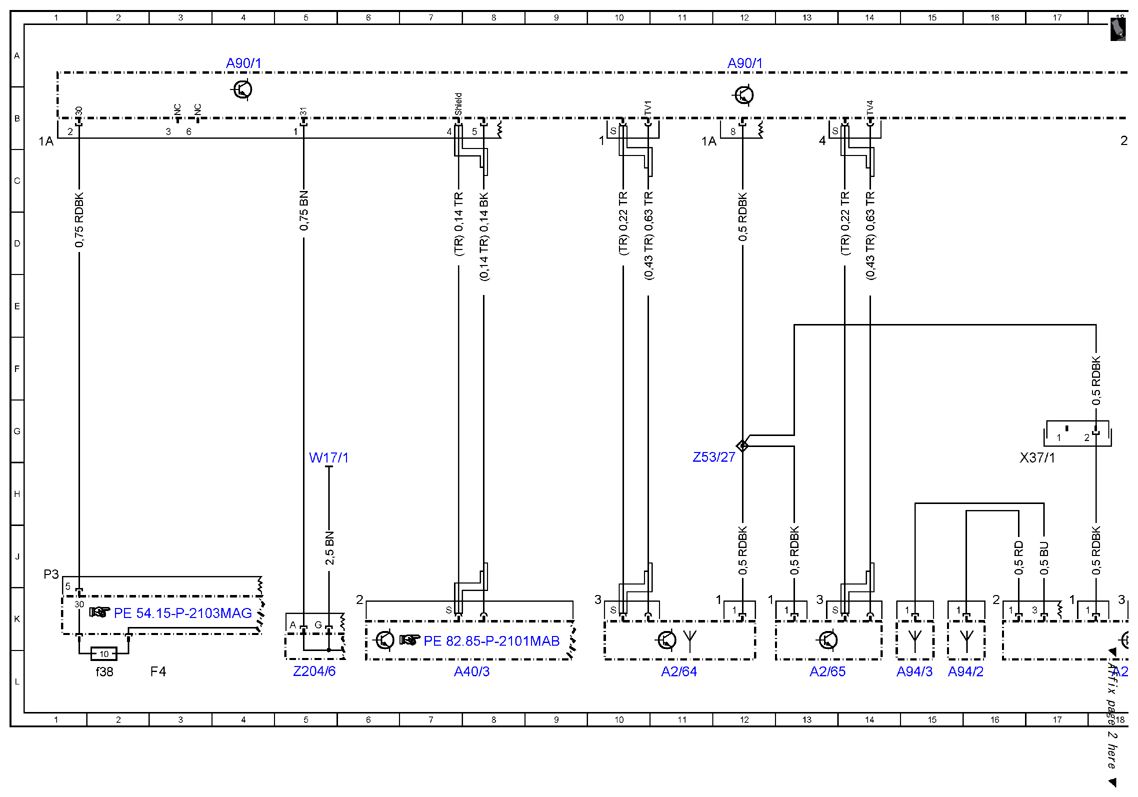

Left antenna amplifier module |
11L |
| A2/65 |
Right antenna amplifier module |
13L |
| A2/92 |
TV rear window antenna amplifier |
18L |
| A40/3 |
COMAND operating, display and control unit |
8L |
| A40/4 |
DVD player |
23L |

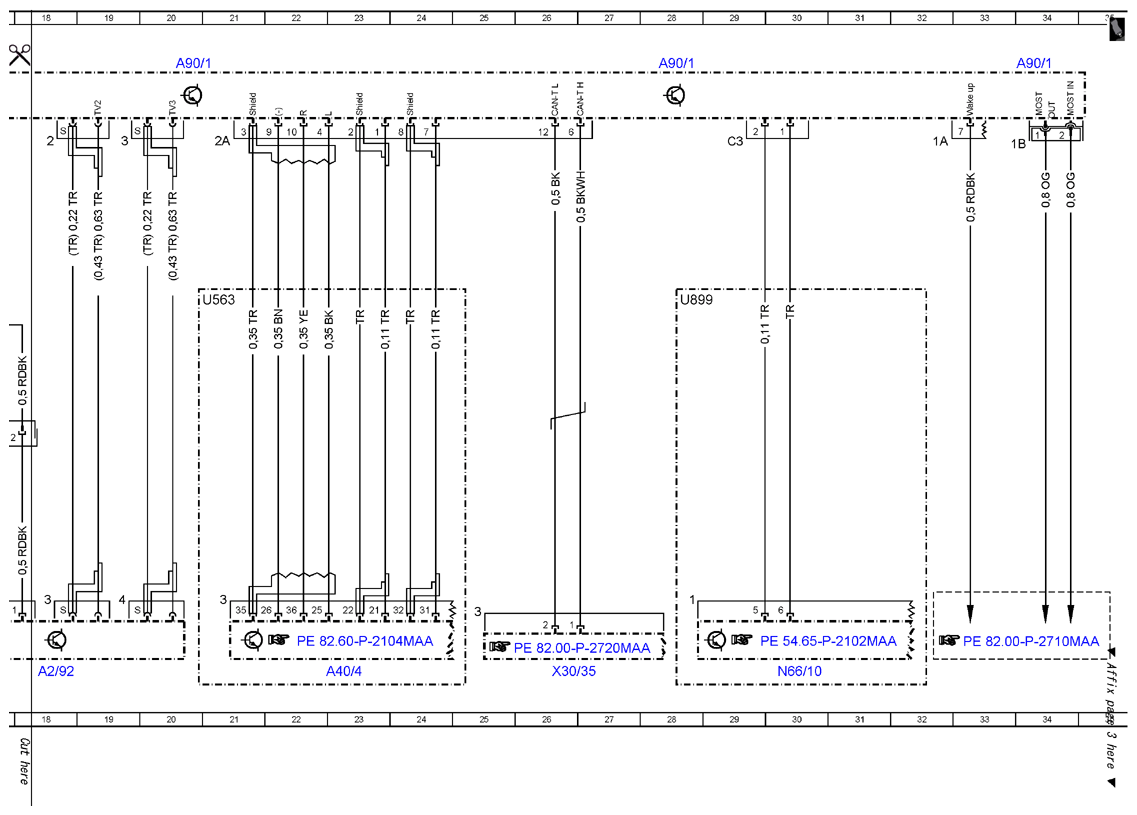

| A90/1 |
TV combination tuner (analog/digital) |
20A |
| A90/1 |
TV combination tuner (analog/digital) |
4A |
| A90/1 |
TV combination tuner (analog/digital) |
12A |
| A90/1 |
TV combination tuner (analog/digital) |
28A |
| A90/1 |
TV combination tuner (analog/digital) |
34A |
| A94/2 |
TV antenna 2 |
15L |
| A94/3 |
TV antenna 3 |
15L |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f38 |
Fuse 38 |
2L |
| MOST |
Media Oriented System Transport |
34B |
| N66/10 |
Backup camera voltage supply module |
30L |
| U563 |
Valid for rear entertainment (DVD) |
21E |
| U899 |
Valid for backup camera |
28E |
| W17/1 |
Ground (left rear seat) |
5H |
| X30/35 |
Telematics CAN voltage distributor connector |
26L |
| X37/1 |
Antenna amplifier intermediate connector |
17H |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector |
5L |
| Z53/27 |
TV amplifier supply |
12G |
