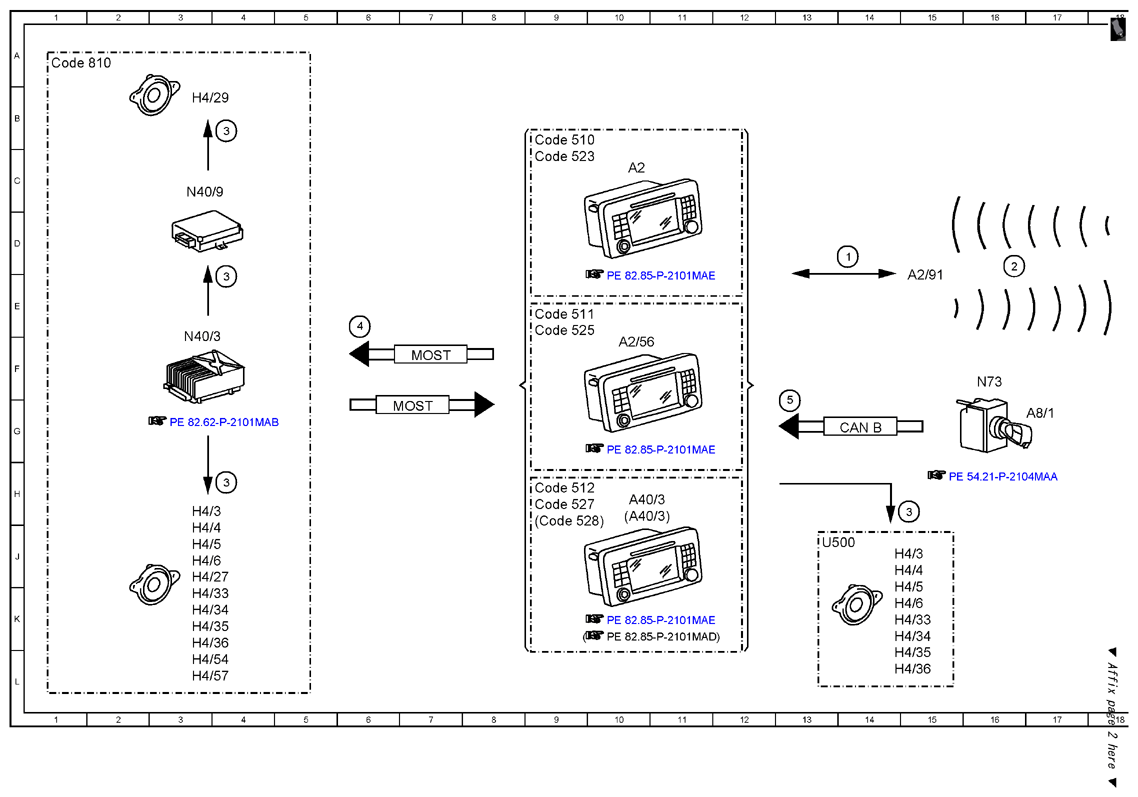

| 1 |
Telephone, signal |
20F |
| 1 |
Telephone, signal |
14D |
| 1 |
Telephone, signal |
21H |
| 1 |
Telephone, signal |
22H |
| 1 |
Telephone, signal |
23F |
| 1 |
Telephone, signal |
23G |
| 2 |
Bluetooth, signal |
16D |
| 3 |
Voice output, signal |
4H |
| 3 |
Voice output, signal |
4E |
| 3 |
Voice output, signal |
4B |
| 3 |
Voice output, signal |
15H |
| 4 |
Sound system amplifier, actuation |
5E |
| 5 |
Circuit 15R, status |
13F |
| A2 |
Radio |
10C |
| A2/53 |
Telephone/portable CTEL/STH radio remote control antenna splitter |
23H |
| A2/56 |
Radio and navigation unit |
10F |
| A2/91 |
Bluetooth antenna |
15E |
| A2/93a3 |
Telephone antenna |
23F |

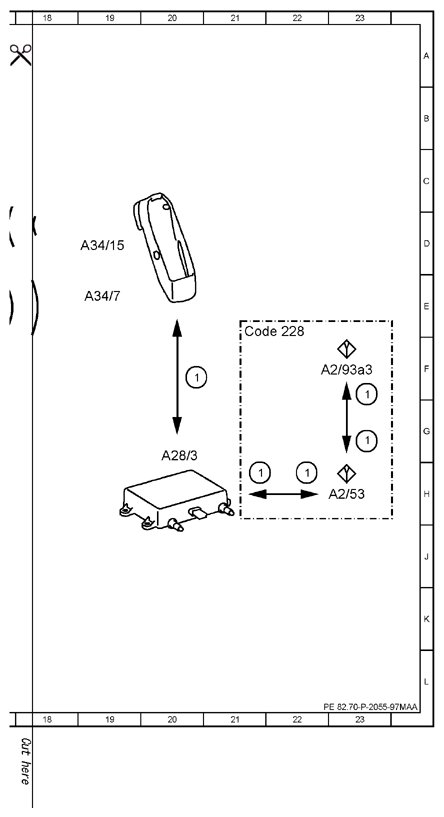

| A28/3 |
E-net compensator |
20G |
| A34/15 |
UHI portable CTEL holder (Universal Handy Interface) |
19D |
| A34/7 |
Bluetooth module |
19E |
| A40/3 |
COMAND operating, display and control unit |
10H |
| A8/1 |
Transmitter key |
17G |
| CAN B |
Interior CAN |
14F |
| Code 228 |
Stationary heater |
22E |
| Code 510 |
Audio 20 with CD changer |
9B |
| Code 511 |
Audio 50 APS incl. DVD changer |
9E |
| Code 512 |
COMAND APS with DVD changer |
9H |
| Code 523 |
Audio 20 radio |
9B |
| Code 525 |
Audio 50 APS radio (CD) |
9E |
| Code 527 |
COMAND APS (with navigation) |
9H |
| Code 528 |
HIGH Class USA |
9H |
| Code 810 |
Sound system |
2A |
| H4/27 |
Center cockpit speaker (centerfill) |
3J |
| H4/29 |
Subwoofer |
3B |
| H4/3 |
Left rear door speaker |
3H |
| H4/3 |
Left rear door speaker |
14J |
| H4/33 |
Left front door tweeter |
3K |
| H4/33 |
Left front door tweeter |
14K |
| H4/34 |
Right front door tweeter |
3K |
| H4/34 |
Right front door tweeter |
14K |
| H4/35 |
Left rear door tweeter |
3K |
| H4/35 |
Left rear door tweeter |
14L |
| H4/36 |
Right rear door tweeter |
3K |
| H4/36 |
Right rear door tweeter |
14L |
| H4/4 |
Right rear door speaker |
3J |
| H4/4 |
Right rear door speaker |
14J |
| H4/5 |
Left front door speaker |
3J |
| H4/5 |
Left front door speaker |
14K |
| H4/54 |
Left rear surround speaker |
3L |
| H4/57 |
Right rear surround speaker |
3L |
| H4/6 |
Right front door speaker |
3J |
| H4/6 |
Right front door speaker |
14K |
| MOST |
Media Oriented System Transport |
7E |
| MOST |
Media Oriented System Transport |
7F |
| N40/3 |
Amplifier for sound system |
3F |
| N40/9 |
Subwoofer amplifier |
3C |
| N73 |
EIS [EZS] control unit |
16F |
| U500 |
Not valid for Sound System |
13J |
