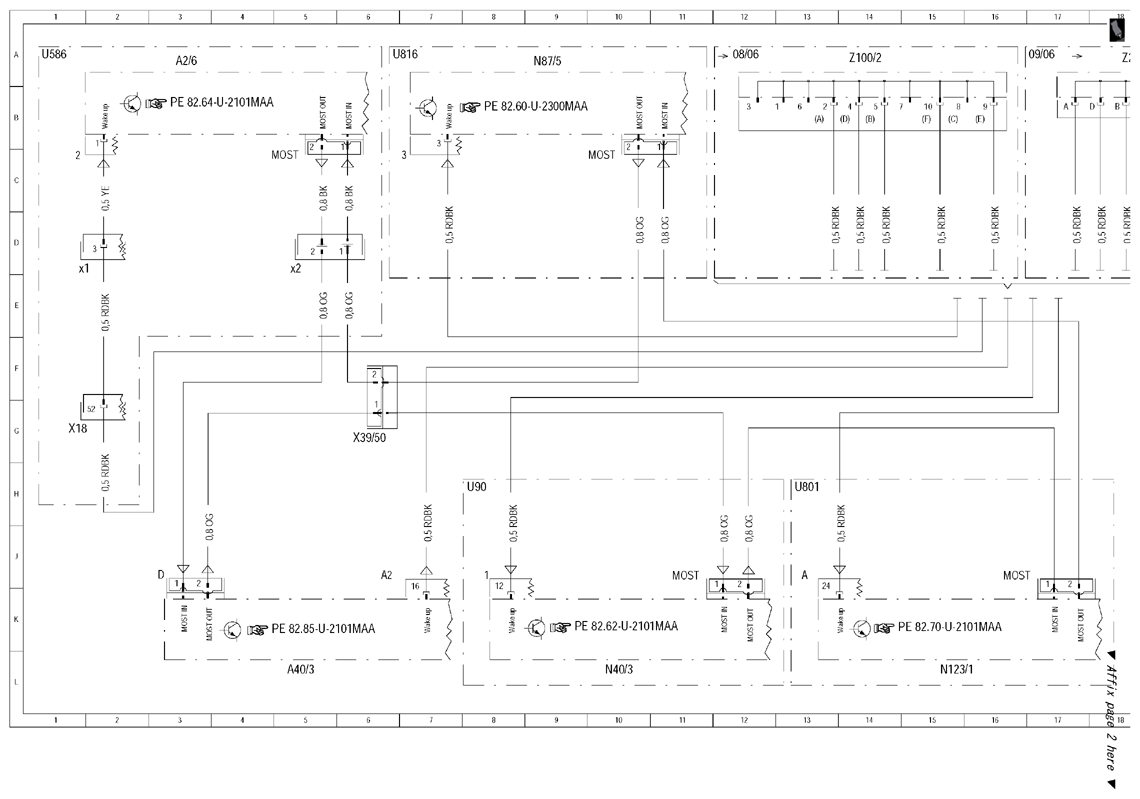

| A2/6 |
CD changer |
3 A |
| A2/6x1 |
CD changer connector 1 |
1 E |
| A2/6x2 |
CD changer 2 connector |
5 E |
| A40/3 |
COMAND operating, display and control unit |
5 L |
| MOST |
Media Oriented System Transport |
4 C |
| MOST |
Media Oriented System Transport |
9 C |
| MOST |
Media Oriented System Transport |
11 J |
| MOST |
Media Oriented System Transport |
16 J |
| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control unit |
15 L |
| N40/3 |
Amplifier for sound system |
10 L |
| N87/5 |
SDAR control unit |
9 A |
| U586 |
Valid for CD changer |
1 A |
| U801 |
Valid for UHI (Universal Portable CTEL Interface) |
13 H |
| U816 |
Valid for satellite radio (SDAR) |
6 A |
| U90 |
Valid for Sound System |
8 H |
| X18 |
Interior/cockpit connector |
1 G |
| X39/50 |
Fiber optical cable connector (MOST) |
6 G |
| Z100/2 |
Wake-up signal connector sleeve |
14 A |

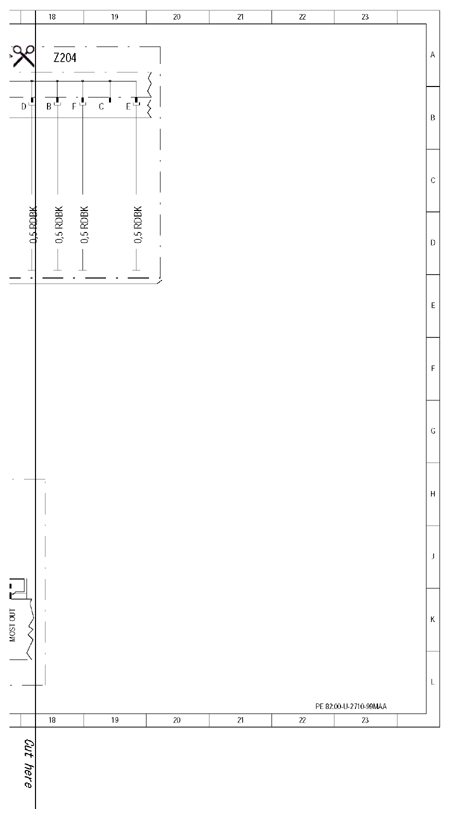

| Z204 |
Wake-up signal/circuit 58d voltage distributor connector |
18 A |
