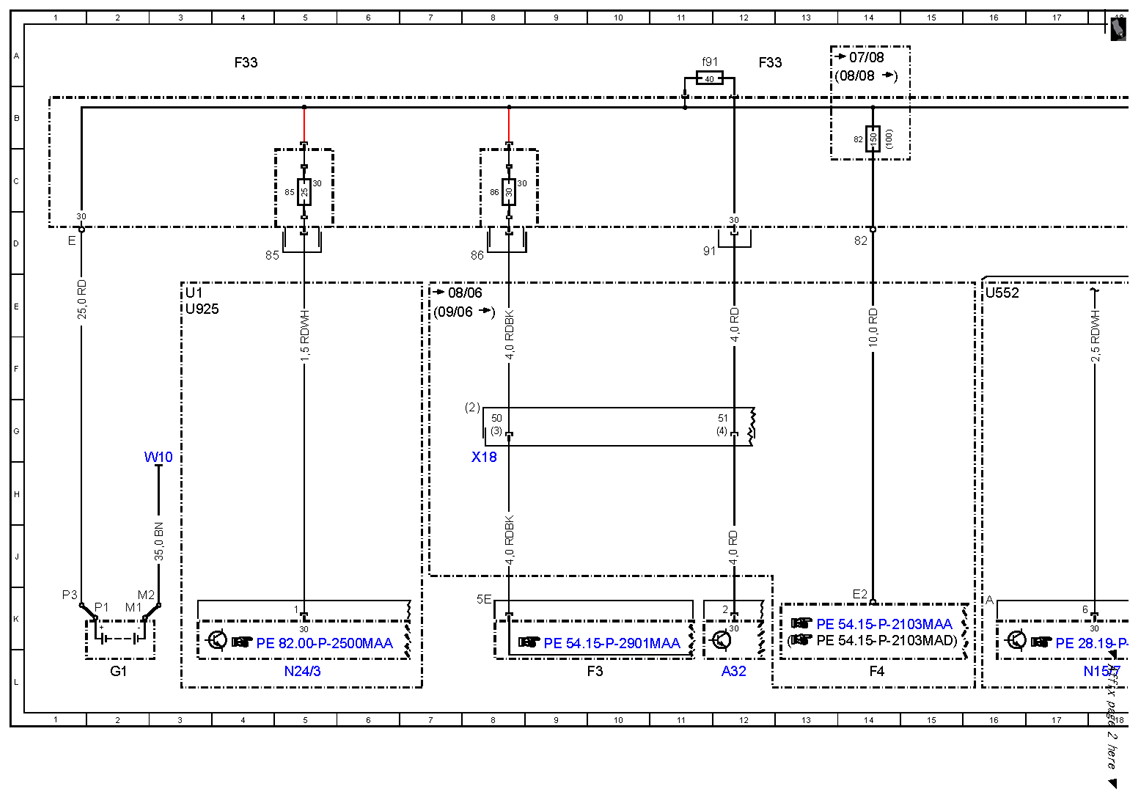

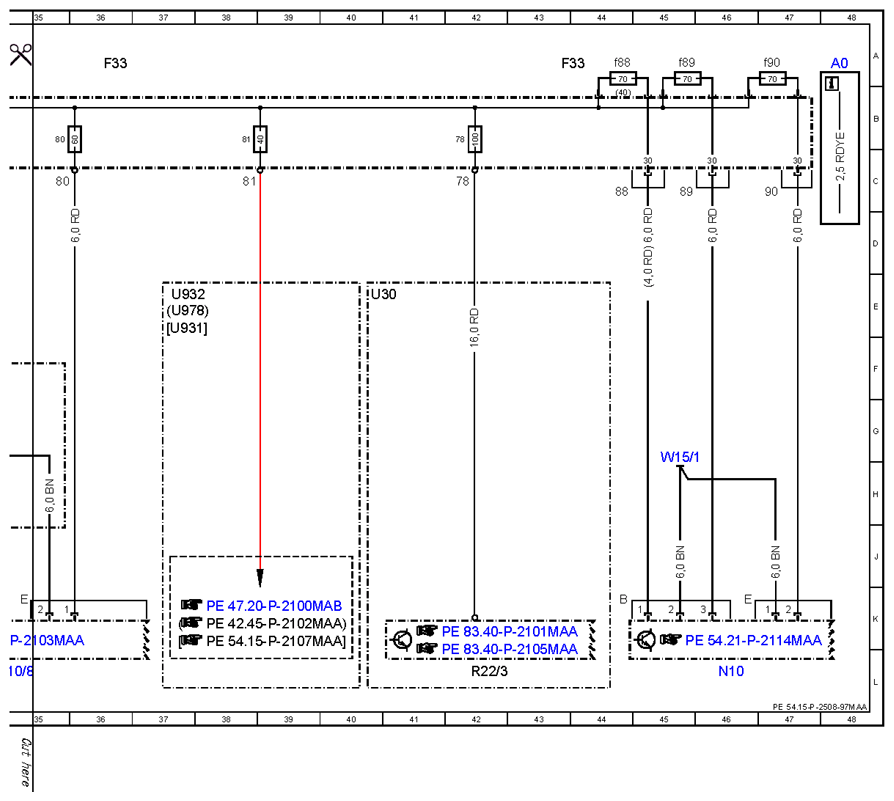

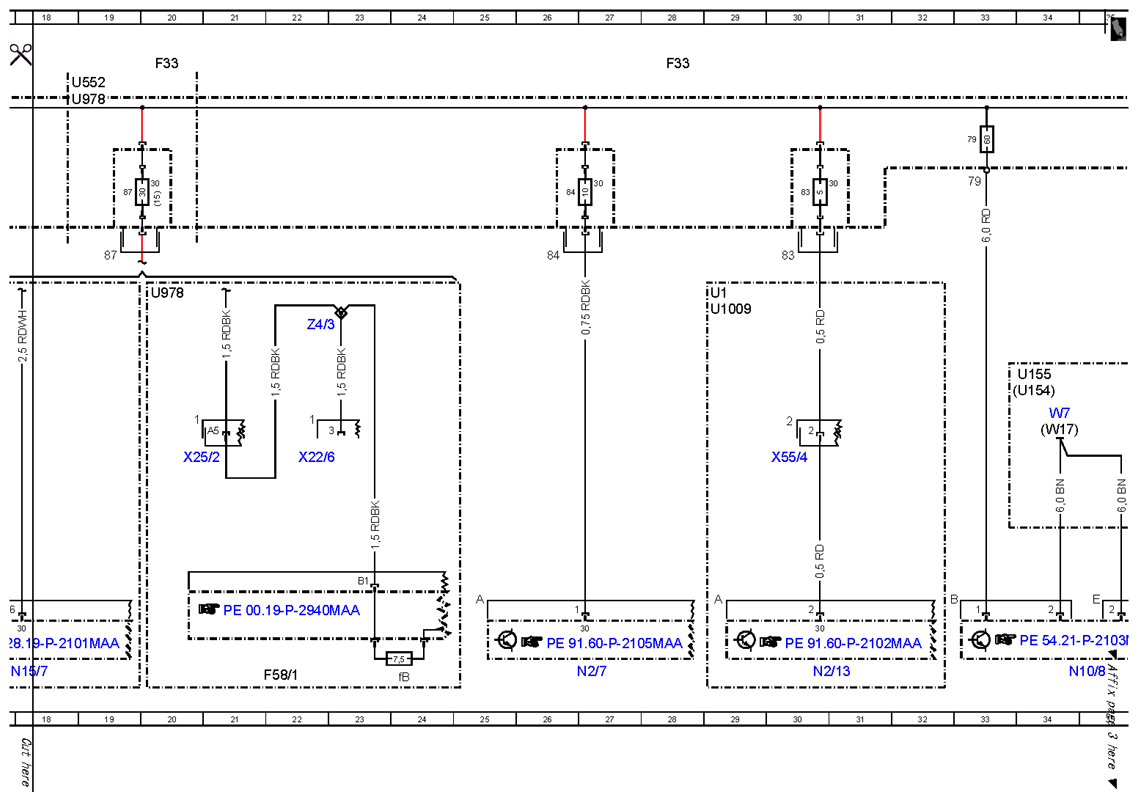

| A0 |
Color code key |
48A |
| A32 |
AC air recirculation unit |
12L |
| F3 |
Cockpit fuse box |
10L |
| F33 |
Battery compartment prefuse box |
4A |
| F33 |
Battery compartment prefuse box |
12A |
| F33 |
Battery compartment prefuse box |
20A |
| F33 |
Battery compartment prefuse box |
28A |
| F33 |
Battery compartment prefuse box |
36A |
| F33 |
Battery compartment prefuse box |
43A |
| F33f78 |
Fuse 78 |
42B |
| F33f79 |
Fuse 79 |
33B |
| F33f80 |
Fuse 80 |
35B |
| F33f81 |
Fuse 81 |
38B |
| F33f82 |
Fuse 82 |
14B |
| F33f83 |
Fuse 83 |
30C |
| F33f84 |
Fuse 84 |
26C |
| F33f85 |
Fuse 85 |
5C |
| F33f86 |
Fuse 86 |
8C |
| F33f87 |
Fuse 87 |
19C |
| F33f88 |
Fuse 88 |
44A |
| F33f89 |
Fuse 89 |
45A |
| F33f90 |
Fuse 90 |
47A |
| F33f91 |
Fuse 91 |
11A |
| F4 |
Load compartment fuse and relay box |
14L |
| F58/1 |
Engine compartment fuse and relay box 2 |
22L |
| F58/1fB |
Fuse B |
24L |
| G1 |
Battery |
2L |
| N10 |
Front SAM control unit |
46L |
| N10/8 |
Rear SAM control unit |
34L |
| N15/7 |
Transfer case control unit |
18L |
| N2/13 |
WSS (Weight Sensing System) control unit |
30L |
| N2/7 |
Restraint systems control unit |
27L |
| N24/3 |
DC/AC converter control unit (115V socket) |
5L |
| R22/3 |
PTC heater booster |
42L |
| U1 |
Valid for {{USA}} |
3E |
| U1 |
Valid for {{USA}} |
29E |
| U1009 |
Not valid for Mexico |
29E |
| U154 |
Valid for 164.1 |
34F |
| U155 |
Valid for 164.8 |
34F |
| U30 |
Valid for heater booster |
40E |
| U552 |
Valid for offroad package |
16E |
| U552 |
Valid for offroad package |
18B |
| U925 |
Valid for 115V socket |
3E |
| U931 |
Not valid for engine 642 BLUETEC |
37F |
| U932 |
Valid for engine 642 BLUETEC |
37E |
| U978 |
Valid for full hybrid drive |
20E |
| U978 |
Valid for full hybrid drive |
18B |
| U978 |
Valid for full hybrid drive |
37E |
| W10 |
Ground (battery) |
3G |
| W15/1 |
Ground (right footwell) |
45H |
| W17 |
Ground (right rear seat) |
34G |
| W7 |
Ground (right wheelhouse in luggage compartment) |
34G |
| X18 |
Interior/cockpit connector |
8G |
| X22/6 |
Automatic transmission/intelligent servo module connector |
22G |
| X25/2 |
Engine compartment/interior compartment connector |
20G |
| X55/4 |
Right front seat contacting strip |
30G |
| Z4/3 |
Tml. 30 connector sleeve |
22E |
