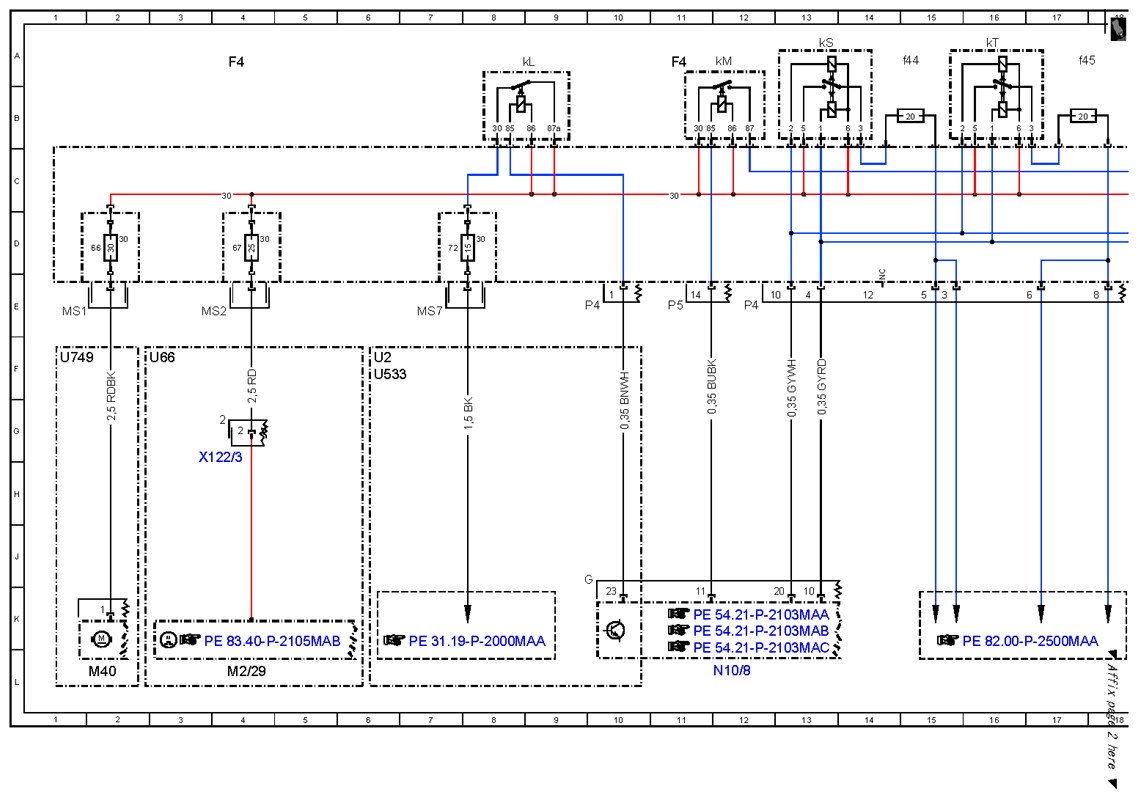

| A0 |
Color code key |
64L |
| F4 |
Load compartment fuse and relay box |
4A |
| F4 |
Load compartment fuse and relay box |
11A |
| F4 |
Load compartment fuse and relay box |
21A |
| F4 |
Load compartment fuse and relay box |
28A |
| F4 |
Load compartment fuse and relay box |
36A |
| F4 |
Load compartment fuse and relay box |
44A |
| F4 |
Load compartment fuse and relay box |
51A |
| F4 |
Load compartment fuse and relay box |
60A |

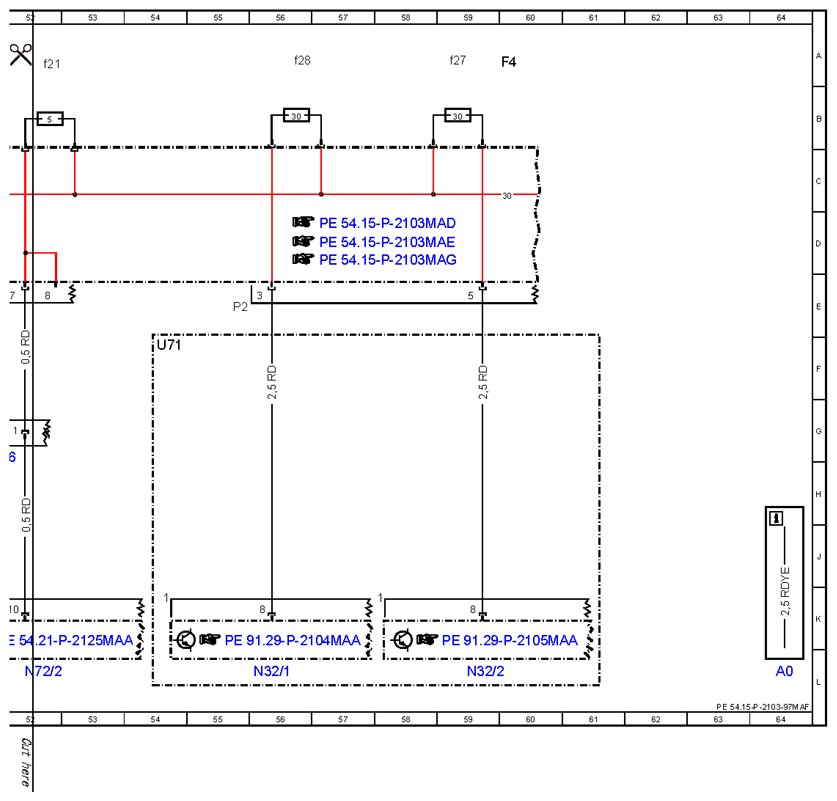

| F4f21 |
Fuse 21 |
52A |
| F4f27 |
Fuse 27 |
59A |
| F4f28 |
Fuse 28 |
56A |
| F4f31 |
Fuse 31 |
45A |

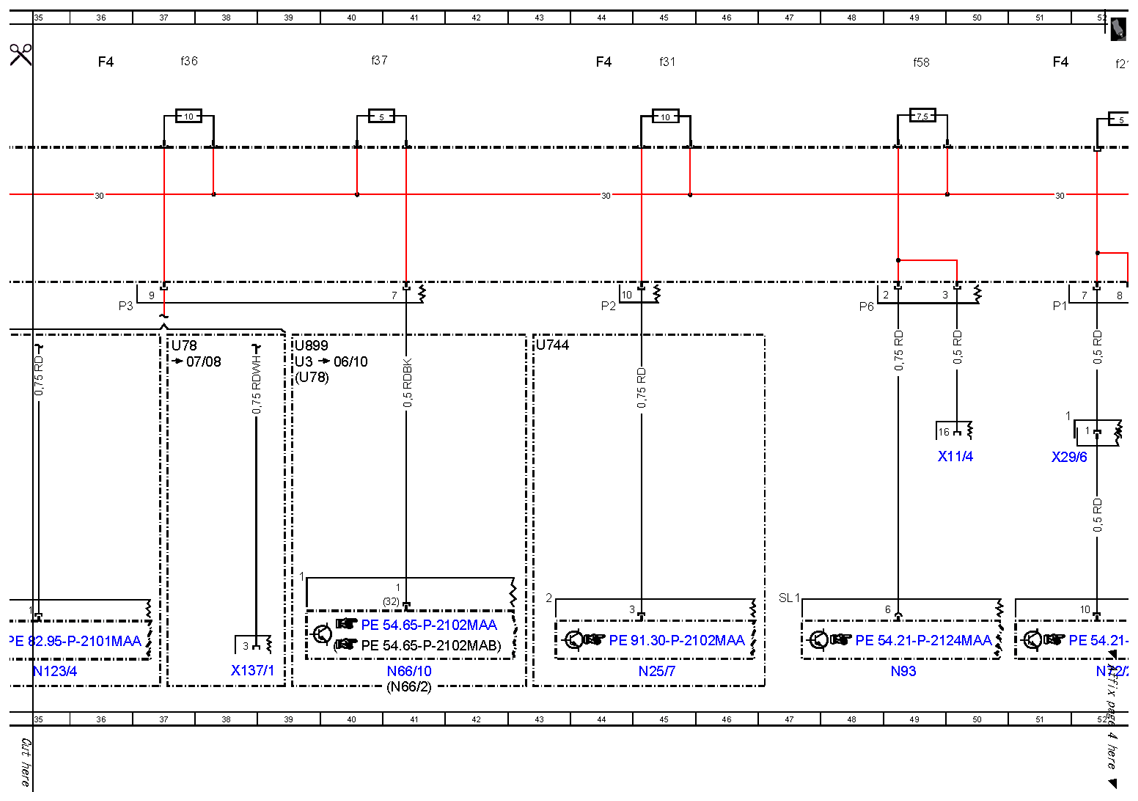

| F4f35 |
Fuse 35 |
29A |
| F4f36 |
Fuse 36 |
37A |
| F4f37 |
Fuse 37 |
40A |
| F4f44 |
Fuse 44 |
15A |
| F4f45 |
Fuse 45 |
17A |
| F4f49 |
Fuse 49 |
22A |
| F4f58 |
Fuse 58 |
49A |
| F4f66 |
Fuse 66 |
2D |
| F4f67 |
Fuse 67 |
4D |
| F4f70 |
Fuse 70 |
20D |
| F4f71 |
Fuse 71 |
21D |
| F4f72 |
Fuse 72 |
7D |

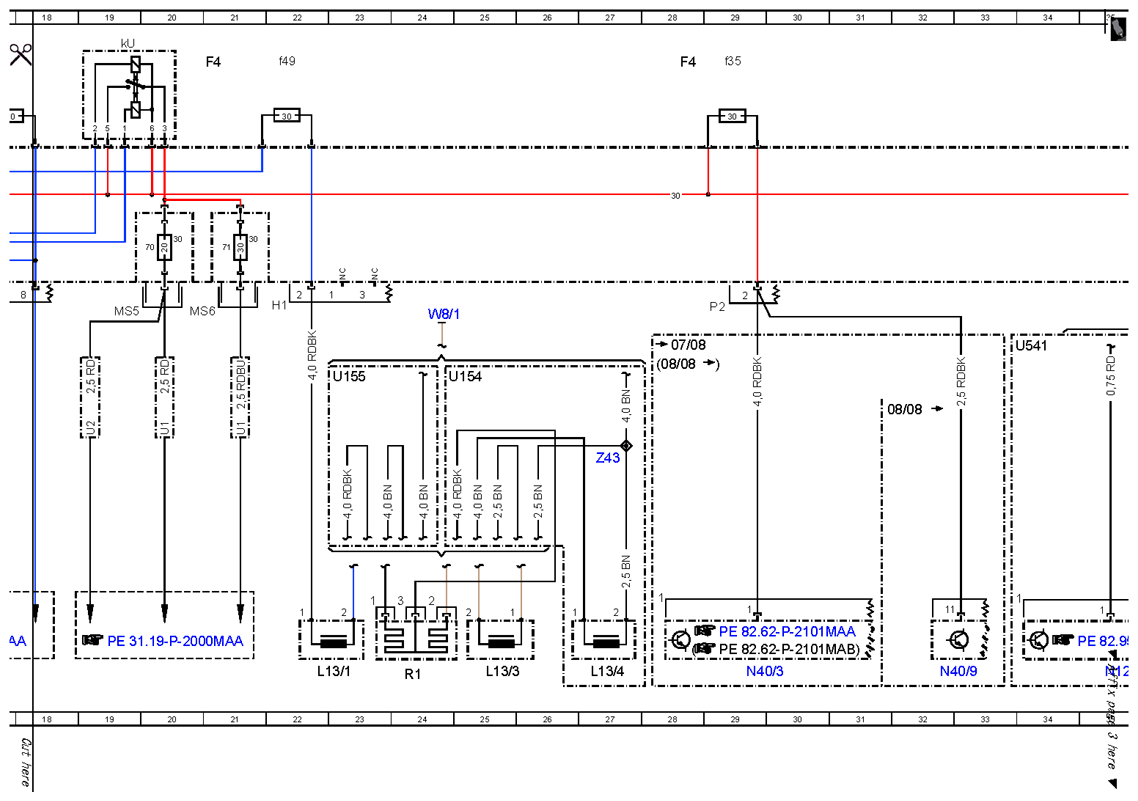

| F4kL |
Trailer circuit 30X relay |
9A |
| F4kM |
Heated rear window relay |
12A |
| F4kS |
Spare 1 (changeover contact) |
13A |
| F4kT |
Spare 2 (normally open contact) |
16A |
| F4kU |
Trailer circuit 30 relay |
19A |
| L13/1 |
Right antenna coil |
22L |
| L13/3 |
Left antenna coil (2) |
25L |
| L13/4 |
Left antenna coil (1) |
27L |
| M2/29 |
Rear air conditioning blower motor |
4L |
| M40 |
Multicontour seat pneumatic pump |
2L |
| N10/8 |
Rear SAM control unit |
12L |
| N123/4 |
Emergency call system control unit |
35L |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
45L |
| N32/1 |
Driver front seat adjustment control unit with memory |
56L |
| N32/2 |
Front passenger front seat adjustment control unit with memory |
59L |
| N40/3 |
Amplifier for sound system |
29L |
| N40/9 |
Subwoofer amplifier |
32L |
| N66/10 |
Backup camera voltage supply module |
41L |
| N66/2 |
Backup camera control unit |
41L |
| N72/2 |
RCP [HBF] control unit |
52L |
| N93 |
Central gateway control unit |
49L |
| R1 |
Heated rear window |
24L |
| U154 |
Valid for 164.1 |
24F |
| U155 |
Valid for 164.8 |
23F |
| U2 |
Valid for all except{{USA}} |
6F |
| U3 |
Valid for all except {{Japan}} |
39F |
| U533 |
Valid for trailer hitch |
6F |
| U541 |
Valid for TELE AID emergency call system |
33F |
| U66 |
Valid for rear air conditioning |
3F |
| U71 |
Valid for seat adjustment with memory |
54F |
| U744 |
Valid for steering wheel heater |
43F |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
1F |
| U78 |
Valid for {{Japan}} |
37F |
| U78 |
Valid for {{Japan}} |
39F |
| U899 |
Valid for backup camera |
39F |
| W8/1 |
Ground (left rear-end door) |
24E |
| X11/4 |
Data link connector |
50G |
| X122/3 |
Rear AC connector |
4H |
| X137/1 |
VICS+ETC voltage supply separation point |
38L |
| X29/6 |
Center console intermediate connector |
51H |
| Z43 |
Heated rear window connector sleeve |
27H |
