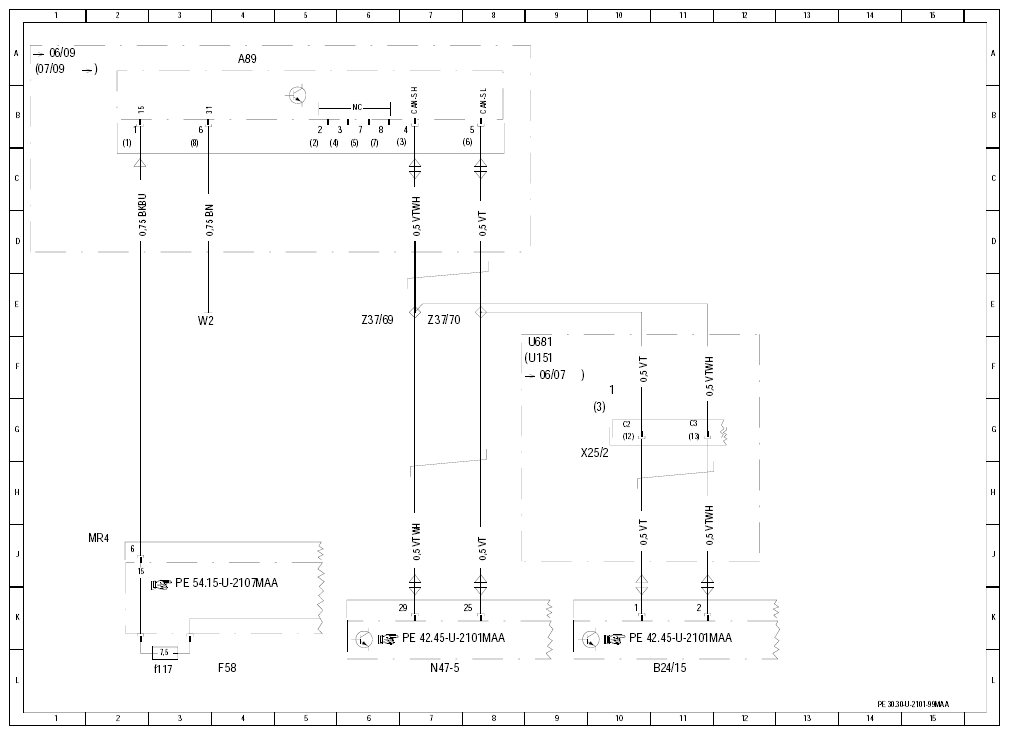

Wiring diagram Distronic (DTR) control module - PE30.30-U-2101-99MAA
| Code: | Designation: | Position: |
|---|---|---|
| A89 | DTR control unit | 4 A |
| B24/15 | Micromechanical yaw rate sensor AY pickup | 11 L |
| F58 | Engine compartment fuse and relay box | 4 L |
| F58f117 | Fuse 117 | 2 L |
| N47-5 | ESP control unit | 7 L |
| U151 | Valid for engine 113 | 9 F |
| U681 | Valid for all except M113 | 9 F |
| W2 | Ground (right front, at lamp unit) | 3 E |
| X25/2 | Engine compartment/interior compartment connector | 9 H |
| Z37/69 | Dynamic CAN bus (high) connector sleeve | 6 E |
| Z37/70 | Dynamic CAN bus (low) connector sleeve | 7 E |
