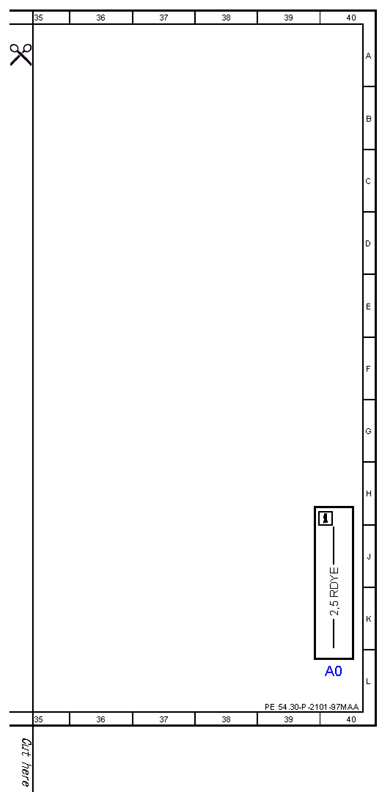

| A0 |
Color code key |
40L |

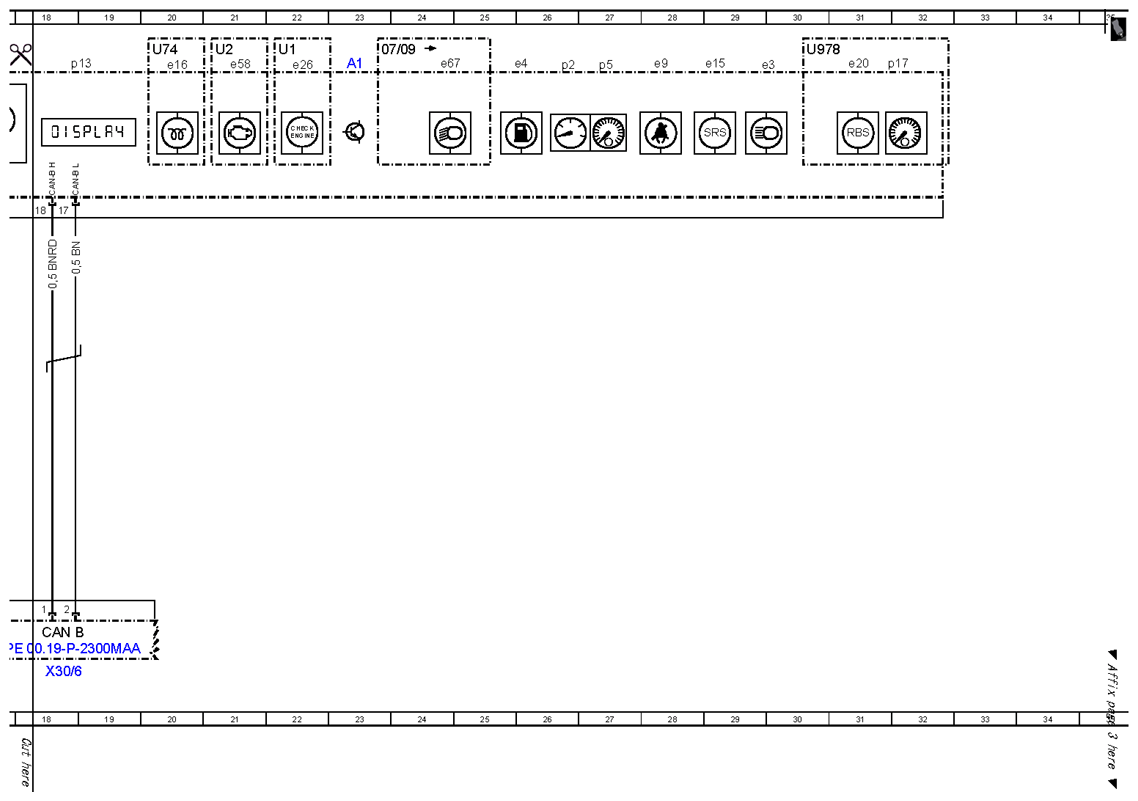

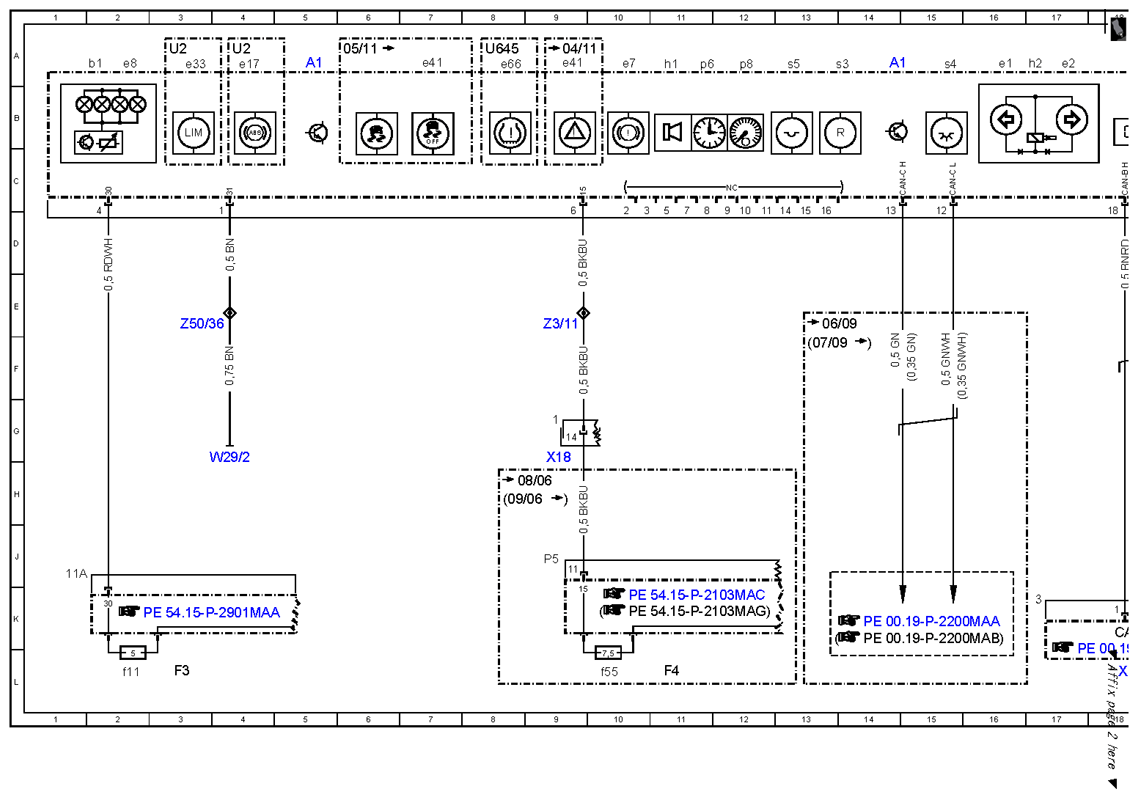

| A1 |
Instrument cluster |
5A |
| A1 |
Instrument cluster |
14A |
| A1 |
Instrument cluster |
23A |
| A1b1 |
Brightness sensor |
2A |
| A1e1 |
Left turn signal indicator lamp |
16A |
| A1e15 |
Airbag indicator and warning lamp |
29A |
| A1e16 |
Preglow indicator lamp |
20A |
| A1e17 |
ABS indicator lamp |
4A |
| A1e2 |
Right turn signal indicator lamp |
17A |
| A1e20 |
Regenerative braking system indicator lamp |
31A |
| A1e26 |
"CHECK ENGINE" MIL |
22A |
| A1e3 |
High beam indicator lamp |
29A |
| A1e33 |
LIM (variable speed limiter) function indicator lamp |
3A |
| A1e4 |
Fuel reserve indicator lamp |
26A |
| A1e41 |
ESP warning lamp |
9A |
| A1e41 |
ESP warning lamp |
7A |
| A1e58 |
Engine diagnosis indicator lamp |
21A |
| A1e66 |
Tire pressure monitor warning lamp |
8A |
| A1e67 |
Low beam indicator lamp |
24A |
| A1e7 |
Brake fluid and parking brake warning lamp |
10A |
| A1e8 |
Instrument illumination |
2A |
| A1e9 |
Seat belt warning lamp |
28A |
| A1h1 |
Warning buzzer |
11A |
| A1h2 |
Audible turn signal indicator |
17A |
| A1p13 |
Multifunction display |
18A |
| A1p17 |
Power indicator |
32A |
| A1p2 |
Fuel level and reserve indicator |
26A |
| A1p5 |
Tachometer |
27A |
| A1p6 |
Electronic clock |
11A |
| A1p8 |
Electronic speedometer |
12A |
| A1s3 |
Trip odometer reset button |
14A |
| A1s4 |
Instrument and controls illumination button, bright |
15A |
| A1s5 |
Instrument and controls illumination button, dim |
13A |
| CAN B |
Interior CAN |
18K |
| F3 |
Cockpit fuse box |
3L |
| F3f11 |
Fuse 11 |
2L |
| F4 |
Load compartment fuse and relay box |
11L |
| F4f55 |
Fuse 55 |
10L |
| U1 |
Valid for {{USA}} |
22A |
| U2 |
Valid for all except{{USA}} |
3A |
| U2 |
Valid for all except{{USA}} |
21A |
| U2 |
Valid for all except{{USA}} |
4A |
| U645 |
Valid for tire pressure monitor system |
8A |
| U74 |
Valid for diesel engines |
20A |
| U978 |
Valid for full hybrid drive |
30A |
| W29/2 |
Ground (right A-pillar) |
4H |
| X18 |
Interior/cockpit connector |
9H |
| X30/6 |
Cockpit voltage distributor (CAN) connector |
18L |
| Z3/11 |
Circuit 15 (fused) connector sleeve |
9E |
| Z50/36 |
Circuit 31 (4) cockpit connector sleeve) |
3E |
