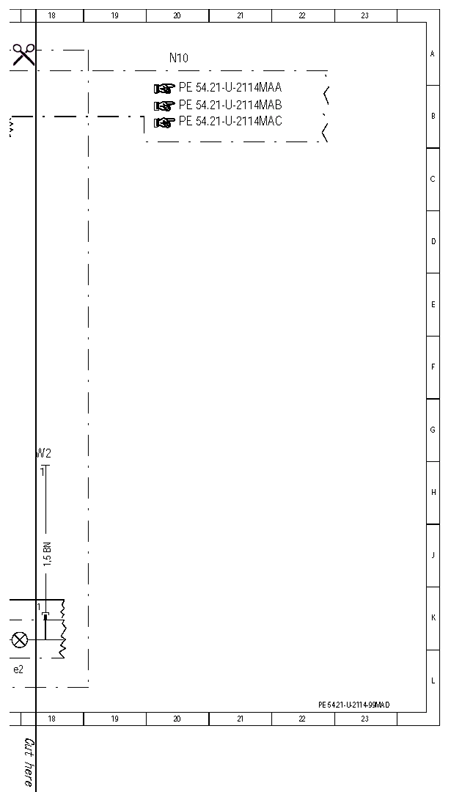

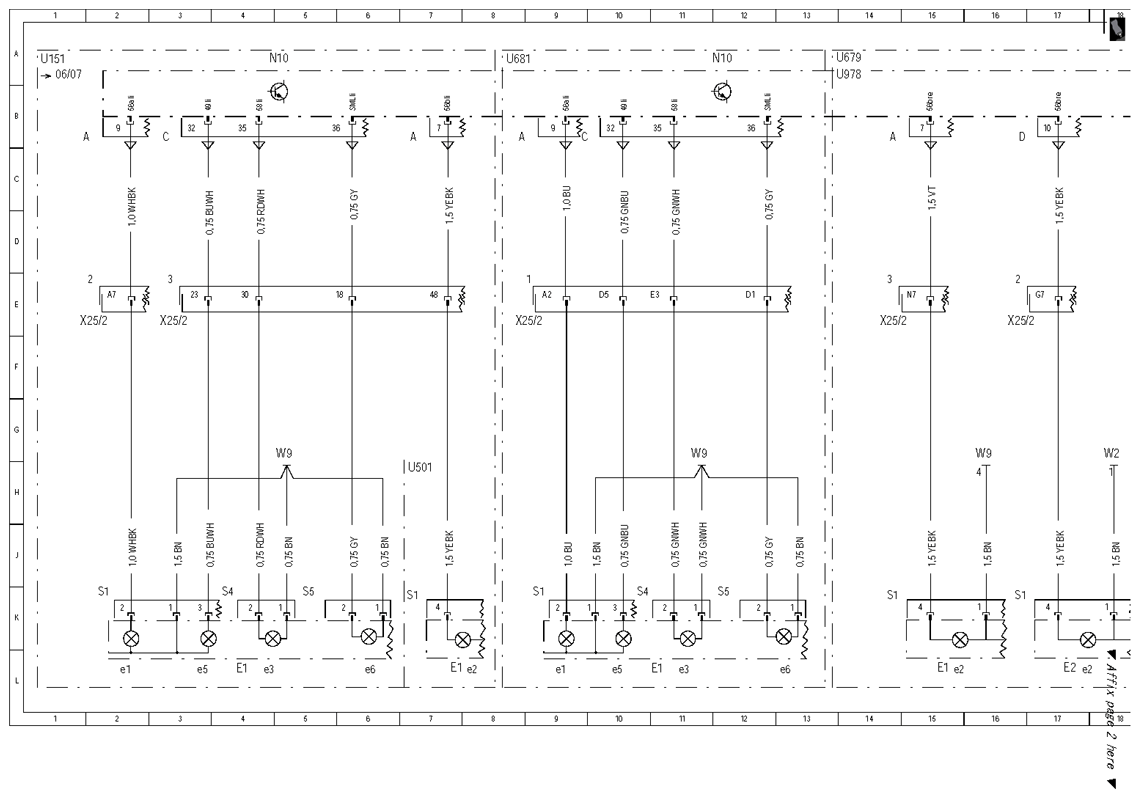

| E1 |
Left front lamp unit |
4 L |
| E1 |
Left front lamp unit |
7 L |
| E1 |
Left front lamp unit |
10 L |
| E1 |
Left front lamp unit |
15 L |
| E1e1 |
Left high beam |
2 L |
| E1e1 |
Left high beam |
9 L |
| E1e2 |
Left low beam |
7 L |
| E1e2 |
Left low beam |
15 L |
| E1e3 |
Left standing and parking lamp |
4 L |
| E1e3 |
Left standing and parking lamp |
11 L |
| E1e5 |
Left turn signal lamp |
3 L |
| E1e5 |
Left turn signal lamp |
10 L |
| E1e6 |
Left side-marker lamp |
6 L |
| E1e6 |
Left side-marker lamp |
12 L |
| E2 |
Right front lamp unit |
17 L |
| E2e2 |
Right low beam |
17 L |
| N10 |
Front SAM control unit |
4 A |
| N10 |
Front SAM control unit |
11 A |
| N10 |
Front SAM control unit |
20 A |
| U151 |
Valid for engine 113 |
1 A |
| U501 |
Valid for xenon headlamps |
7 H |
| U679 |
Valid for version without xenon headlamps |
13 A |
| U681 |
Valid for all except M113 |
8 A |
| U978 |
Valid for full hybrid drive |
13 A |
| W2 |
Ground (right front, at lamp unit) |
18 H |
| W9 |
Ground (left front, at lamp unit) |
5 H |
| W9 |
Ground (left front, at lamp unit) |
11 H |
| W9 |
Ground (left front, at lamp unit) |
16 H |
| X25/2 |
Engine compartment/interior compartment connector |
1 E |
| X25/2 |
Engine compartment/interior compartment connector |
3 E |
| X25/2 |
Engine compartment/interior compartment connector |
8 E |
| X25/2 |
Engine compartment/interior compartment connector |
14 E |
| X25/2 |
Engine compartment/interior compartment connector |
16 E |
