| A0 |
Color code key |
80L |

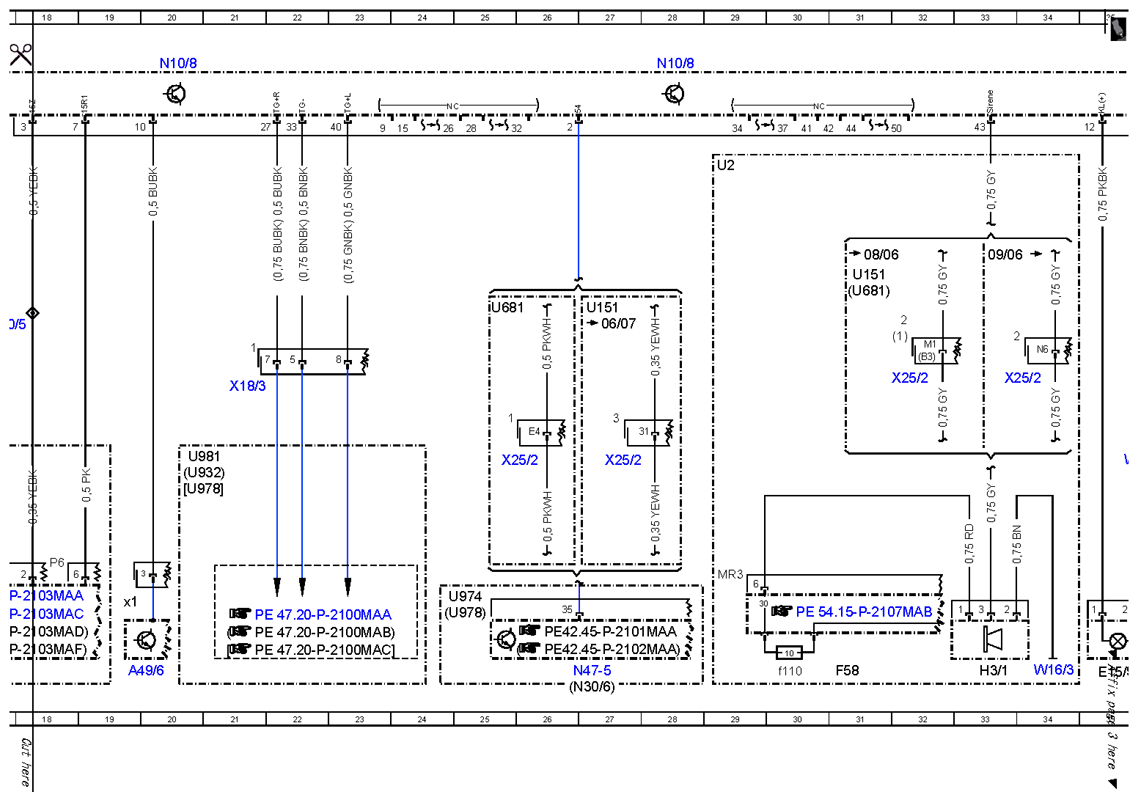

| A49/6 |
Radio antenna interference filter |
19L |
| A49/6x1 |
Radio antenna interference suppression filter electrical connector |
19K |
| B84/3 |
Backup camera |
51L |
| CAN B |
Interior CAN |
5K |

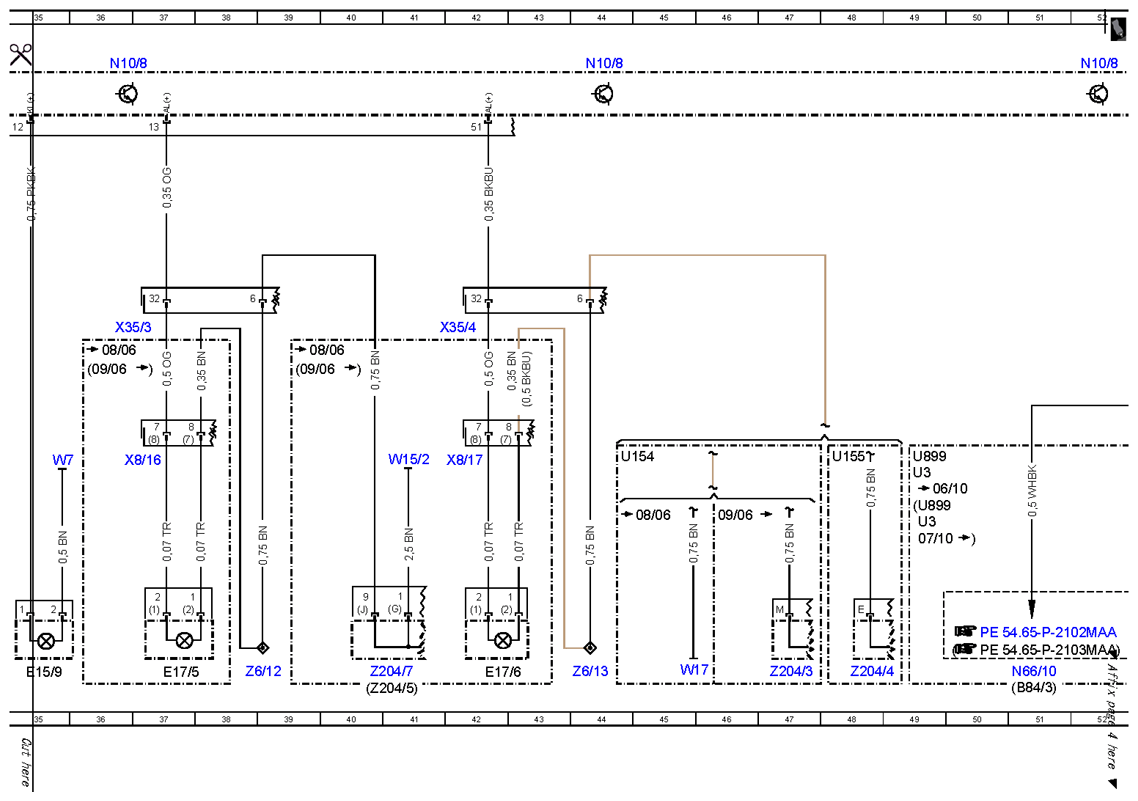

| E15/9 |
Right load compartment dome lamp |
35L |
| E17/27 |
Rear-end door warning lamp |
72L |
| E17/5 |
Left rear door entrance/exit lamp |
37L |
| E17/6 |
Right rear door entrance/exit lamp |
42L |
| E19/3 |
Left rear-end door license plate lamp |
74L |
| E19/4 |
Right rear-end door license plate lamp |
76L |
| E21 |
Center high-mounted stop lamp |
79L |

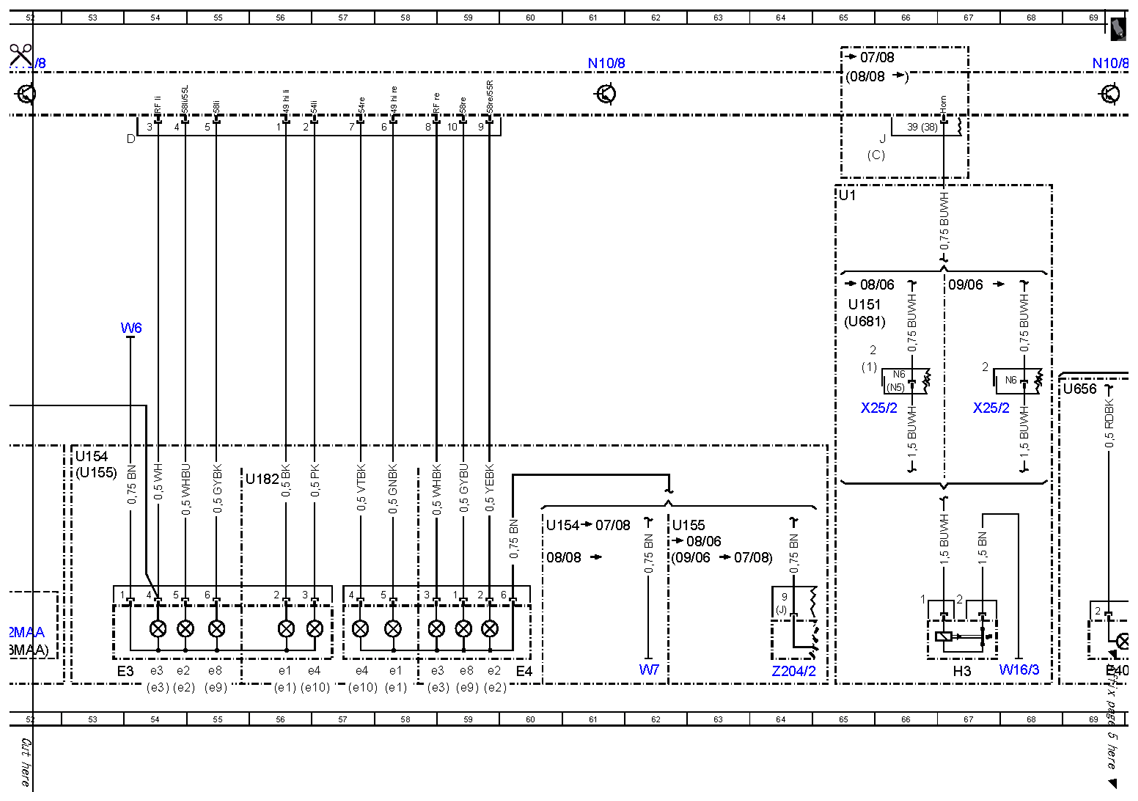

| E3 |
Left tail lamp |
53L |
| E3e1 |
Left turn signal lamp |
56L |
| E3e1 |
Left turn signal lamp |
56L |
| E3e10 |
Left brake light and taillight |
56L |
| E3e2 |
Left tail lamp and rear fog lamp |
54L |
| E3e2 |
Left tail lamp and rear fog lamp |
54L |
| E3e3 |
Left backup lamp |
54L |
| E3e3 |
Left backup lamp |
54L |
| E3e4 |
Left stop lamp |
56L |
| E3e8 |
Left tail lamp, side-marker lamp, parking lamp |
55L |
| E3e9 |
Left stop lamp, tail lamp, parking lamp and side-marker lamp |
55L |
| E4 |
Right tail lamp |
60L |

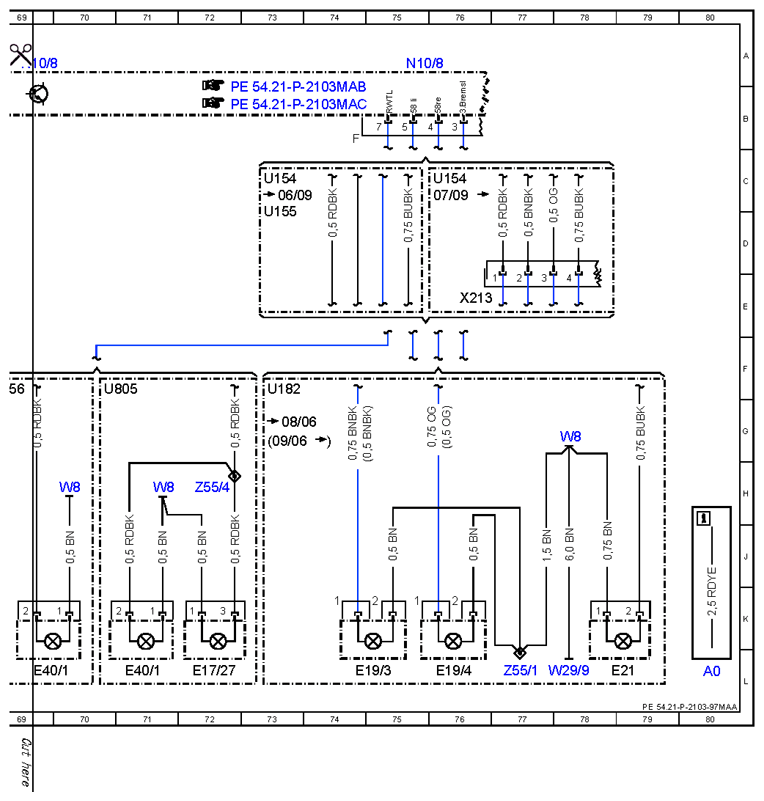

| E40/1 |
Rear-end door ambient lamp |
69L |
| E40/1 |
Rear-end door ambient lamp |
71L |
| E4e1 |
Right turn signal lamp |
58L |
| E4e1 |
Right turn signal lamp |
58L |
| E4e10 |
Right brake light and taillight |
57L |
| E4e2 |
Right tail lamp and rear fog lamp |
59L |
| E4e2 |
Right tail lamp and rear fog lamp |
59L |
| E4e3 |
Right backup lamp |
58L |
| E4e3 |
Right backup lamp |
58L |
| E4e4 |
Right stop lamp |
57L |
| E4e8 |
Right tail lamp, side-marker lamp, parking lamp |
59L |
| E4e9 |
Right stop lamp, tail lamp, parking lamp and side-marker lamp |
59L |

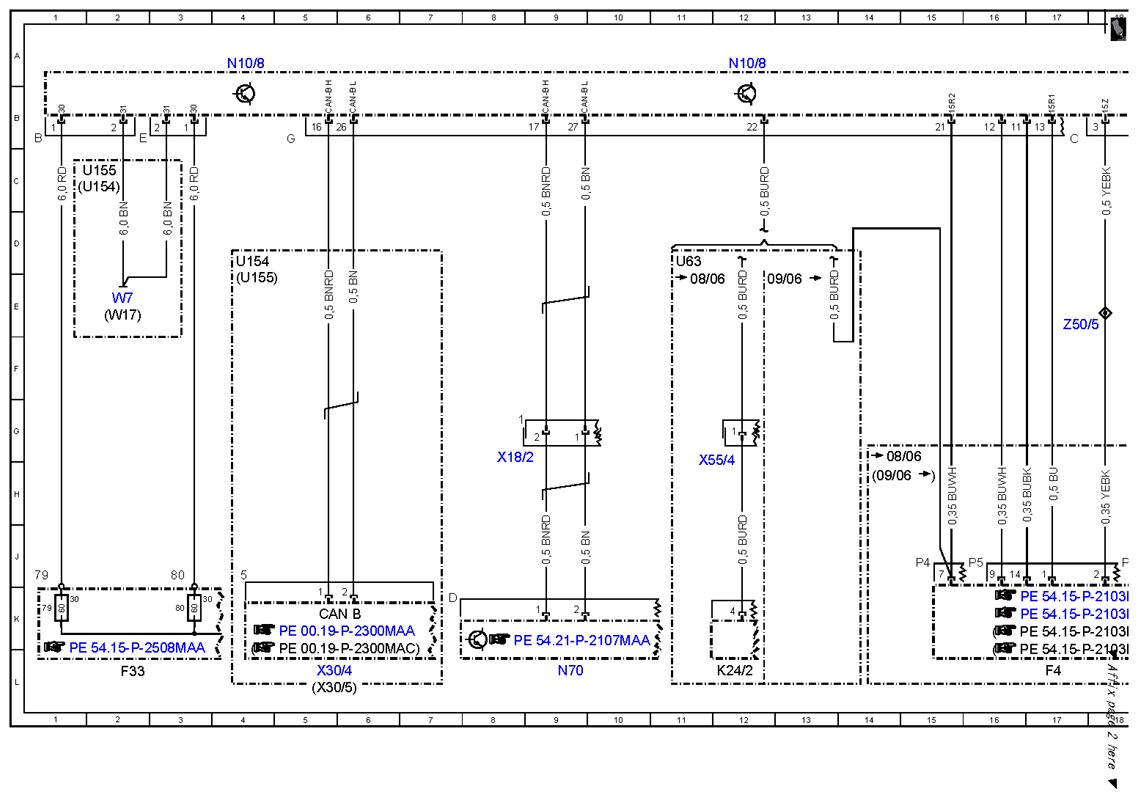

| F33 |
Battery compartment prefuse box |
2L |
| F33f79 |
Fuse 79 |
1K |
| F33f80 |
Fuse 80 |
3K |
| F4 |
Load compartment fuse and relay box |
17L |
| F58 |
Engine compartment fuse and relay box |
31L |
| F58f110 |
Fuse 110 |
30L |
| H3 |
Alarm signal horn |
67L |
| H3/1 |
Alarm signal siren |
33L |
| K24/2 |
Front passenger seat adjustment comfort relay |
12L |
| N10/8 |
Rear SAM control unit |
4A |
| N10/8 |
Rear SAM control unit |
12A |
| N10/8 |
Rear SAM control unit |
28A |
| N10/8 |
Rear SAM control unit |
20A |
| N10/8 |
Rear SAM control unit |
36A |
| N10/8 |
Rear SAM control unit |
44A |
| N10/8 |
Rear SAM control unit |
52A |
| N10/8 |
Rear SAM control unit |
61A |
| N10/8 |
Rear SAM control unit |
69A |
| N10/8 |
Rear SAM control unit |
75A |
| N30/6 |
Regenerative braking system control unit |
26L |
| N47-5 |
ESP control unit |
27L |
| N66/10 |
Backup camera voltage supply module |
51L |
| N70 |
Overhead control panel control unit |
9L |
| U1 |
Valid for {{USA}} |
65C |
| U151 |
Valid for engine 113 |
27E |
| U151 |
Valid for engine 113 |
31E |
| U151 |
Valid for engine 113 |
65E |
| U154 |
Valid for 164.1 |
4D |
| U154 |
Valid for 164.1 |
44G |
| U154 |
Valid for 164.1 |
53G |
| U154 |
Valid for 164.1 |
60J |
| U154 |
Valid for 164.1 |
73C |
| U154 |
Valid for 164.1 |
76C |
| U154 |
Valid for 164.1 |
1C |
| U155 |
Valid for 164.8 |
1C |
| U155 |
Valid for 164.8 |
48G |
| U155 |
Valid for 164.8 |
62J |
| U155 |
Valid for 164.8 |
73D |
| U155 |
Valid for 164.8 |
4E |
| U155 |
Valid for 164.8 |
53H |
| U182 |
Valid without spare tire carrier |
55H |
| U182 |
Valid without spare tire carrier |
73F |
| U2 |
Valid for all except{{USA}} |
29C |
| U3 |
Valid for all except {{Japan}} |
49H |
| U3 |
Valid for all except {{Japan}} |
49J |
| U63 |
Valid for seat adjustment without memory |
11D |
| U656 |
Valid for interior light package |
69F |
| U681 |
Valid for all except M113 |
25E |
| U681 |
Valid for all except M113 |
65E |
| U681 |
Valid for all except M113 |
31E |
| U805 |
Not valid on vehicles with automatic rear-end door or loading floor |
70F |
| U899 |
Valid for backup camera |
49G |
| U899 |
Valid for backup camera |
49H |
| U932 |
Valid for engine 642 BLUETEC |
20H |
| U974 |
Not valid for full hybrid drive |
24K |
| U978 |
Valid for full hybrid drive |
20H |
| U978 |
Valid for full hybrid drive |
24K |
| U981 |
Not valid for 642 BlueTEC and full hybrid drive |
20G |
| W15/2 |
Ground (left footwell) |
41H |
| W16/3 |
Ground (left assembly compartment, power ground) |
34L |
| W16/3 |
Ground (left assembly compartment, power ground) |
68L |
| W17 |
Ground (right rear seat) |
45L |
| W17 |
Ground (right rear seat) |
2E |
| W29/9 |
Ground (right D-pillar) |
78L |
| W6 |
Ground (left wheelhouse in luggage compartment) |
54E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
35H |
| W7 |
Ground (right wheelhouse in luggage compartment) |
2E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
62L |
| W8 |
Ground (rear-end door) |
70H |
| W8 |
Ground (rear-end door) |
71H |
| W8 |
Ground (rear-end door) |
78G |
| X18/2 |
Interior/roof connector |
8H |
| X18/3 |
Interior/fuel tank connector |
21F |
| X213 |
Rear SAM connecting point |
76E |
| X25/2 |
Engine compartment/interior compartment connector |
34F |
| X25/2 |
Engine compartment/interior compartment connector |
32F |
| X25/2 |
Engine compartment/interior compartment connector |
27H |
| X25/2 |
Engine compartment/interior compartment connector |
26H |
| X25/2 |
Engine compartment/interior compartment connector |
66G |
| X25/2 |
Engine compartment/interior compartment connector |
67G |
| X30/4 |
Right voltage distributor (CAN) connector |
5L |
| X30/5 |
Left voltage distributor (CAN) connector |
5L |
| X35/3 |
Left rear door separation point |
37E |
| X35/4 |
Right rear door separation point |
42E |
| X55/4 |
Right front seat contacting strip |
12H |
| X8/16 |
Left rear door printed wiring harness connector |
37H |
| X8/17 |
Right rear door printed wiring harness connector |
42H |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
64L |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
47L |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
48L |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
40L |
| Z204/7 |
Circuit 31 left footwell voltage distributor connector (2) |
40L |
| Z50/5 |
Tml. 15 connector sleeve |
17E |
| Z55/1 |
Rear-end door circuit 31 connector sleeve |
77L |
| Z55/4 |
Rear-end door warning lamp terminal connector |
72H |
| Z6/12 |
Left rear door ground connector sleeve |
38L |
| Z6/13 |
Right rear door ground connector sleeve |
44L |
