Wiring diagram for front signal acquisition and actuation module (SAM) control unit - PE54.21-P-2114-97MAD

Code:	Designation:	Position:
A0	Color code key	23L
E1	Left front lamp unit	11L
E1	Left front lamp unit	7L
E1	Left front lamp unit	4L
E1e1	Left high beam	2L
E1e1	Left high beam	9L
E1e2	Left low beam	8L
E1e3	Left standing and parking lamp	11L
E1e3	Left standing and parking lamp	4L
E1e5	Left turn signal lamp	10L
E1e5	Left turn signal lamp	3L
E1e6	Left side-marker lamp	13L
E1e6	Left side-marker lamp	6L
N10	Front SAM control unit	5A
N10	Front SAM control unit	12A
U151	Valid for engine 113	1A
U501	Valid for xenon headlamps	7H
U681	Valid for all except M113	8A
W9	Ground (left front, at lamp unit)	5G
W9	Ground (left front, at lamp unit)	11G
X25/2	Engine compartment/interior compartment connector	3E
X25/2	Engine compartment/interior compartment connector	2E
X25/2	Engine compartment/interior compartment connector	9E

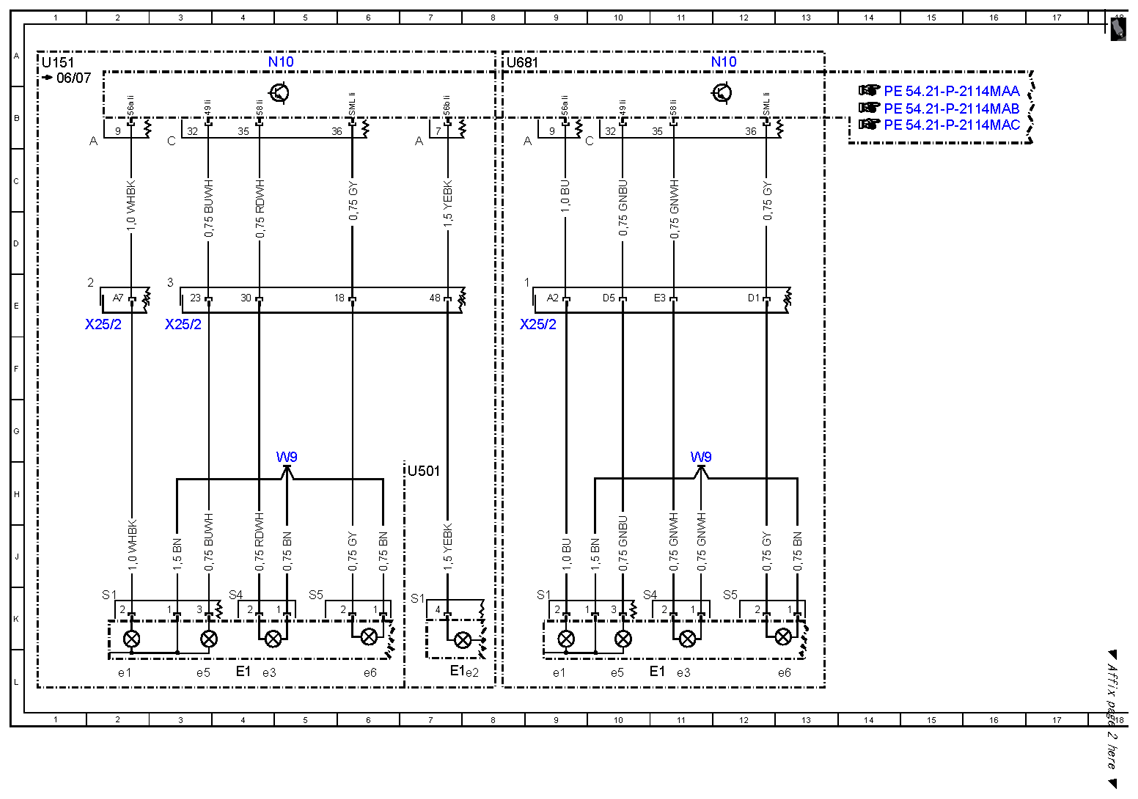

Fig 1: Front Signal Acquisition And Actuation Module Control Unit Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

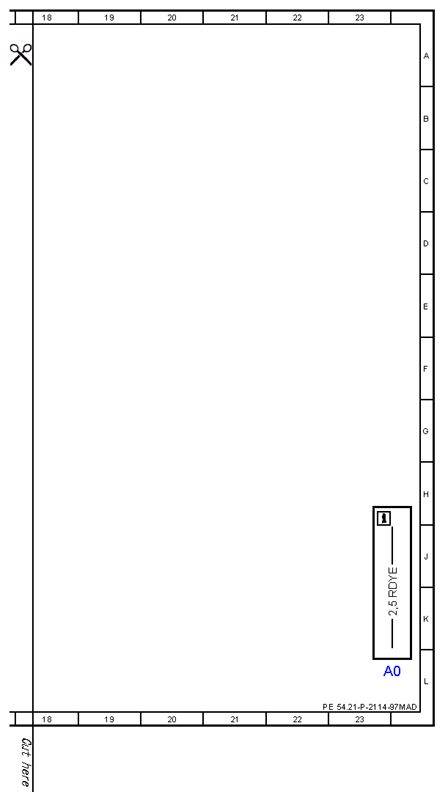

Fig 2: Front Signal Acquisition And Actuation Module Control Unit Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
