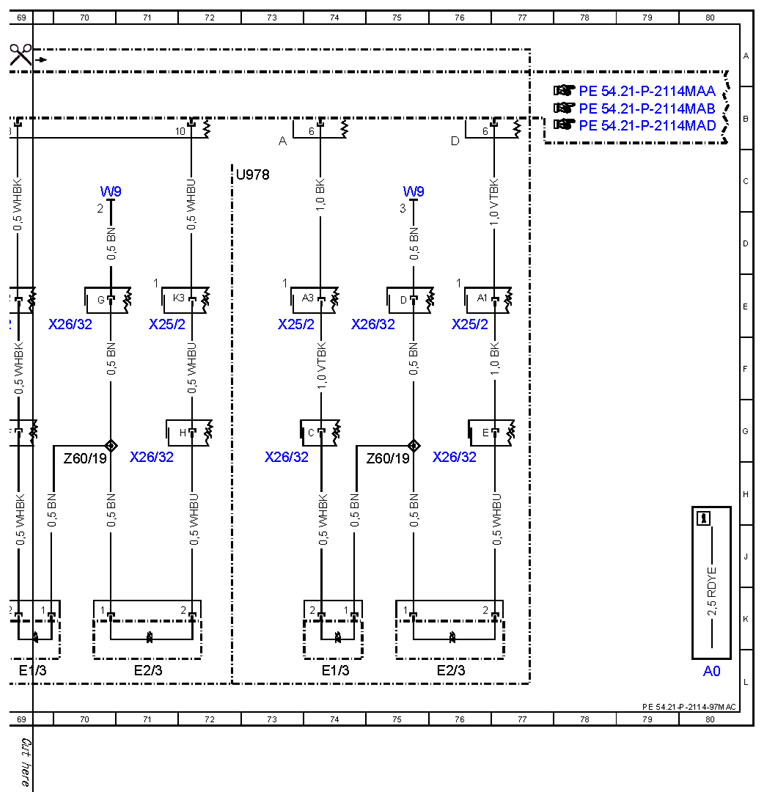

| A0 |
Color code key |
80L |
| E1/3 |
Left daytime running lamps headlamp |
69L |
| E1/3 |
Left daytime running lamps headlamp |
74L |

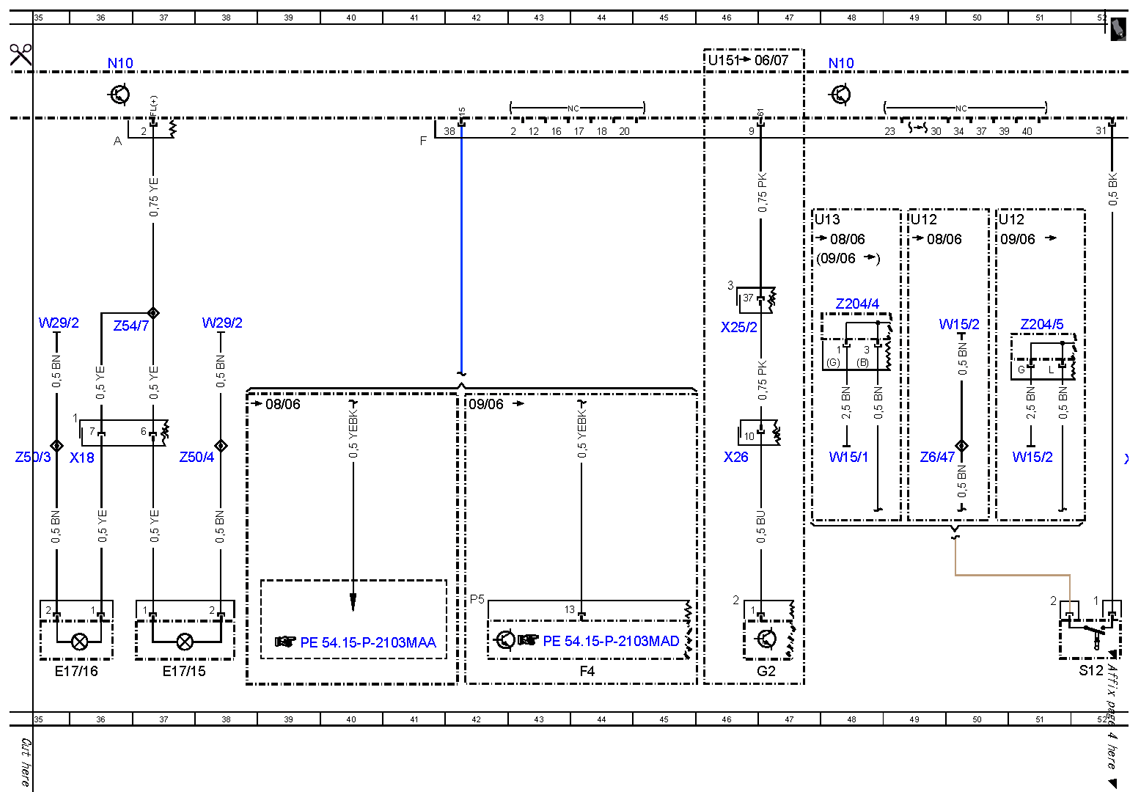

| E17/15 |
Right front footwell lamp |
37L |
| E17/16 |
Left front footwell lamp |
35L |

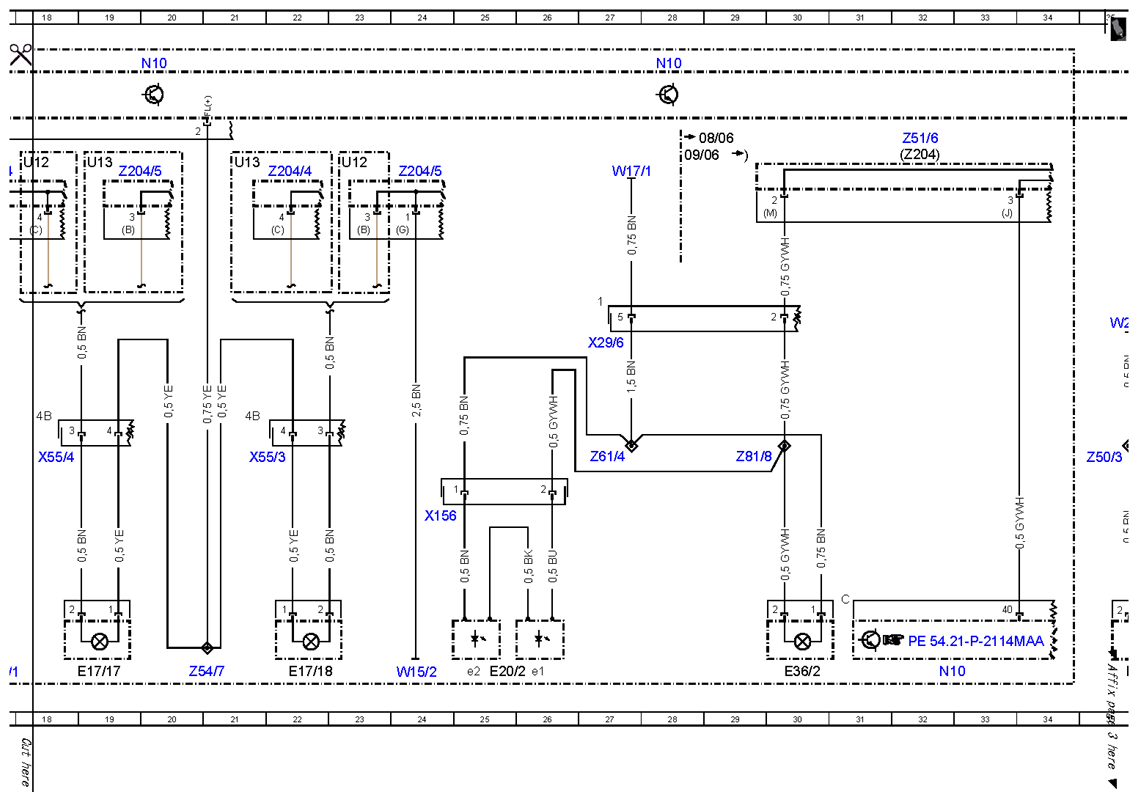

| E17/17 |
Right rear footwell lamp |
19L |
| E17/18 |
Left rear footwell lamp |
22L |

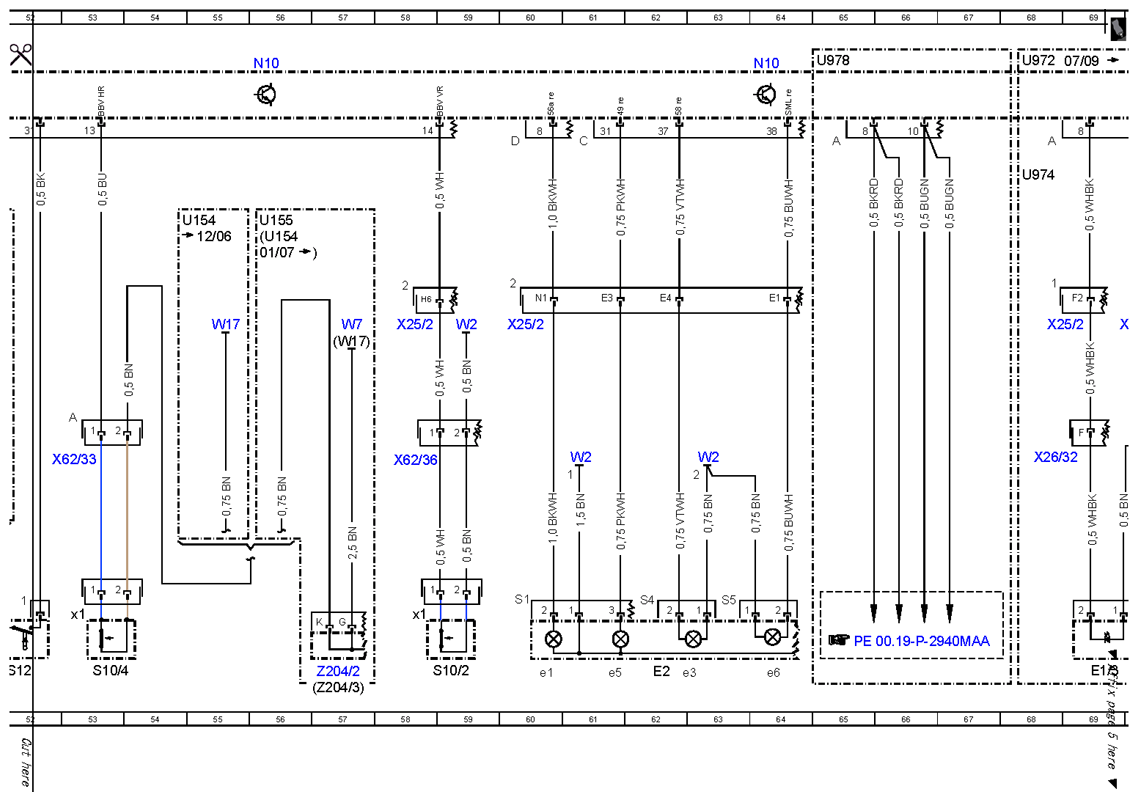

| E2 |
Right front lamp unit |
62L |
| E2/3 |
Right daytime running lamps headlamp |
71L |
| E2/3 |
Right daytime running lamps headlamp |
76L |
| E20/2 |
Front center console cup holder illumination |
25L |
| E20/2e1 |
Cup holder 1 illumination |
26L |
| E20/2e2 |
Cup holder 2 illumination |
25L |
| E2e1 |
Right high beam |
60L |
| E2e3 |
Right standing and parking lamp |
63L |
| E2e5 |
Right turn signal lamp |
61L |
| E2e6 |
Right side-marker lamp |
64L |
| E36/2 |
Front center console illumination |
30L |
| F4 |
Load compartment fuse and relay box |
44L |
| G2 |
Alternator |
47L |
| N10 |
Front SAM control unit |
4A |
| N10 |
Front SAM control unit |
12A |
| N10 |
Front SAM control unit |
20A |
| N10 |
Front SAM control unit |
28A |
| N10 |
Front SAM control unit |
36A |
| N10 |
Front SAM control unit |
48A |
| N10 |
Front SAM control unit |
56A |
| N10 |
Front SAM control unit |
64A |
| N10 |
Front SAM control unit |
32L |

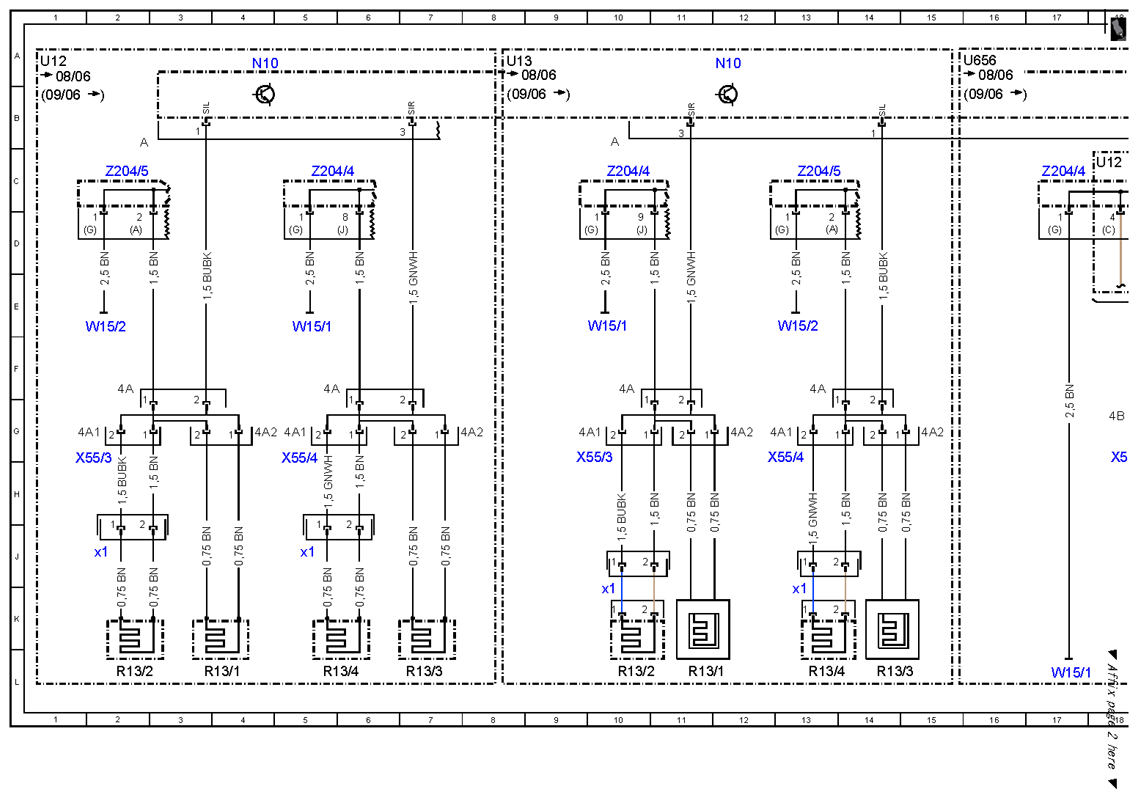

| R13/1 |
Left front seat heated cushion |
11L |
| R13/1 |
Left front seat heated cushion |
4L |
| R13/2 |
Left front backrest heated cushion |
10L |
| R13/2 |
Left front backrest heated cushion |
2L |
| R13/2x1 |
Left front backrest heated cushion connector |
10K |
| R13/2x1 |
Left front backrest heated cushion connector |
2J |
| R13/3 |
Right front seat heated cushion |
14L |
| R13/3 |
Right front seat heated cushion |
7L |
| R13/4 |
Right front backrest heated cushion |
13L |
| R13/4 |
Right front backrest heated cushion |
5L |
| R13/4x1 |
Right front backrest heater element connector |
13K |
| R13/4x1 |
Right front backrest heater element connector |
5J |
| S10/2 |
Right front brake pad contact sensor |
59L |
| S10/2x1 |
Right front brake pad contact sensor connector |
58K |
| S10/4 |
Right rear brake pad contact sensor |
53L |
| S10/4x1 |
Right rear brake pad contact sensor connector |
53K |
| S12 |
Parking brake indicator switch |
52L |
| U12 |
Valid for left-hand drive vehicles |
1A |
| U12 |
Valid for left-hand drive vehicles |
18C |
| U12 |
Valid for left-hand drive vehicles |
23C |
| U12 |
Valid for left-hand drive vehicles |
49D |
| U12 |
Valid for left-hand drive vehicles |
50D |
| U13 |
Valid for right-hand drive vehicles |
8A |
| U13 |
Valid for right-hand drive vehicles |
21C |
| U13 |
Valid for right-hand drive vehicles |
19C |
| U13 |
Valid for right-hand drive vehicles |
47D |
| U151 |
Valid for engine 113 |
46A |
| U154 |
Valid for 164.1 |
56D |
| U154 |
Valid for 164.1 |
54D |
| U155 |
Valid for 164.8 |
56D |
| U656 |
Valid for interior light package |
16A |
| U972 |
Valid for daytime running lights in LED version |
68A |
| U974 |
Not valid for full hybrid drive |
68C |
| U978 |
Valid for full hybrid drive |
65A |
| U978 |
Valid for full hybrid drive |
72C |
| W15/1 |
Ground (right footwell) |
17L |
| W15/1 |
Ground (right footwell) |
10E |
| W15/1 |
Ground (right footwell) |
48G |
| W15/1 |
Ground (right footwell) |
5E |
| W15/2 |
Ground (left footwell) |
24L |
| W15/2 |
Ground (left footwell) |
13E |
| W15/2 |
Ground (left footwell) |
51G |
| W15/2 |
Ground (left footwell) |
50E |
| W15/2 |
Ground (left footwell) |
2E |
| W17 |
Ground (right rear seat) |
55E |
| W17 |
Ground (right rear seat) |
57E |
| W17/1 |
Ground (left rear seat) |
27C |
| W2 |
Ground (right front, at lamp unit) |
63G |
| W2 |
Ground (right front, at lamp unit) |
61G |
| W2 |
Ground (right front, at lamp unit) |
59E |
| W29/2 |
Ground (right A-pillar) |
35E |
| W29/2 |
Ground (right A-pillar) |
38E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
57E |
| W9 |
Ground (left front, at lamp unit) |
70C |
| W9 |
Ground (left front, at lamp unit) |
75C |
| X156 |
Illuminated cup holder separation point |
24H |
| X18 |
Interior/cockpit connector |
36H |
| X25/2 |
Engine compartment/interior compartment connector |
46E |
| X25/2 |
Engine compartment/interior compartment connector |
60E |
| X25/2 |
Engine compartment/interior compartment connector |
58E |
| X25/2 |
Engine compartment/interior compartment connector |
69E |
| X25/2 |
Engine compartment/interior compartment connector |
71E |
| X25/2 |
Engine compartment/interior compartment connector |
73E |
| X25/2 |
Engine compartment/interior compartment connector |
76E |
| X26 |
Interior and engine wiring harness connector |
46G |
| X26/32 |
Left front engine compartment/bumper connector |
68H |
| X26/32 |
Left front engine compartment/bumper connector |
71H |
| X26/32 |
Left front engine compartment/bumper connector |
76H |
| X26/32 |
Left front engine compartment/bumper connector |
73H |
| X26/32 |
Left front engine compartment/bumper connector |
70E |
| X26/32 |
Left front engine compartment/bumper connector |
75E |
| X29/6 |
Center console intermediate connector |
27F |
| X55/3 |
Left front seat contacting strip |
10H |
| X55/3 |
Left front seat contacting strip |
22H |
| X55/3 |
Left front seat contacting strip |
2H |
| X55/4 |
Right front seat contacting strip |
13H |
| X55/4 |
Right front seat contacting strip |
18H |
| X55/4 |
Right front seat contacting strip |
5H |
| X62/33 |
Right rear axle multiple circuit junction connector |
53H |
| X62/36 |
BWI [BBV]/rpm right front axle connector |
58H |
| Z204 |
Wake-up signal/circuit 58d voltage distributor connector |
32B |
| Z204/2 |
Circuit 31 right wheelhouse luggage compartment voltage distributor connector |
57L |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
57L |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
10C |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
17C |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
22C |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
48E |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
5C |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
13C |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
19C |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
24C |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
51E |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
2C |
| Z50/3 |
Circuit 31 cockpit connector sleeve (1, left) |
35G |
| Z50/4 |
Circuit 31 cockpit connector sleeve (2, right) |
38G |
| Z51/6 |
Circuit 58d interior connector sleeve |
32B |
| Z54/7 |
Footwell lamps connector sleeve |
20L |
| Z54/7 |
Footwell lamps connector sleeve |
36E |
| Z6/47 |
Ground (W15/2) connector sleeve |
49G |
| Z60/19 |
Daytime running light connector sleeve, circuit 31 |
70H |
| Z60/19 |
Daytime running light connector sleeve, circuit 31 |
75H |
| Z61/4 |
Front center console circuit 31 connector sleeve |
27G |
| Z81/8 |
Front center console circuit 58d connector sleeve |
29G |
