Location and assignment of line and plug connectors, trunk, left - GF00.19-P-1000-06MAA

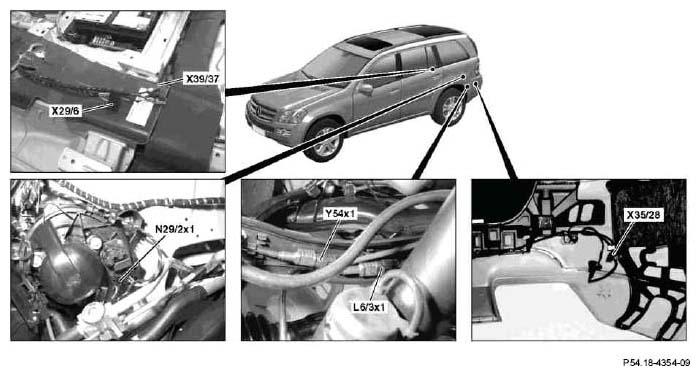

Fig 1: Identifying Plug Connectors And Trunk Location (Left) (1 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

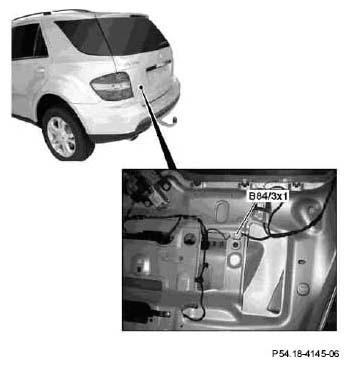

Fig 2: Identifying Plug Connectors And Trunk Location (Left) (2 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

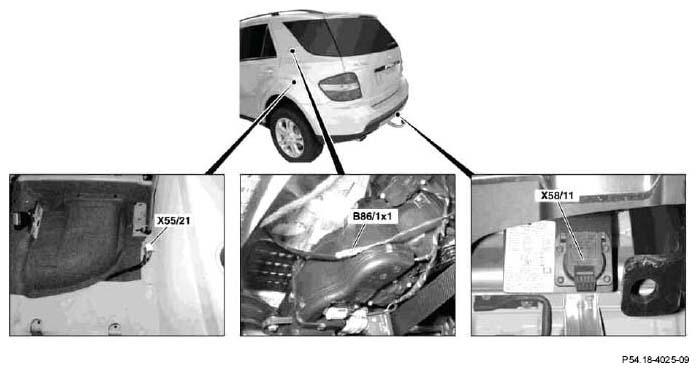

Fig 3: Identifying Plug Connectors And Trunk Location (Left) (3 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

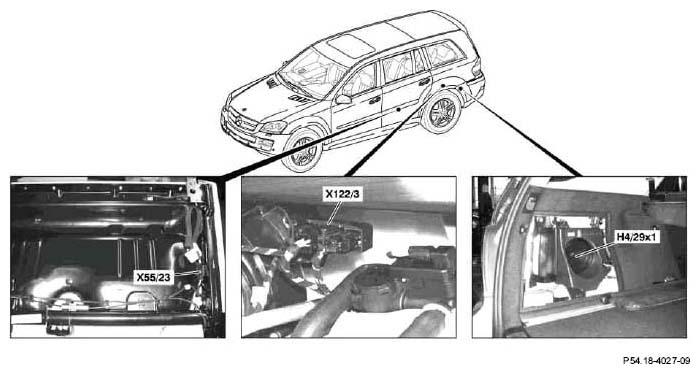

Fig 4: Identifying Plug Connectors And Trunk Location (Left) (4 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Code	Designation	Cable colors		Cable colors	Notes
B84/3x1	Backup camera connector		1	BN	Except Japan
			1	BK	Japan
			2	BK	Except Japan
			2	BN	Japan
			3	TR
			4	YE
B86/1x1	Left rear-end door closing obstruction sensor strip connector		1	WHBU
			2	GNBU
H4/29x1	Subwoofer connector		1	BKWH
			2	GYWH
			3	WHBU
			4	GN
L6/3x1	RPM sensor connector		1
			2
N29/2x1	Rear air conditioning electronic blower regulator connector		1	GNBU
			2
X29/6	Center console intermediate connector	RD	1.1	RD
		GYWH	1.2	GYWH
		BNRD	1.3	BNRD
		BN	1.4	BN
		BN	1.5	BN
		BKBU	1.6	BKBU
		WH	1.7	WH
		BN	1.8	BN
		TR	1.9	TR
		BN	1.10	BN
		TR	1.11	TR
		BKBU	1.12	BKBU
		BN	1.13	BN
		WH	1.14	WH
		WHBU	2.1	TR	up to 12/06
		OG	2.2	RDWH	up to 12/06
		BU	2.3	BUWH	up to 12/06
		GN	2.4	GNWH	up to 12/06
		BN	2.5	BKWH	up to 12/06
		WHGN	2.7	RD	up to 12/06
		WHOG	2.8	BU	up to 12/06
		WHBN	2.9	GN	up to 12/06
		TR	2.10	BK	up to 12/06
		BK	3.1	PK	up to 12/06
		VT
		BU	3.1	BU	as of 01/07
		BU	3.2	BU	up to 12/06
		WH	3.2	WH	as of 01/07
		WH	3.3	WH	up to 12/06
		GN	3.3	GN	as of 01/07
		GN	3.4	GN	up to 12/06
		GYWH	3.4	GYWH	as of 01/07
		GYWH	3.5	GYWH	up to 12/06
		BN	3.5	BN	as of 01/07
		RDWH	3.6	RD	up to 12/06
		RD
		OG	3.6	OG	as of 01/07
		BN	3.7	BN	up to 12/06
		OG	3.8	OG	up to 12/06
		TR	4.1	TR	up to 12/06
		BK	4.2	BK	up to 12/06
X35/28	PTS, rear bumper connector	PKWH	1	PKWH
		VTWH	2	VTWH
		RDWH	3	RDWH
		OG	4	OG
		BN	5	BN
		YEWH	6	YEWH
X39/37	CTEL separation point
	Telephone preinstallation		1.1	BN
			1.4	BUBK
			1.7	BUBK
			1.9	TR
			1.10	BKWH
			1.11	RDWH
			1.16	BNBK
			1.18	GN
			2.S	TR
			2.1	TR
	Japan		1.1	BK
			1.2	YE
			1.4	BN
			1.6	TR
			1.7	TR
			1.9	WH
			1.10	TR
			2.1	GN
			2.2	OG
			2.3	GY
			2.4	BU
			2.5	PK
			2.7
		TR	3.1
		TR	3.2
X55/21	Left 3rd seat row connector block		1.1	GYBK
			1.2	GNBK
			1.3	YEBK
			1.4	BUBK
		BNBK	2.1	BNBK
		GNBK	2.2	GNBK
		BUBK	2.3	BUBK
		RDBK	2.4	RDBK
		RDBK
		BNBK	2.5	BNBK
		BNBK
			2.6
X55/23	Left 2/3 bench seat (2nd seat row) backrest/cushion separation point	BN	1	BN
		WH	2	WH
X58/11	Trailer hitch socket, 7-pin (Valid for USA)		2	WHBU	up to 12/06
			3	VT	up to 12/06
			4	RD	up to 12/06
			5	GY	up to 12/06
			7	YEWH	up to 12/06
			8	BN	up to 12/06
			10	OG	up to 12/06
X58/11	Trailer hitch socket, 7-pin (Valid for USA)		2	BKGN	as of 01/07
			3	GYYE	as of 01/07
			4	RD	as of 01/07
			5	GYBK	as of 01/07
			7	YERD	as of 01/07
			8	BN	as of 01/07
			10	BKWH	as of 01/07
X122/3	Rear AC connector		1.1	YEBK
			1.2	BKBU
			1.3	GYBU
			1.4	GYWH
			1.5
			1.6	BN
			1.7
			1.8	BK
			1.9	GYWH
			1.10
			2.1	BN
			2.2	RD
			2.3	GNBU
			2.4	WHBK
Y54x1	Damping valve unit connector		1	PK
			2	YE
			3	VT
