Information on applying sealant to cylinder head gasket - AH01.30-P-1000-04V
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113
Before mounting the left cylinder head, porous areas in the left cylinder head mean that sealant has to be applied to the cylinder head gasket in the timing case cover area.
Repair information

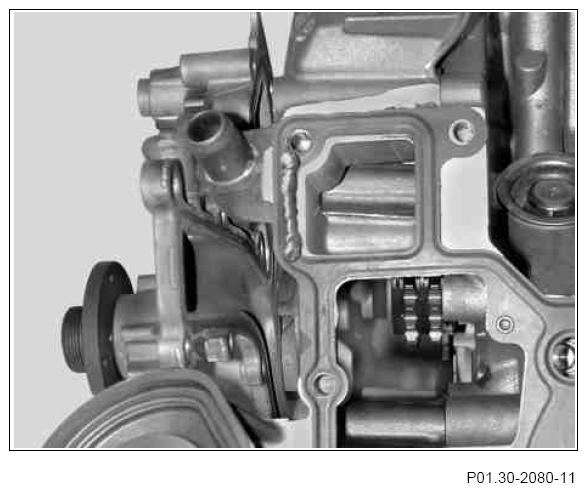

The sealant may only be applied in the manner shown with a bead of 2.0 mm ±0.5 mm.
The sealant must be used within 10 min.
The silicone bead should not be spread.
