Check outside of vehicle in visible area for signs of damage - AP60.00-P-0050A

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 217

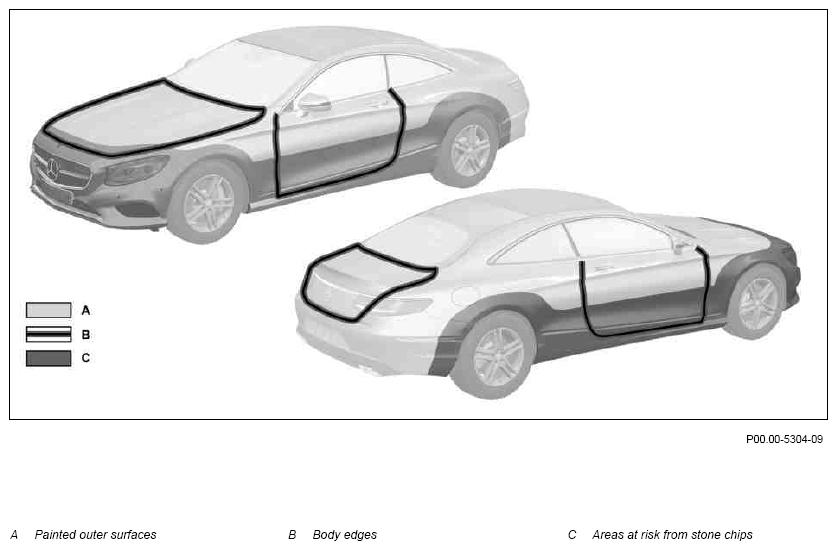

Fig 1: Identifying Vehicle Visible Damaged Area - Outside (Model 217)

Courtesy of MERCEDES-BENZ USA

	Damage and stress caused to paintwork by external influences		AH98.00-P-8070-02A
	Check
1	Check vehicle body and detachable parts for damage and completeness	Dent/deformation, Component missing, Crack/scratch, Other damage. If corrosion is detected: ↓ proceed in accordance with the country-specific regulations for mobility and body shell complaints. If there are problems: ↓ If necessary, rectify the problem, subject to separate repair order.
2	Check vehicle paintwork for damage and check vehicle body for corrosion	The main complaints are in the areas of the body edges (B) and areas (C) subject to stone chippings. Damage to the vehicle paintwork are, e.g.: Stone chipping, Scratch, Environmental influences, Paint peeling off. If there are problems: ↓ Proceed in accordance with the country-specific regulations for mobility and body shell complaints subject to separate repair order.
			OF98.00-P-3000-01X
3	Check exterior lights glazing for damage	Water entry, Reflector dull, Component missing, corrosion, Crack/scratch, Other damage. If there are problems: ↓ If necessary, rectify the problem, subject to separate repair order.
