Brake system - inspect fluid level - AP42.10-P-4210HA
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 217, 222
Shown on MODEL 222
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Check | |||

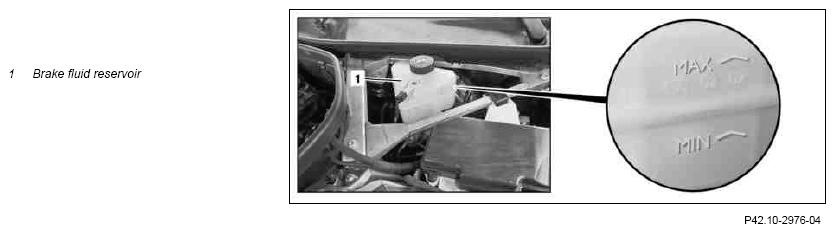

| 1 | Remove left rear engine compartment paneling over brake fluid reservoir (1) | ||
| 2 | Check fluid level in brake fluid reservoir (1) | If the fluid level is too low: ↓ Repair the problem, subject to separate repair order. If the fluid level is too high: ↓ Extract brake fluid until the fluid level is at the "MAX" mark. |
|
| 3 | Install left rear engine compartment paneling over brake fluid reservoir (1) |
