Brake system - inspect fluid level - AP42.10-P-4210CAA
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Check | |||
| 1 | Open engine hood | ||
| 2 | Remove cover of the brake fluid reservoir | ||

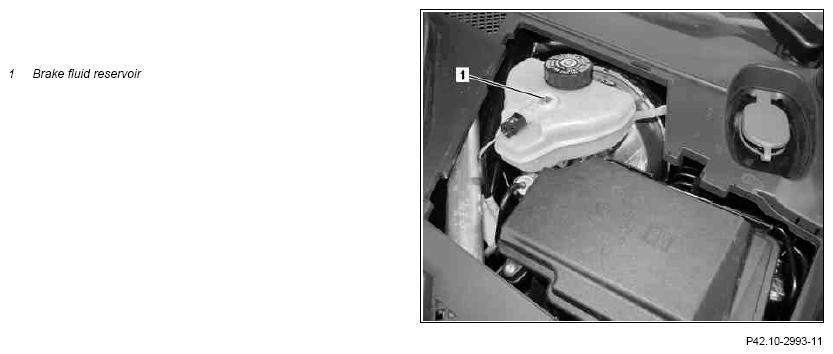

| 3 | Check fluid level in brake fluid reservoir (1) | If the fluid level is too low: ↓ Determine and rectify cause, subject to separate repair order If the fluid level is too high: ↓ Extract brake fluid until the fluid level is at the "MAX" mark |
|
| 4 | Install cover of the brake fluid reservoir | ||
| 5 | Close engine hood |
