Assess condition of brake linings - AP42.10-P-4252G

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 461, 463

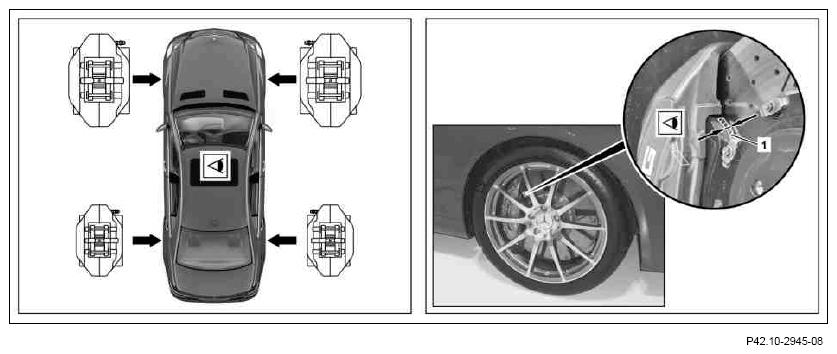

Fig 1: Checking Brake Lining Thickness

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Lining Thickness, Flashlight & Mirror

Courtesy of MERCEDES-BENZ USA

	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Check
1	Assess lining thickness (1) of brake linings on front axle	If necessary, use bulb (2) or mirror (3). The thickness of the pad backing plate can be used as a guide when assessing brake lining thickness.
1	Assess lining thickness (1) of brake linings on front axle	Brake shoe If, in exceptional cases, assessment by means of visual inspection is not possible. ↓ Detach wheel and tire assemblies and inspect them, subject to separate repair order.	*BE42.10-P-1001-10A
2	Assess lining thickness (1) of brake linings on rear axle	If necessary, use bulb (2) or mirror (3). The thickness of the pad backing plate can be used as a guide when assessing brake lining thickness.
2	Assess lining thickness (1) of brake linings on rear axle	Brake shoe If, in exceptional cases, assessment by means of visual inspection is not possible. ↓ Detach wheel and tire assemblies and inspect them, subject to separate repair order.	*BE42.10-P-1001-10A
3	Determine likely remaining distance of brake linings		AP42.10-P-4253-03EW
3	Determine likely remaining distance of brake linings	If the wear limit for the brake linings is reached, the brake linings must be replaced subject to separate repair order. Otherwise the braking effect may be impaired and people, property and environmental damage may result! Per axle, the brake pad with the least lining thickness is to be used for determining likely remaining distance. In order to avoid an unscheduled workshop visit between services, it is necessary to determine the remaining distance of the present brake linings. If the remaining distance determined is smaller than the next service interval, premature brake pad replacement should be recommended to the customer.	AP42.10-P-4253-03EW

TEST VALUES FOR SERVICE BRAKE

Number	Designation			MODEL 460, 461, 463
BE42.10-P-1001-10A	Brake pad wear limit, disk brake	Front axle	mm	2, 0
BE42.10-P-1001-10A	Brake pad wear limit, disk brake	Rear axle	mm	2, 0
