Assess condition of brake linings - AP42.10-P-4252EL

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 218

MODIFICATION NOTES

30.4.14	Brake Pad	MODEL 218.373/391/973/991	BE42.10-P-1001-05R
30.4.14	Brake Pad	MODEL 218.362/961/965/967/968, MODEL 218.323/326/393/394/923/926/959/993/994 with CODE 950/P96, MODEL 218.361/365/367/368 except CODE 494, MODEL 218.359 with CODE P96/950 except 494	BE42.10-P-1001-05R

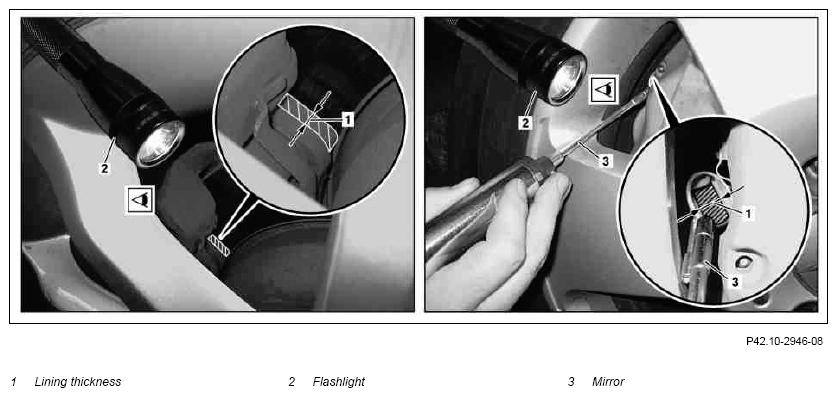

Fig 1: Checking Linings Thickness

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Lining Thickness, Flashlight & Mirror

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Check
1	Assess lining thickness (1) of brake linings on front axle	If necessary, use flashlight (2) or mirror (3). The thickness of the pad backing plate can be used as a guide when assessing lining thickness (1).
1	Assess lining thickness (1) of brake linings on front axle	Brake lining thickness - front axle If, in exceptional cases, assessment by means of visual inspection is not possible: ↓ Detach wheel and tire assemblies and inspect them, subject to separate repair order.	*BE42.10-P-1001-05R
2	Assess lining thickness (1) of brake linings on rear axle	If necessary, use flashlight (2) or mirror (3). The thickness of the pad backing plate can be used as a guide when assessing lining thickness (1).
2	Assess lining thickness (1) of brake linings on rear axle	Brake lining thickness - rear axle If, in exceptional cases, assessment by means of visual inspection is not possible: ↓ Detach wheel and tire assemblies and inspect them, subject to separate repair order.	*BE42.10-P-1001-15P
3	Determine likely remaining distance of brake linings		AP42.10-P-4253-03EW
3	Determine likely remaining distance of brake linings	If the wear limit for the brake linings is reached, the brake linings must be replaced subject to separate repair order. Otherwise the braking effect may be impaired and people, property and environmental damage may result! Per axle, the brake pad with the least lining thickness (1) is to be used for determining the likely remaining distance. In order to avoid an unscheduled workshop visit between services, it is necessary to determine the remaining distance of the present brake linings. If the remaining distance determined is smaller than the next service interval, premature brake pad replacement should be recommended to the customer.	AP42.10-P-4253-03EW

CHECK VALUES FOR FRONT BRAKE PAD

Number	Designation			MODEL 218.374/375/376/392/974/975/976/992 except CODE B07	MODEL 218.374/375/376/392/974/975/976/992 with CODE B07
BE42.10-P-1001-05R	Brake shoe	Brake pad, new	mm	9, 75	10, 50
		Pad backing plate	mm	6, 0	6, 0
		Wear limit	mm	2, 0	2, 0
		Brake wear indicator activated (if installed)	mm	2...3	2...3

CHECK VALUES FOR FRONT BRAKE PAD

Number	Designation			MODEL 218.373/391/973/991	MODEL 218.362/961/965/967/968, MODEL 218.323/326/393/394/923/926/959/993/994 with CODE 950/P96, MODEL 218.361/365/367/368 except CODE 494, MODEL 218.359 with CODE P96/950 except 494
BE42.10-P-1001-05R	Brake shoe	Brake pad, new	mm	11, 38	11, 52
		Pad backing plate	mm	5, 5	5, 0
		Wear limit	mm	2, 0	2, 0
		Brake wear indicator activated (if installed)	mm	2...3	2...3

CHECK VALUES FOR FRONT BRAKE PAD

Number	Designation			MODEL 218.301/303/304/336/355/397/901/903/904/936/997, MODEL 218.361/365/367/368 with CODE 494, MODEL 218.323/326/393/394/923/926/959/993/994 except CODE 950/P96, MODEL 218.359 with CODE 950+494, except CODE P96
BE42.10-P-1001-05R	Brake shoe	Brake pad, new	mm	12, 50
		Pad backing plate	mm	5, 5
		Wear limit	mm	2, 0
		Brake wear indicator activated (if installed)	mm	2...3

CHECK VALUES FOR REAR BRAKE PAD

Number	Designation			MODEL 218 AMG	MODEL 218 except AMG
BE42.10-P-1001-15P	Brake pad	Brake pad, new	mm	9, 1	11, 0
		Pad backing plate	mm	5, 5	5, 5
		Wear limit	mm	2, 0	2, 0
		Brake wear indicator activated (if installed)	mm	2...3	2...3
