Adjusting headlamps when driving abroad - AH82.10-P-0001-01SLR

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 199

Remove screws (1) from headlamp cover (2).

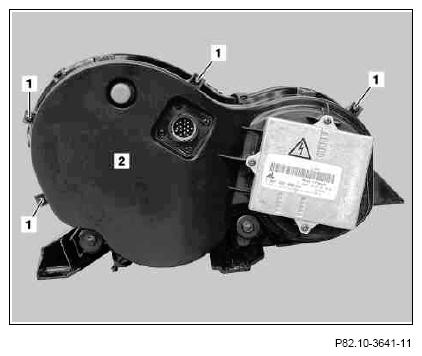

Fig 1: Removing Screws From Headlamp Cover

Courtesy of MERCEDES-BENZ USA

Fold headlamp cover (2) downward.

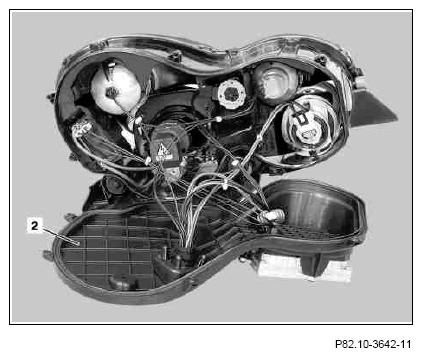

Fig 2: Folding Headlamp Cover

Courtesy of MERCEDES-BENZ USA

Move lever (3) to stop position in clockwise direction.

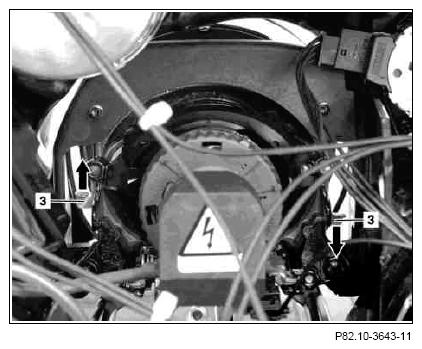

Fig 3: Moving Lever To Stop Position

Courtesy of MERCEDES-BENZ USA
