Treatment of battery if vehicle taken out of service - AR54.10-P-0006GZ

MODEL 164

Shown on model 251

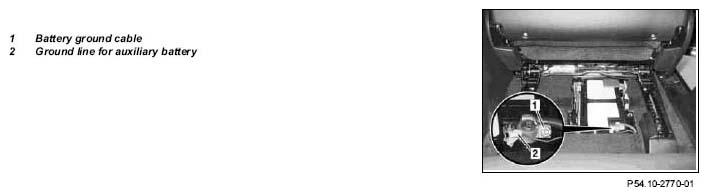

Fig 1: Identifying Battery Ground Cable And Ground Line For Auxiliary Battery - Shown On Model 251

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Check battery, charge battery if necessary		AR54.10-P-1129GZ
2	Disconnect ground line of battery (1)	When the vehicle is laid up for more than 4 weeks. This prevents the battery being discharged by closed-circuit accessories.	AR54.10-P-0003GZ
3	Disconnect ground line of additional battery (2)	When the vehicle is laid up for more than 4 weeks. This prevents the battery being discharged by closed-circuit accessories.
4	Charge battery	When battery is disconnected every 6 months at the latest and when the battery is connected every 6 weeks at the latest.	AR54.10-P-1130GZ
