Prepare new parts - AR64.20-P-1060-02GX

COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1002-02A Hole punching pliers, dia. 7 mm
WH58.30-Z-1001-03A Round wire brush, braided, dia. 70 mm
WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A Drill (electric/pneumatic)
WE58.40-Z-1004-03A Body saw (electric/pneumatic)
WE58.40-Z-1005-03A Wet/dry vacuum cleaner
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
  1. Grind connection surfaces down to bare metal in shaded areas of rear crossmember inner section (6) on both sides.
  2. Remove grinding chips using wet/dry vacuum cleaner.
  3. Coat insides of spot welding flange (except area K) with zinc dust paint.

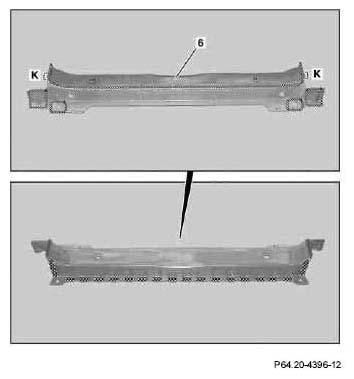

    Fig 1: Identifying Grind Connection Surfaces To Bare Metal In Shaded Areas Of Rear Crossmember Inner Section
    G05259391Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  4. Mark separation points (area B) on new part of D-ring and cut.

    IMPORTANT Dimension X1 = 195 mm. Use top edges of holes in D-ring as reference points. Adapt to vehicle in addition

  5. Grind connection surfaces of D-ring section (4) down to bare metal (shaded areas B and M) (4) on one side.
  6. Grind connection surfaces down to bare metal in remaining areas on both sides.
  7. Punch holes for SHIELDED GAS PLUG WELD in D-ring section (area EB).

    IMPORTANT Use dia. 7 mm hole punching pliers.COMMERCIALLY AVAILABLE TOOLS

  8. Remove grinding chips using wet/dry vacuum cleaner.
  9. Coat insides of spot welding flange (except areas B, EB and M) with zinc dust paint.

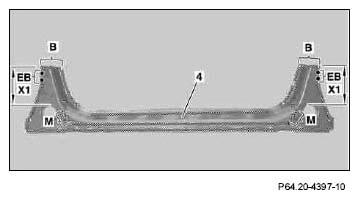

    Fig 2: Identifying Grind Connection Surfaces Of D-Ring Section To Bare Metal (Shaded Areas B And M)
    G05259392Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  10. Grind connection surfaces of lock carrier reinforcement (3) down to bare metal in shaded areas on both sides.
  11. Remove grinding chips using wet/dry vacuum cleaner.
  12. Coat insides of spot weld flanges with zinc dust paint.

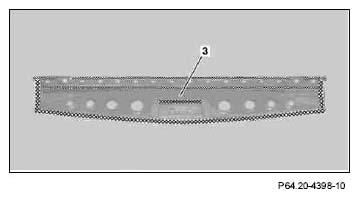

    Fig 3: Identifying Grind Connection Surfaces Of Lock Carrier Reinforcement To Bare Metal In Shaded Areas
    G05259393Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  13. Grind connection surfaces of lock carrier (5) down to bare metal in shaded areas on both sides.
  14. Punch holes for SHIELDED GAS PLUG WELD in lock carrier (area M).

    IMPORTANT Use dia. 7 mm hole punching pliers.COMMERCIALLY AVAILABLE TOOLS

  15. Remove grinding chips using wet/dry vacuum cleaner.
  16. Coat insides of spot welding flange (except area M) with zinc dust paint.

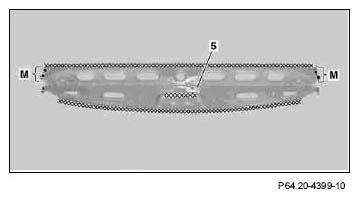

    Fig 4: Identifying Grind Connection Surfaces Of Lock Carrier To Bare Metal In Shaded Areas
    G05259394Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  17. Grind connection surfaces of rear crossmember outer section down to bare metal in shaded areas (2) on both sides.
  18. Remove grinding chips using wet/dry vacuum cleaner.
  19. Coat insides of spot weld flanges with zinc dust paint.
    Fig 5: Identifying Grind Connection Surfaces To Bare Metal In Shaded Areas Of Rear Cross Member Outer Section
    G05259382Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
