Remove/install front prefuse box - AR54.15-P-1330GZ
MODEL 164
Shown on model 164.1 with engine 272

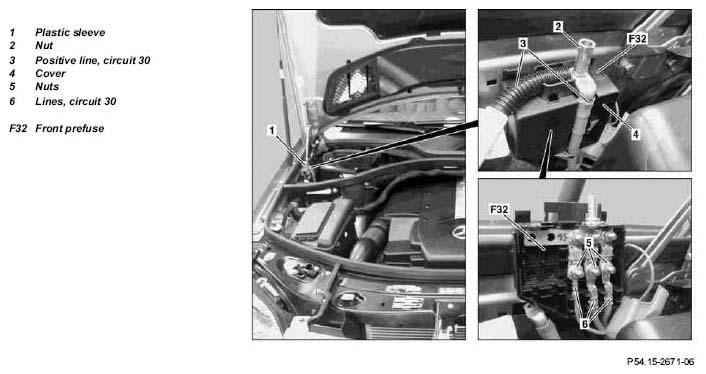

Fig 1: Identifying Front Pre-Fuse Box Remove/Install Components - Shown On Model 164.1 With Engine 272
| Remove/instal | |||
|---|---|---|---|
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 1 | Disconnect battery ground cable | AR54.10-P-0003GZ | |
| Notes on battery | All models | AH54.10-P-0001-01A | |
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| 2 | Open engine hood and raise to vertical position | AR88.40-P-1000GZ | |
| 3 | Remove plastic sleeve (1) for nut (2) | ||
| 4 | Unscrew nut (2) and remove positive line, circuit 30 (3) | ||
| 5 | Detach front prefuse box (F32) from engine compartment | ||
| 6 | Detach cover (4) from front prefuse box (F32) | ||
| 7 | Unscrew nuts (5) and lines, remove circuit 30 (6) | ||
| 8 | Remove front prefuse box (F32) | ||
| 9 | Install in the reverse order | ||
| 10 | Perform basic programming | AR00.19-P-0200GZ |
