| 1 |

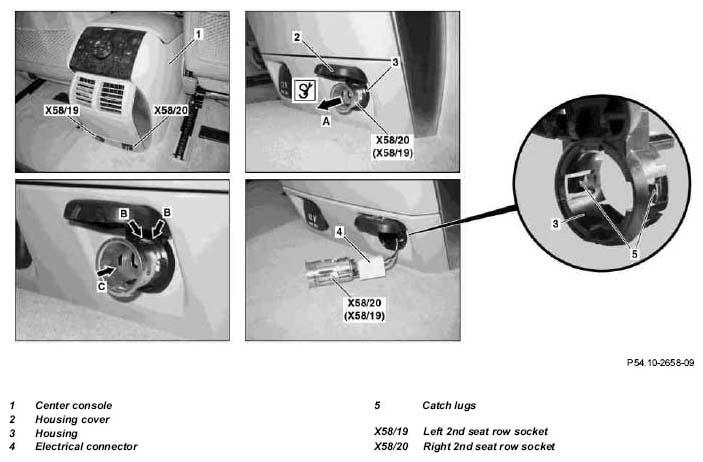

Fold up housing lid (2) |
The left 2nd seat row socket (X58/19) and right 2nd seat row socket (X58/20) are located in the center console (1). |
|
| 2 |
Detach left 2nd seat row socket (X58/19) or right 2nd seat row socket (X58/20) from the housing (3) using pliers and pull out (arrow A) |
Do not turn the left 2nd seat row socket (X58/19) or right 2nd seat row socket (X58/20) when pulling out
Installation:
Ensure that the two guides (arrows B) are inserted in the grooves of the housing (3). Push in the left 2nd seat row socket (X58/19) or right 2nd seat row socket (X58/20) until it latches in the housing (3) (arrow C). |
|
| |
|
Pliers |
Figure |
| 3 |
Disconnect electrical connector (4) |
|
|
| 4 |
Remove housing (3) from the center console (1) |
Loosen the housing (3) at both catch lugs (5) and pull out of the center console (1). |
|
| 5 |
Install in the reverse order |
|
|
