Warning indicator, component description - GF54.65-P-5020GZ

MODEL 164.1 /8 with CODE (220) Parktronic system (PTS)

Shown on model designation 164.1

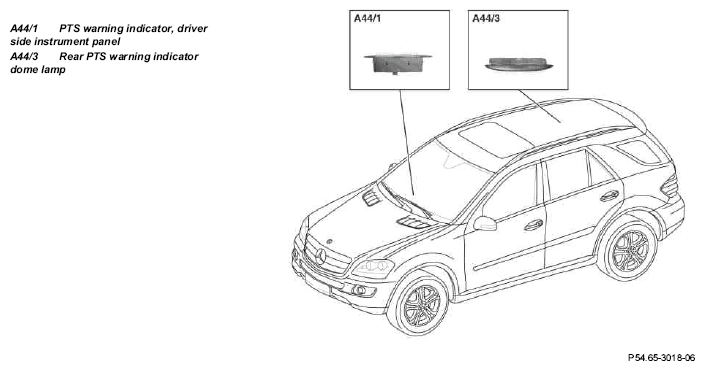

Location

The PTS warning indicator, driver side instrument panel is located at the top of the center console.

The PTS warning indicator, rear dome lamp is located in the headliner in the dome lamp.

Design

Each warning indicator incorporates 12 yellow and 4 red LEDs, two standby bars, one sound transmitter and a microprocessor. The microprocessor manages the bidirectional data exchange with the PTS control unit (N62).

Task

When an obstruction is detected in front of or behind the vehicle, the ranges are communicated to the driver visually at first by the lighting of the yellow LEDs, then by the lighting of the red LEDs and then also by the output of an acoustic warning.

After a successful self-test and up to a speed of 18 km/h, the standby bar lights up to inform the driver that the Parktronic system (PTS) is ready to operate.

If the Parktronic system (PTS) detects a fault during the self-test or while driving, this is signaled to the driver by the lighting of the two red LEDs.
