Grind connection surfaces on vehicle for rear crossmember - AR64.20-P-1100-06GY
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1024-04A | Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 rpm) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1003-03A | Angle grinder (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |

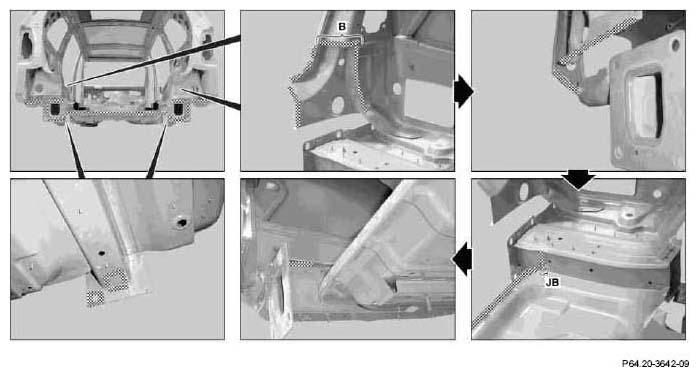

- Grind connection surfaces down to bare metal in shaded areas B and JB on one side.
- Grind connection surfaces down to bare metal in remaining areas on both sides.
- Remove grinding and cutting chips with wet/dry vacuum cleaner.
- Coat insides of spot welding flanges (except areas B and JB) with zinc dust paint.
