| 1 |
Door rotary tumbler switch, status |
7 F |
| 1 |
Door rotary tumbler switch, status |
17 L |
| 1 |
Door rotary tumbler switch, status |
19 D |
| 10 |
AIRMATIC compressor, actuation |
20 C |
| 10 |
AIRMATIC compressor, actuation |
22 B |
| 11 |
AIRMATIC central reservoir charge valve, actuation |
26 E |
| 12 |
AIRMATIC pressure reduction valve, actuation |
22 C |
| 13 |
Wheel speed, signal |
21 F |
| 14 |
Level control switch, status |
7 D |
| 14 |
Level control switch, status |
18 D |
| 15 |
Level control switch (LED), actuation |
7 B |
| 15 |
Level control switch (LED), actuation |
8 D |
| 16 |
Steering angle, signal |
22 F |
| 16 |
Steering angle, signal |
25 J |
| 17 |
Service brake, status |
21 G |
| 18 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
21 G |
| 19 |
AIRMATIC fault, message |
10 G |
| 2 |
Rear-end door locking unit, status |
7 G |
| 2 |
Rear-end door locking unit, status |
16 L |
| 2 |
Rear-end door locking unit, status |
18 D |
| 20 |
Trailer operation detected, signal |
7 G |
| 20 |
Trailer operation detected, signal |
17 D |
| 3 |
Activate system, signal |
20 F |
| 4 |
Level sensor, status |
22 F |
| 5 |
AIRMATIC pressure sensor, signal |
22 E |
| 6 |
Level control valve, actuation |
26 E |
| 7 |
Engine speed, signal |
19 F |
| 8 |
Outside air pressure/temperature, signal |
18 F |
| 9 |
Outside temperature sensor, signal |
5 D |
| 9 |
Outside temperature sensor, signal |
18 D |
| A1 |
Instrument cluster |
10 H |
| A9/1 |
AIRMATIC compressor unit |
23 B |
| B22/10 |
Right rear level sensor |
26 H |
| B22/7 |
Left rear level sensor |
26 G |
| B22/8 |
Left front level sensor |
26 G |
| B22/9 |
Right front level sensor |
26 G |
| CAN B |
Interior CAN |
4 E |
| CAN B |
Interior CAN |
6 H |
| CAN B |
Interior CAN |
6 C |
| CAN B |
Interior CAN |
11 K |
| CAN C |
Engine compartment CAN |
11 E |
| CAN C |
Engine compartment CAN |
15 F |
| CAN C |
Engine compartment CAN |
17 F |
| CAN C |
Engine compartment CAN |
17 E |
| CAN C |
Engine compartment CAN |
20 G |
| CAN C |
Engine compartment CAN |
22 G |
| F58kG |
Air suspension compressor relay |
20 B |
| N10 |
Front SAM control unit |
18 J |
| N10/8 |
Rear SAM control module |
6 K |
| N22 |
AAC pushbutton control module |
2 D |
| N22/7 |
Comfort AAC pushbutton control module |
2 D |
| N3/10 |
ME-SFI [ME] control module |
14 G |
| N47-5 |
ESP control module |
20 J |
| N49 |
Steering angle sensor |
27 J |
| N51 |

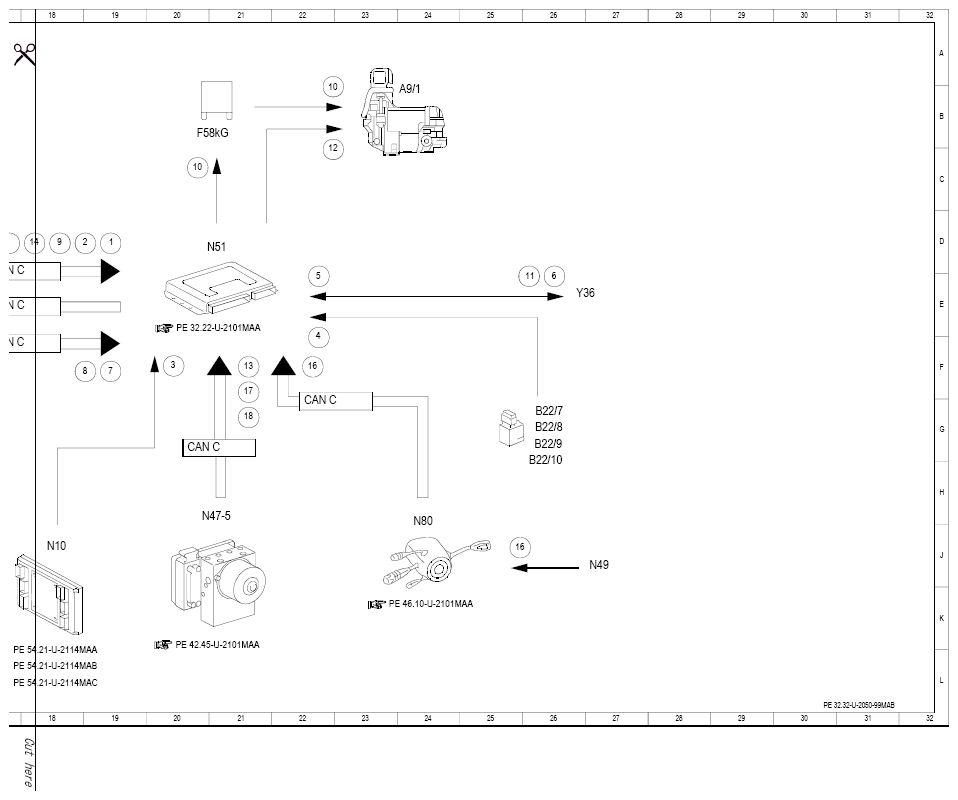

AIRMATIC control unit |
20 D |
| N72/1 |
Upper control panel control module |
7 A |
| N80 |
Steering column module |
24 J |
| N93 |

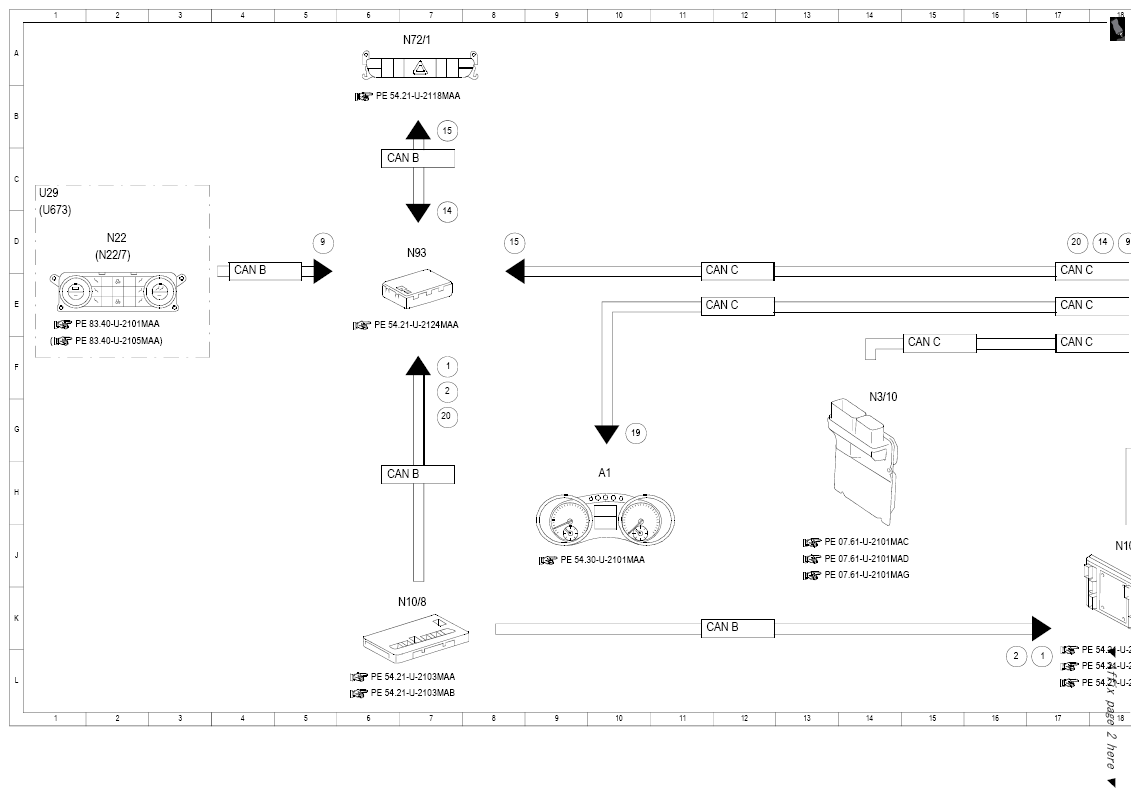

Central gateway control module |
7 D |
| U29 |
Valid for AAC [KLA] |
1 C |
| U673 |
Valid for Comfort AAC [K-KLA] |
1 D |
| Y36 |
AIRmatic valve unit |
26 E |
