Remove/install suspension (ADS) control unit - AR32.32-P-0500GZ
MODEL 164 with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system ADS)
MODIFICATION NOTES
| 4.8.06 | Disconnect ground line discontinued |
| Remove/install | |||
| Notes on avoiding damage to electronic components due to electrostatic discharge | All models | AH54.00-P-0001-01A | |
| 1 | Read out coding of AIRmatic control unit (N51) | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||

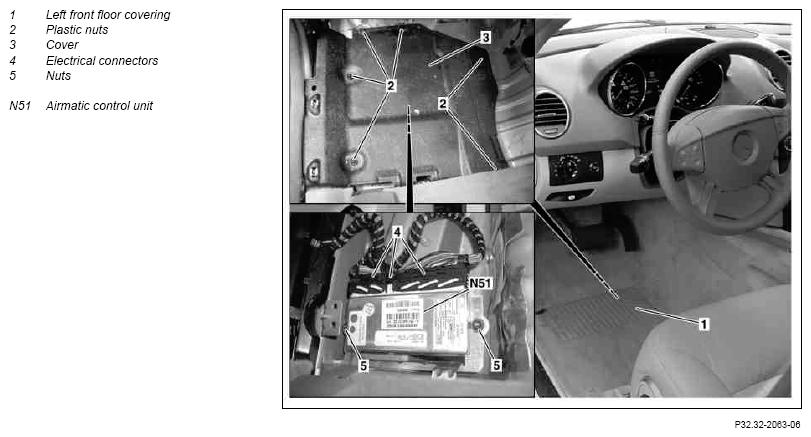

| 2 | Remove left front floor covering (1) | AR68.20-P-2050GZ | |
| 3 | Unscrew plastic nuts (2). | ||
| 4 | Remove cover (3) | ||
| 5 | Disconnect electrical connectors (4). | ||
| 6 | Unscrew nuts (5). | ||
| 7 | Remove AIRmatic control unit (N51) | ||
| 8 | Install in the reverse order | ||
| 9 | Code AIRmatic control unit (N51) | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A | ||
| 10 | Check vehicle level at front and rear axle, adjust it and store normal level in control unit again | ||
| STAR DIAGNOSIS diagnosis system | *WH58.30-Z-1048-13A |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1048-13A | STAR DIAGNOSIS diagnosis system, Compact Passenger Car | 6511 1801 00 |
