Central reservoir component description - GF32.22-P-5102GZ
MODEL 164.1/8 with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system ADS) up to Model Year 8
MODEL 164.8 with CODE (489) AIRmatic (air suspension with level adjustment without ADS adaptive damping system) with CODE (494) USA version up to Model Year 8

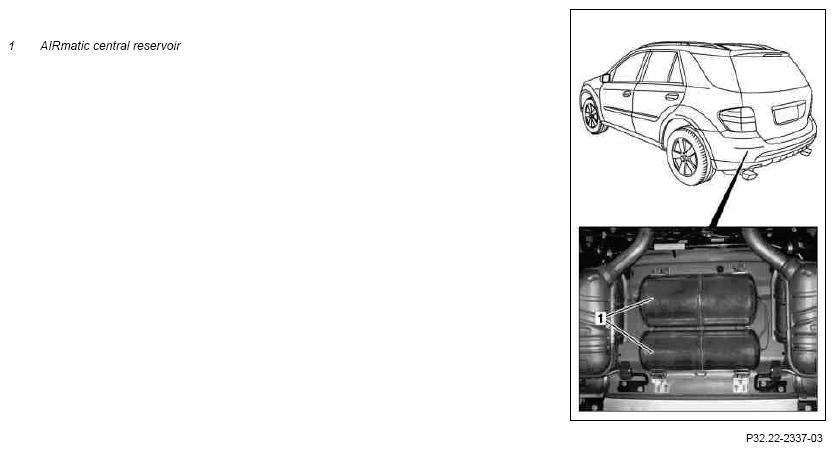

Shown on model 164.1
Location
The AIRmatic central reservoirs are mounted under the load compartment.
Task
Storage of compressed air for the level adjustment system in order to ensure fast adjustment of the vehicle level irrespective of whether or not the compressor is running.
To enable level control without actuating the AIRmatic compressor unit (A9/1) when the vehicle is stationary or at a low speed.
