AIRmatic, location of components - GF32.22-P-0003-05GM

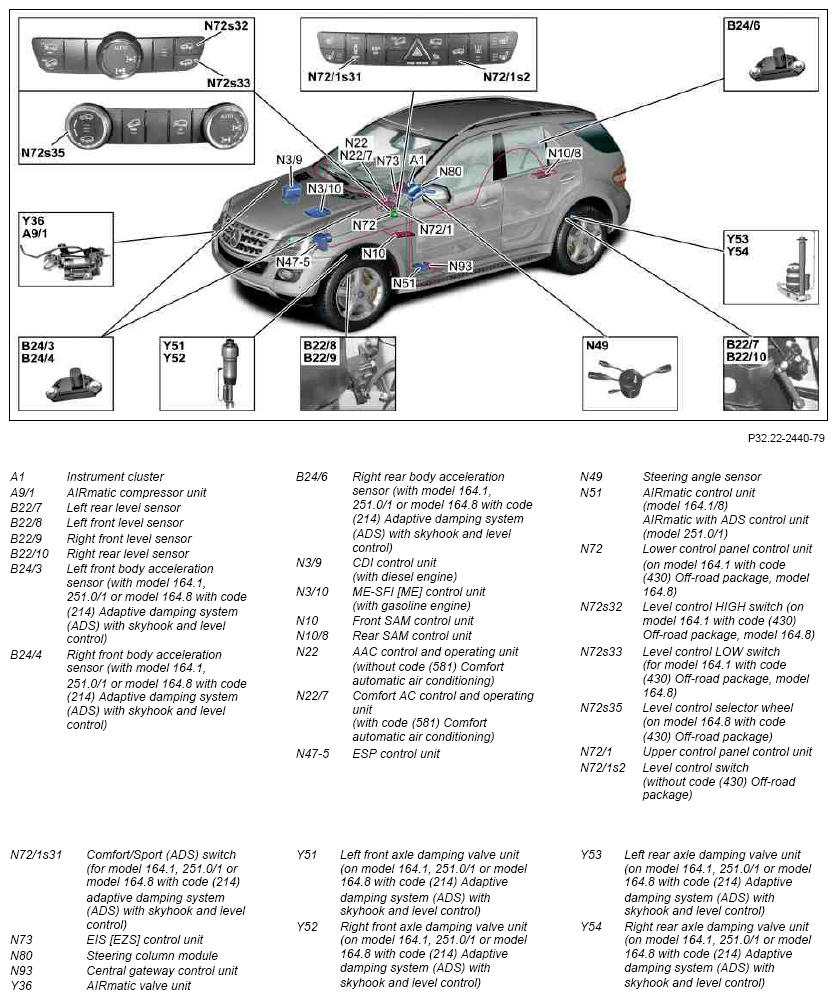

Fig 1: AIRmatic Components Location - Shown On Model 164.1

G10116156

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1
