AIRmatic valve unit, component description - GF32.22-P-5105GZ

MODEL 164.1/8 with CODE (489) Airmatic (air suspension with level adjustment and adaptive damping system ADS) up to Model Year 8

MODEL 164.8 with CODE (489) AIRmatic (air suspension with level adjustment without ADS adaptive damping system) with CODE (494) USA version up to Model Year 8

Shown on model 164.1

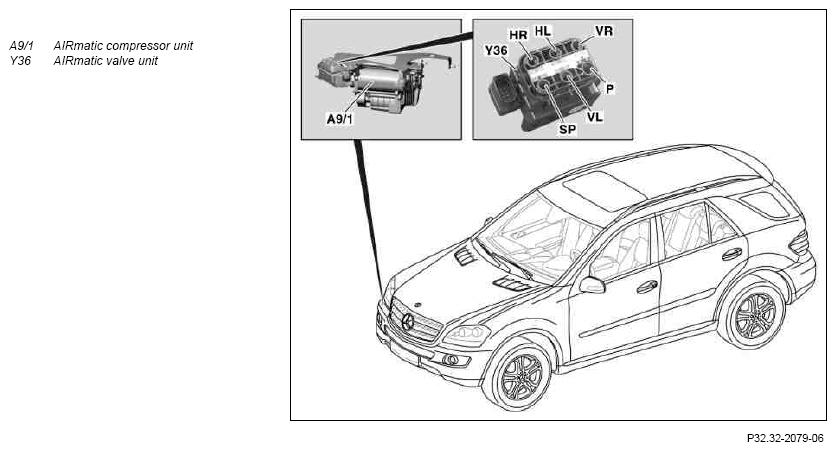

Fig 1: Identifying Airmatic Compressor Unit And Valve Unit - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Location

The AIRmatic valve unit is a component of the AIRmatic compressor unit, which is located on a bracket behind the right bumper.

Task

The four level valves LR, RR, LF, RF serve to adjust the vehicle level.

P: To AIRmatic compressor unit

SP: To central reservoir

Function

If one of the level valves is actuated, air can be delivered into the corresponding bellows via the compressor and/or the central air reservoir (lifting vehicle). On the other hand, if the release valve is actuated when a level valve is actuated (with compressor switched off), air can escape from the bellows and the vehicle level is lowered.
