AIRmatic - location of the electrical/electronic components - GF32.22-P-0003-03GZA

Model 164.8 with code 489 Airmatic (air suspension with level adjustment without adaptive damping system ADS) and code 494 USA version

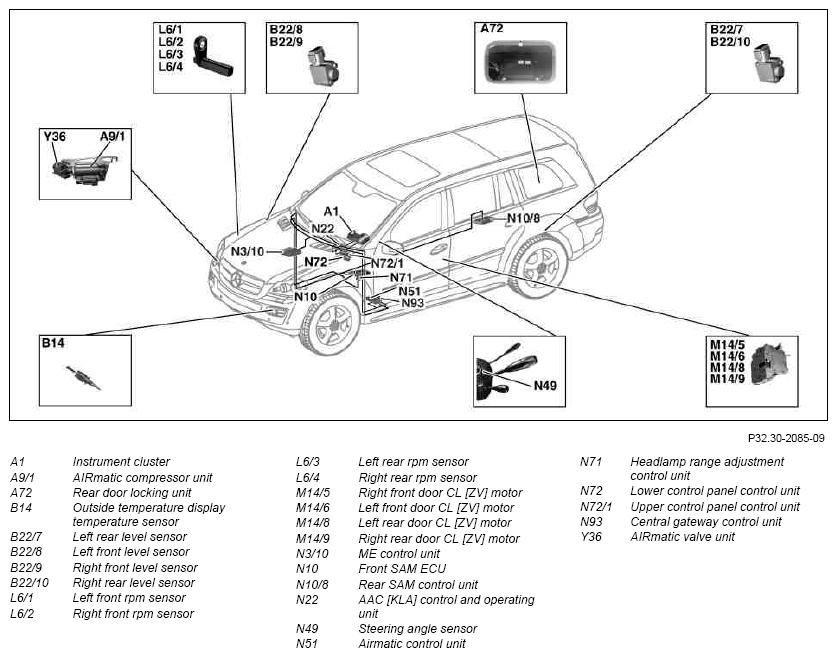

Fig 1: AIRmatic Electrical/Electronic Components Location
G10116155Courtesy of MERCEDES-BENZ USA
