AIRmatic - location of the electrical/electronic components - GF32.22-P-0003-03GZ

Model 164.1/8 with code 489 Airmatic (air suspension with level adjustment and adaptive damping system (ADS))

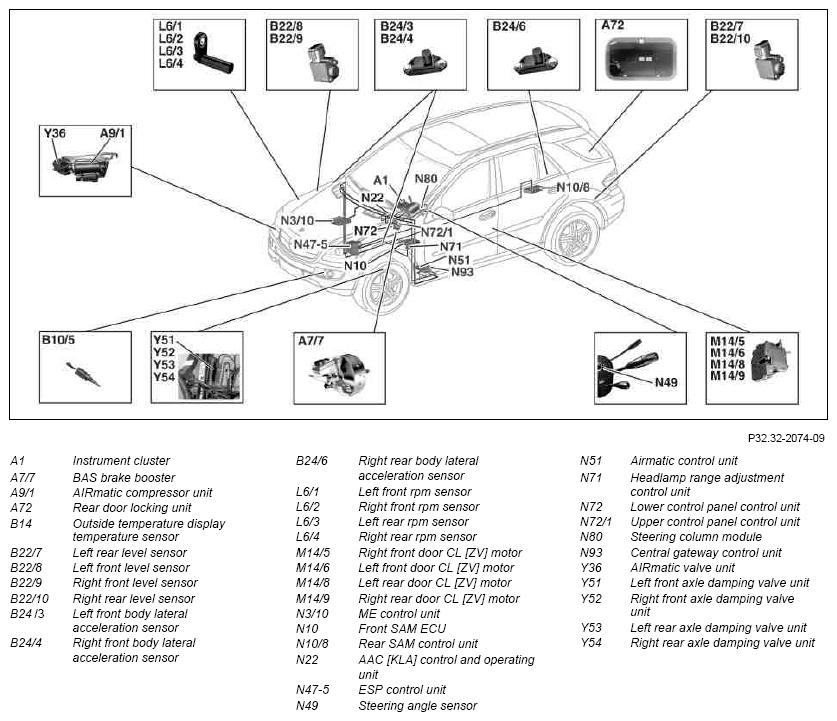

Fig 1: AIRmatic Electrical/Electronic Components Location

Courtesy of MERCEDES-BENZ USA
