Remove/install underfloor paneling - AR61.30-P-1001GZ
MODEL 164
Shown on model 164.1 with engine 113

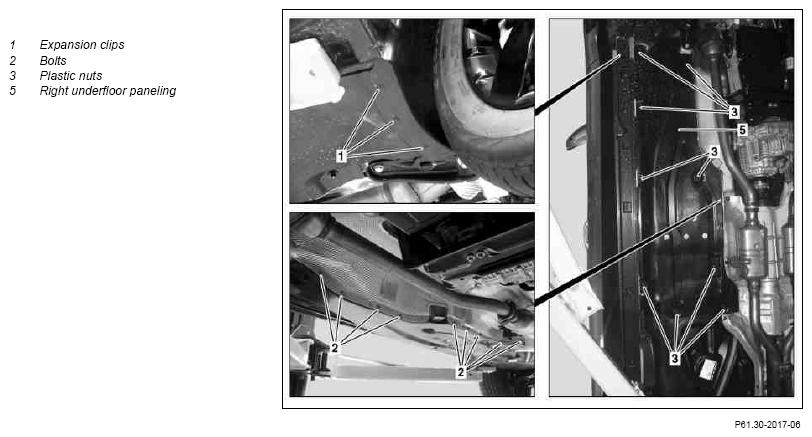

Fig 1: Identifying Underfloor Paneling Remove/Install Components - Shown On Model 164.1 With Engine 113
Shown on model 164.1 with engine 113

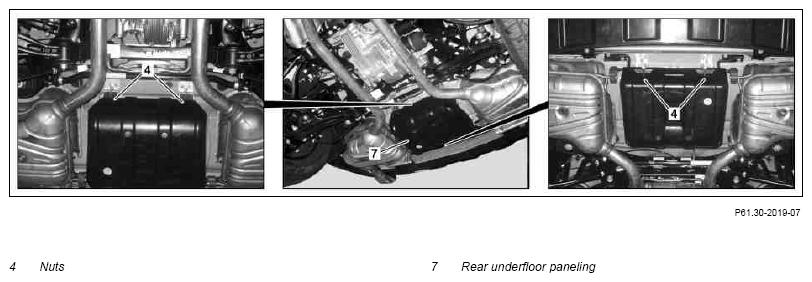

Fig 2: Identifying Underfloor Paneling Remove/Install Components - Shown On Model 164.1 With Engine 113

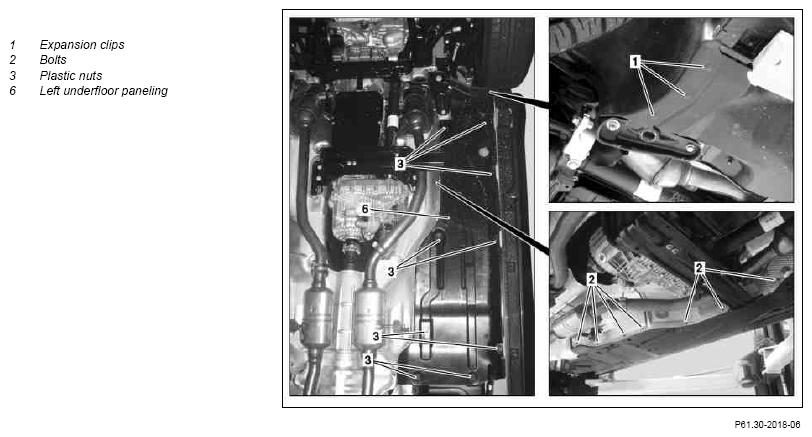

Fig 3: Identifying Underfloor Paneling Remove/Install Components - Shown On Model 164.1 With Engine 113
Shown on model 164.1 with engine 113
| Remove/install | |||
| Number and position of expansion clips (1), bolts (2) and plastic nuts (3) can vary according to vehicle model. | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between lifting platform columns and position the four mounting plates at the indicated lifting platform attachment points specified by the manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift/jack up vehicle | AR00.60-P-1000GZ | |
| 2 | Remove expansion clips (1) | ||
| 3 | Unscrew bolt (2) | ||
| 4 | Unscrew plastic nuts (3) and nuts (4), remove left underfloor paneling (6) as well as right underfloor paneling (5) and rear underfloor paneling (7). | ||
| 5 | Install in the reverse order |
