Remove/install bottom engine compartment paneling - AR61.20-P-1105GZ
MODEL 164 with ENGINE 113, 156, 272, 273

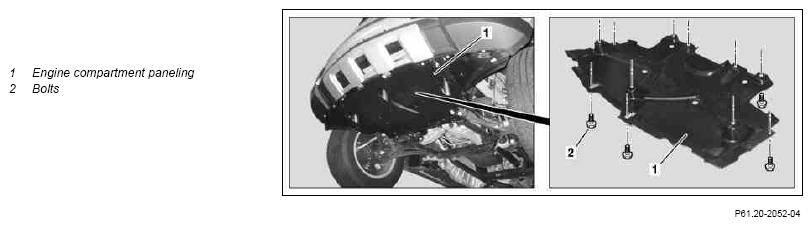

Shown on model 164.175
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle with two-post lift | AR00.60-P-1000GZ | |
| 2 | Remove bolts (2) | ||
| 3 | Remove engine compartment paneling (1) | ||
| 4 | Install in the reverse order |
