Remove/install rear head restraint - AR91.16-P-1770TX
MODEL 219.3

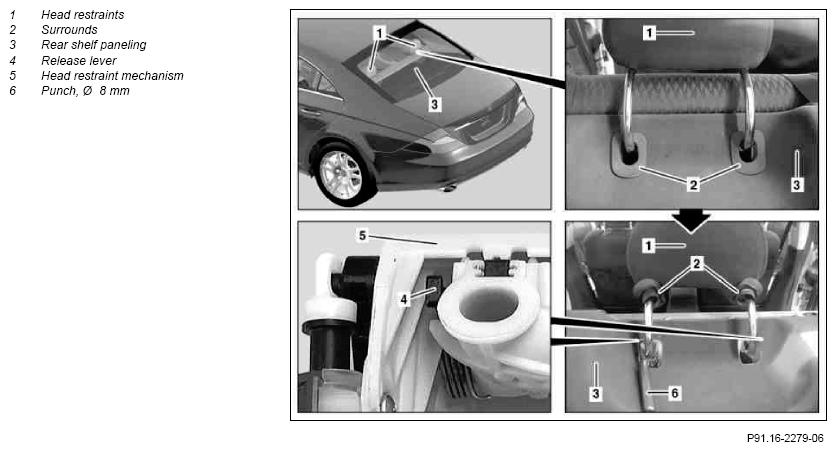

| Remove | |||
| 1 | Move left or right head restraint into upright position (1) by hand | ||
| 2 | Unclip trim pieces (2) from the rear shelf (3) | ||
| 3 | Operate the left and right release levers (4) with an Ø 8 mm punch (6) | ||
| 4 | Pull head restraint (1) out of head restraint mechanism (5) | ||
| Install | |||
| 5 | Guide head restraint (1) into head restraint mechanism (5) until the head restraint (1) locks | ||
| 6 | Install covers (2) | ||
| 7 | Perform head restraint folding function check |
