Remove/install airbag unit on steering wheel - AR91.60-P-0660TX
MODEL 219.3 up to 3/2/08 except code 809 (Model year 2009)
Shown with code 443 (Steering wheel heater)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical components to temperatures above 100°C or 212°F. Disconnect current supply when working on such components. |
AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Adjust driver seat and steering column all the way back | ||
| 2 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Disconnect battery ground line | AR54.10-P-0003TX | |

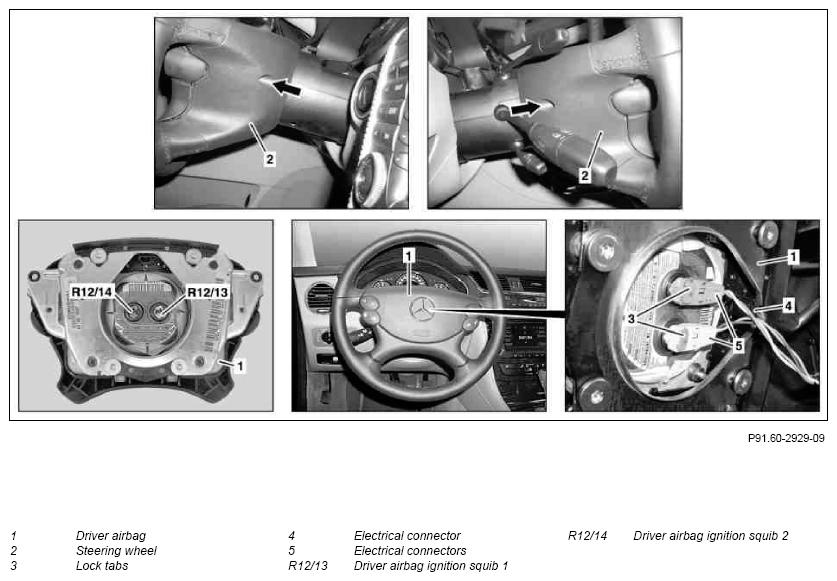

| 4 | Insert screwdriver bit into openings (arrows) at rear on steering wheel (2) and remove screws/bolts from driver airbag (1) | except code 494 (US version) except code 809 (Model year 2009) Bolt, airbag to steering wheel |
*BA91.60-P-1001-01J |
with code 494 (US version) except code 809 (Model year 2009) Screw/bolt, airbag to steering wheel |
*BA91.60-P-1007-01G | ||
| Figure | |||
| 5 | Remove driver airbag (1) from steering wheel (2) until electrical connectors (5) are accessible | ||
| 6 | Release and disconnect electrical connectors (4) | Model 219.3 up to 3/2/08 with code 443 (Steering wheel heater) except code 809 (Model year 2009) |
|
| 7 | Unclip lock tabs (3) and disconnect electrical connectors (5) | Figure | |
| 8 | Remove driver airbag (1) from steering wheel (2) | ||
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Check and erase vehicle fault memory using diagnostic system | When replacing the driver airbag (1). | |
| AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | MODEL 219.3 except CODE 494 | |
|---|---|---|---|
| BA91.60-P-1001-01J | Bolt, airbag to steering wheel | Nm | 7 |
AIRBAG
| Number | Designation | MODEL 219.3 with CODE 494 | |
|---|---|---|---|
| BA91.60-P-1007-01G | Screw/bolt, airbag to steering wheel | Nm | 7 |
