Drain/fill in coolant - AR20.00-P-1142TMG

ENGINE 156.982 in MODEL 209.377/477

ENGINE 156.983 in MODEL 211.077/277, 219.377

Shown on model 211

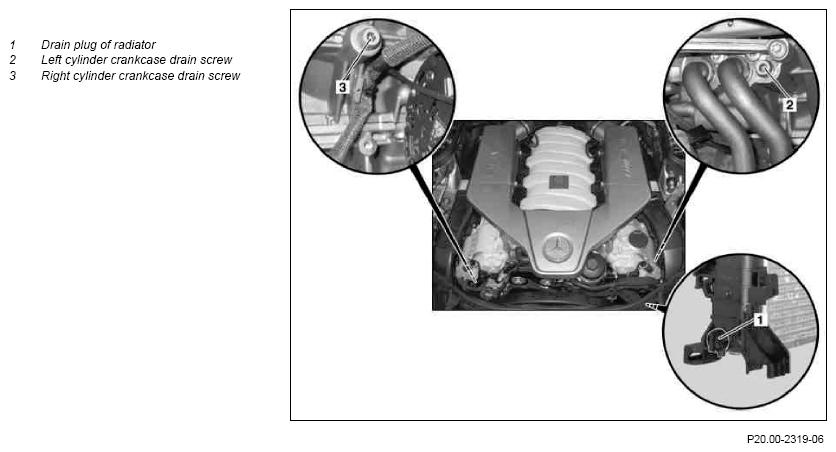

Fig 1: Identifying Radiator Drain Plug And Crankcase Drain Screws - Shown On Model 211

Courtesy of MERCEDES-BENZ USA

	Drain
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of death  caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning  caused by swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of explosion  caused by escaping oxyhydrogen gas. Risk of injury  caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries  caused by short circuit. Risk of poisoning  caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices	No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect ground line from battery	When draining coolant at the right drain plug (3) on the crankcase.
	Notes on battery	All models	AH54.10-P-0001-01A
		Model 209	AR54.10-P-0003Q
		Model 211.0	AR54.10-P-0003T
		Model 211.2	AR54.10-P-0003TA
		Model 219	AR54.10-P-0003TX
2	Open engine hood	Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
		Model 219	AR88.40-P-1000TX
3	Open cap on coolant expansion reservoir	Unscrew cap slowly and release excess pressure, then screw down cap.
4	Raise vehicle with vehicle lift	Model 209	AR00.60-P-1000P
		Model 211	AR00.60-P-1000T
		Model 219	AR00.60-P-1000TX
5	Remove bottom engine compartment paneling	Model 209	AR61.20-P-1105P
		Model 211	AR61.20-P-1105T
		Model 219	AR61.20-P-1105TX
	Drain coolant from radiator
6	Slide collector siphon hose onto fitting on radiator	The fitting is located at the bottom left on the radiator.
7	Open siphon hose (1) on radiator and drain coolant	Catch coolant in a suitable vessel. Observe regulations for disposal of coolant.
	Drain coolant at crankcase
8	Loosen crankcase drain plug on the left (2) and crankcase drain plug on the right (3)	Only loosen drain plug from crankcase until it can be turned by hand.
9	Push drain hose onto crankcase drain screws
10	Continue to loosen crankcase drain screws by hand and drain of coolant	Catch coolant in a suitable vessel. Observe regulations for disposal of coolant.
	Filling
11	Tighten drain plug (1) at radiator and detach siphon hose from fitting	After coolant is drained at the radiator.
12	Detach drain hose from crankcase drain screws	After coolant is drained at the radiator.
13	Tighten crankcase drain plug on the left (2) and crankcase drain plug on the right (3)		*BA03.20-P-1009-01J
14	Pour in coolant and bleed cooling system	Use clean coolant again.	AR20.00-P-1142-04A
	Notes on coolant	All engines	AH20.00-N-2080-01A
	Notes on coolant level	Model 209	AH20.00-P-1142-01PI
	Notes on coolant level	Model 211, 219	AH20.00-P-1142-01V
	Coolant specifications	Sheet 310.1	Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
	Anticorrosion/antifreeze agents (Sheet 325.0)	Sheet 325.0	Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
		Cooling system	*BF20.00-P-1001-02U
		Tester cap	Figure
		Pressure pump	Figure
		Cooler vacuum filling device	Fig 4
15	Inspecting cooling system for leaks		AR20.00-P-1010TMG
16	Install engine compartment paneling	Model 209	AR61.20-P-1105P
		Model 211	AR61.20-P-1105T
		Model 219	AR61.20-P-1105TX
17	Lower vehicle
18	Screw cap onto coolant expansion reservoir
19	Connect ground cable to battery	After fully tightening the crankcase drain plug on the right (3).
		Model 209	AR54.10-P-0003Q
		Model 211.0	AR54.10-P-0003T
		Model 211.2	AR54.10-P-0003TA
		Model 219	AR54.10-P-0003TX
20	Perform basic programming	Only if ground lead of battery has been disconnected.
		Model 209	AR00.19-P-0200Q
		Model 211	AR00.19-P-0200T
		Model 219	AR00.19-P-0200TX
21	Close engine hood	Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
		Model 219	AR88.40-P-1000TX
