Remove/install front axle level sensors - AR82.10-P-0004TX

MODELS 219.3 with CODE (615) Bi-xenon headlamp unit with integrated curve illumination

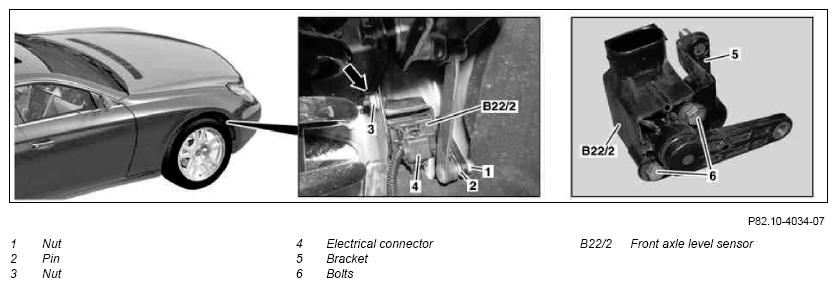

Fig 1: Identifying Front Axle Level Sensors Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Raise vehicle with lifting platform		AR00.60-P-1000TX
2	Counterhold pin (2) and unscrew nut (1)	Replace self-locking nut (1).
3	Unscrew nut (3) and concealed nut (arrow)	Replace self-locking nut (3) and self-locking concealed nut (arrow).
4	Disconnect electrical connector (4) and remove front axle level sensor (B22/2)
5.1	Unscrew bolts (6) and remove bracket (5)	Only when replacing the front axle level sensor (B22/2). Replace self-locking bolts (6).
6	Install in the reverse order
7	Check the adjustment of the left front lamp unit and the right front lamp unit, correct if necessary.
	Check and correct headlamp setting		AP82.10-P-8260TX
