Set up Celette straightening bench - AR60.10-P-1060Y

MODEL 219

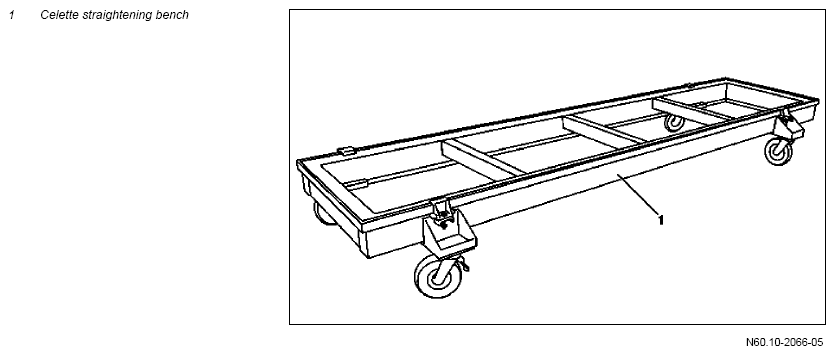

Fig 1: Identifying Celette Straightening Bench
G10768193Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/Install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
1 Lift vehicle with two-post lift Two-post lift   *WE58.40-Z-1001-05A
2 Celette straightening bench (1)
Celette straightening bench M8S *WE58.40-Z-1001-01E
Celette straightening bench MT 10 *WE58.40-Z-1001-01E
Celette straightening bench Sevenne *WE58.40-Z-1001-01E
3 Install Celette modular members   AR60.10-P-1060-01Y
COMMERCIALLY AVAILABLE TOOLS 8 mm screwdriver insert for hexagon socket head screws *WH58.30-Z-1026-06A
COMMERCIALLY AVAILABLE TOOLS Reversible ratchet *WH58.30-Z-1007-06A
COMMERCIALLY AVAILABLE TOOLS Pneumatic ratchet driver 1/2 *WE58.40-Z-1008-03A
COMMERCIALLY AVAILABLE TOOLS Double box wrench, offset, 22 x 24 mm *WH58.30-Z-1002-11A
Celette straightening bench M8S *WE58.40-Z-1001-01E
Celette straightening bench MT 10 *WE58.40-Z-1001-01E
Celette straightening bench Sevenne *WE58.40-Z-1001-01E
Set of Celette modular members 955.940 *WE58.40-Z-1007-01E
Celette additional member 955.908 *WE58.40-Z-1008-01E
4 Attach Celette straightening tools and MZ elements   AR60.10-P-1060-02Y
COMMERCIALLY AVAILABLE TOOLS Reversible ratchet *WH58.30-Z-1007-06A
COMMERCIALLY AVAILABLE TOOLS Pneumatic ratchet driver 1/2 *WE58.40-Z-1008-03A
COMMERCIALLY AVAILABLE TOOLS Double box wrench, offset, 17 19 mm *WH58.30-Z-1001-11A
Celette straightening set 7211.300 (for Model 211) *WE58.40-Z-1039-01A
5 Remove stop plug from jack tubes
6 Place vehicle on straightening bench
7 Align vehicle on straightening bench IMPORTANT Observe check bore!
8 Attach vehicle to straightening bench
9.1 Attach side portal with portal straightening set IMPORTANT Only when the vehicle repair demands it. AR60.20-P-1550-01Y
SPECIAL TOOL Side portal frame Fig 2
SPECIAL TOOL Inspection and welding device Fig 3
SPECIAL TOOL Welding device Fig 4
COMMERCIALLY AVAILABLE TOOLS 8 mm screwdriver insert for hexagon socket head screws *WH58.30-Z-1026-06A
COMMERCIALLY AVAILABLE TOOLS SW19 socket wrench bit, for hexagon bolts *WH58.30-Z-1010-06A
COMMERCIALLY AVAILABLE TOOLS Reversible ratchet *WH58.30-Z-1007-06A
COMMERCIALLY AVAILABLE TOOLS Pneumatic ratchet driver 1/2 *WE58.40-Z-1008-03A
COMMERCIALLY AVAILABLE TOOLS Double box wrench, offset, 17 19 mm *WH58.30-Z-1001-11A
COMMERCIALLY AVAILABLE TOOLS Double box wrench, offset, 22 x 24 mm *WH58.30-Z-1002-11A
Celette straightening set 7211.300 (for model 211) *WE58.40-Z-1039-01A
Fig 2: Identifying Side Portal Frame (210 589 17 23 00)
G10768194Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Inspection And Welding Device (211 589 00 23 00)
G10768195Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Welding Devices (219 589 00 23 00)
G10768196Courtesy of MERCEDES-BENZ USA
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1007-06A Reversible ratchet
WH58.30-Z-1010-06A Socket SW19 for hexagon head screws
WH58.30-Z-1026-06A Screwdriver bit, 8 mm for hexagon socket head screws
WH58.30-Z-1001-11A Double end box wrench, offset, 17 x 19 mm
WH58.30-Z-1002-11A Double end box wrench, offset, 22 x 24 mm
WORKSHOP EQUIPMENT

WE58.40-Z-1039-01A Celette straightening bracket set 7211.300 (model 211)
WE58.40-Z-1001-01E Celette straightening bench
WE58.40-Z-1007-01E Celette module crossmember set 955.940
WE58.40-Z-1008-01E Celette additional member 955.908
WE58.40-Z-1008-03A Pneumatic ratchet
WE58.40-Z-1001-05A Two-post lifting platform
