Remove/install footwell paneling (left) - AR68.30-P-4020TX

MODEL 219.3

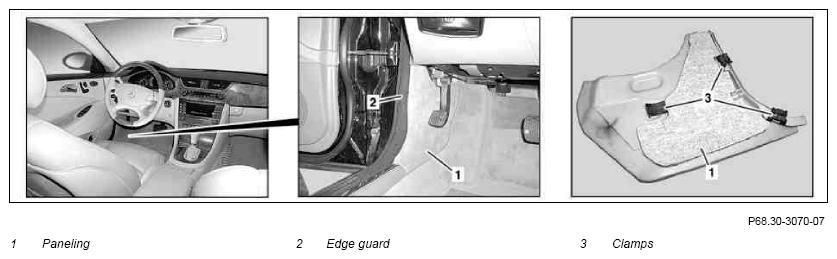

Fig 1: Identifying Footwell Paneling (Left) Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove left front door sill molding		AR68.30-P-4100TX
2	Loosen edge guard (2) in area of paneling (1)
3	Forcefully pull paneling (1) toward rear and unclip from clips (3) on A-pillar	Ensure that clips (3) are seated correctly.
4	Remove paneling (1) from footwell
5	Install in the reverse order
