Remove/install ashtray housing in front center console - AR68.20-P-2400TX
MODEL 219.3
Shown with code (889) Keyless Go

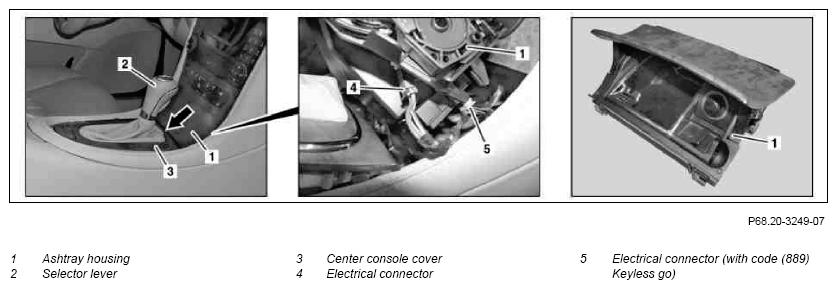

Fig 1: Identifying Ashtray Housing In Front Center Console Remove/Install Components - Shown With Code (889) Keyless Go
| Remove/install | |||
| 1 | Move selector lever (2) to rear-most position. | ||
| 2 | Open ashtray housing (1) | ||
| 3 | Press center console cover (3) toward rear and hold down. Unclip center console cover (3) upward in front area (arrow) Then raise center console cover (3) at front and slide toward front until center console cover (3) is unhooked in rear area. | ||
| 4 | Pull ashtray housing (1) out of center console until electrical connectors (4, 5) are accessible | Electrical connector (5) only on vehicles with code (889) Keyless Go | |
| 5 | Disconnect electrical connector (4) | ||
| 6.1 | Disconnect electrical connector (5) | On vehicles with code (889) Keyless Go | |
| 7 | Remove ashtray housing (1) | ||
| 8 | Install in the reverse order |
