Remove/install outer paneling on trunk lid - AR88.50-P-5080TX

MODEL 219.3

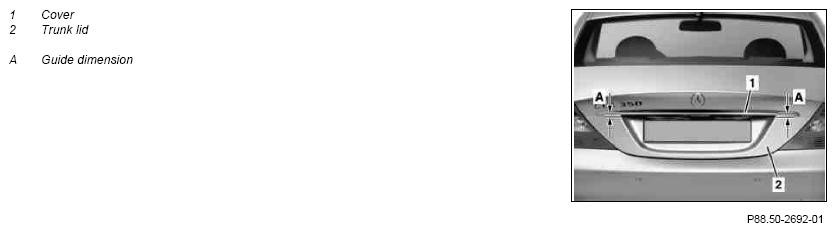

Fig 1: Identifying Outer Paneling On Trunk Lid Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

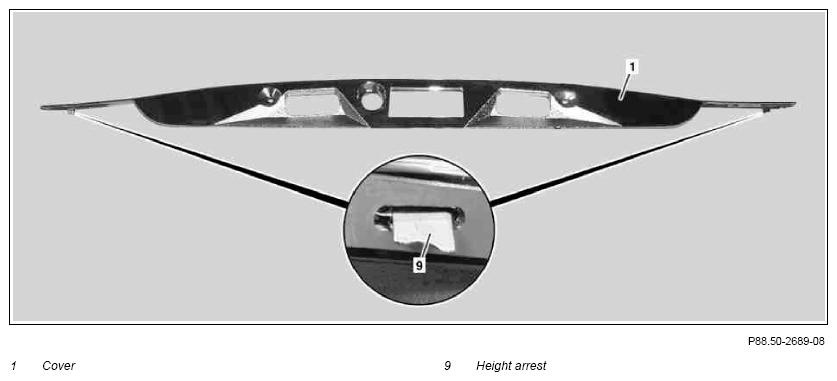

Fig 2: Identifying Outer Paneling On Trunk Lid Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

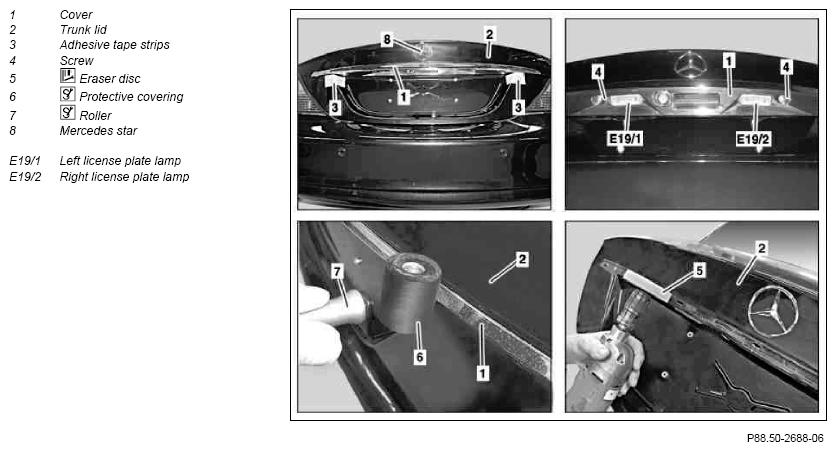

Fig 3: Identifying Outer Paneling On Trunk Lid Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Removing
	If the paneling (1) is replaced due to paint and body work, ensure that there are no paint shoulders or masking shoulders on the assembly point (bonding surface) on the trunk lid (2). If this is not observed, water can penetrate between the trunk lid (2) and the paneling (1).
1	Open trunk lid (2)
2	Install adhesive tape strips (3) on trunk lid (2) as illustrated.	To protect paint on trunk lid (2) when removing and installing paneling (1) later.
3	Remove lenses from left license plate lamp (E19/1) and right license lamp (E19/2)
4	Remove screws/bolts (4)
5	Heat paneling (1) along bonding surface with heat gun, simultaneously press off of trunk lid (2) with mounting wedge and remove.	Carefully remove paneling (1) from trunk lid (2) and remove to prevent damaging paint on trunk lid (2). Paneling (1) is damaged during removal and must be replaced.
5		Hot-air gun	Figure
6	Remove glue residues from trunk lid (2) with eraser disc (5)	Removal disk, Ø 100 mm with fixing shank, 3M Deutschland GmbH D-41453 Neuss Drill
	Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks		AH00.00-P-0013-01AK
7	Clean bonding surface on trunk lid (2)	Bonding surface must be free of grease and dust, otherwise the adhesive force of the paneling (1) starts to decrease and leakage can occur.
7	Clean bonding surface on trunk lid (2)	Observe drying time for cleaning agent Cleaner	*BR00.45-Z-1025-04A
	Install
8.1	Cut off height arrest (9) with suitable tool, e.g. sharp knife or side cutter pliers.	On vehicles up to vehicle identification end number 027789 Carefully cut off height arrest (9). Danger of damaging paneling (1)
9.1	Position paneling (1) on trunk lid (2), align according to reference dimension (A) and glue on.	On vehicles up to vehicle identification end number 027789 Carefully position paneling (1) on trunk lid (2) to prevent damaging paint on trunk lid (2). When checking reference dimension (A) with feeler gauge, mask feeler gauge with thin adhesive tape, e.g. tesa tape, to protect against paint damage. Reference dimension (A): approx. 0.5 mm on bottom joint between paneling (1) and trunk lid (2).
9.2	Position paneling (1) on trunk lid (2) and glue on	On vehicles up to vehicle identification end number 027790 Carefully position paneling (1) on trunk lid (2) to prevent damaging paint on trunk lid (2).
10	Pull protective covering (6) over roller (7)	If the roller (7) is used without protective covering (6) when accomplishing the following step, the paneling (1) or the trunk lid (2) can be damaged. Use wide protective covering (6).
			Fig 5
			Fig 6
11	Roll paneling (1) onto trunk lid (2).	Tightly roll on paneling (1) (minimum roll-on force 75 N), otherwise the adhesive force of the paneling (1) starts to decrease and leakage can occur. The protective covering (6) on the roller (7) must be completely clean, otherwise the paneling (1) or the trunk lid (2) can be damaged when rolling on. Roll paneling (1) several times from center to left and right sides. Finally roll paneling (1) at center in area below Mercedes star (8) over a length of approx. 20 cm.
			Fig 5
			Fig 6
12	Tighten bolts (4)
13	Install lenses for left license plate lamp (E19/1) and right license lamp (E19/2)
14	Close trunk lid (2)

Fig 4: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Roller (168 589 05 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Protective Covering (221 589 00 98 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
