Removing and installing loudspeaker in instrument panel - AR82.62-P-7833TX
MODEL 219.3
| Remove/Install | |||
| 1.1 | Remove center instrument panel PTS warning display (A44/4) | Only on vehicles with code (220) Parktronic system (PTS) | AR54.65-P-0003TX |

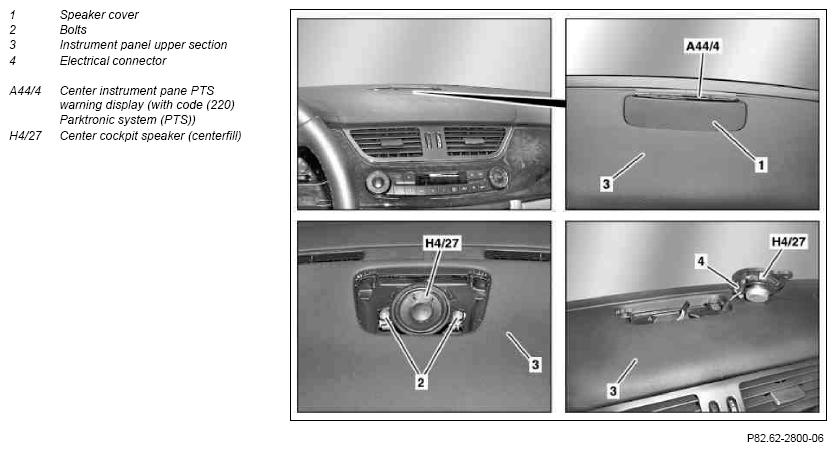

| 2 | Unclip speaker cover (1) using mounting wedge | Fig 2 | |
| 3 | Unscrew bolts (2) | ||
| 4 | Remove center cockpit speaker (centerfill) (H4/27) from top part of instrument panel (3) until the electrical connector (4) is accessible | ||
| 5 | Unplug electrical connector (4) and remove center cockpit speaker (Centerfill) (H4/27) | ||
| 6 | Install in the reverse order |
