Removing and installing keyless go antenna - AR82.62-P-8000TX

MODEL 219.3 with CODE (889) Keyless Go bumper antenna

Illustrated with removed bumper

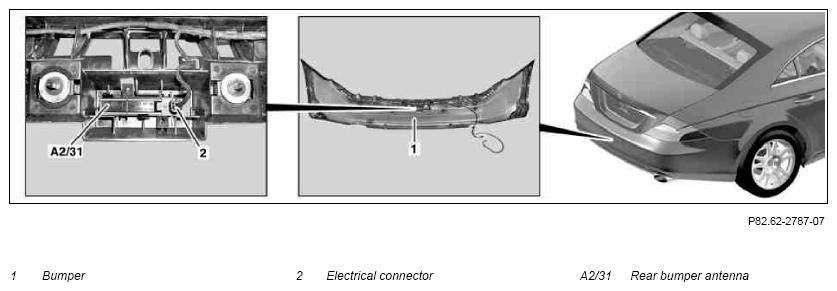

Fig 1: Identifying Keyless Go Antenna Remove/Install Components - Illustrated With Removed Bumper

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Raise vehicle.		AR00.60-P-1000TX
2	Unplug electrical connector (2) from rear bumper antenna (A2/31)	The rear bumper antenna (A2/31) is behind the bumper (1).
3	Unclip and remove rear bumper antenna (A2/31)
4	Install in the reverse order
5	Perform function check
