Removing and installing fog lamps - AR82.10-P-1835TX
MODEL 219.3
| Remove/Install | |||
| 1 | Remove bottom engine compartment paneling at front | AR61.20-P-1105TX | |

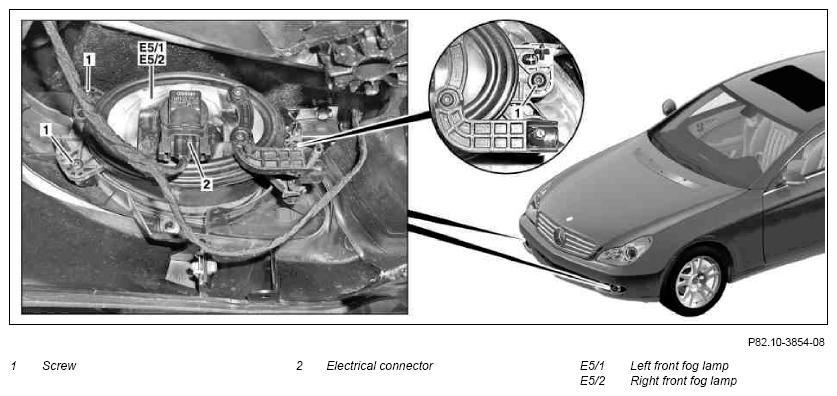

| 2 | Separate electrical connector (2) | ||
| 3 | Remove screws (1) and take out left front fog lamp (E5/1) or right front fog lamp (E5/2) out of the bumper | ||
| 4 | Install in the reverse order | ||
| 5 | Check adjustment of left front fog lamp (E5/1) and right front fog lamp (E5/2), adjust if necessary | ||
| Check and correct headlamp adjustment | AP82.10-P-8260TX |
