Remove/install washer fluid hose of headlamp cleaning system - AR82.15-P-6201TX
MODELS 219.3 with CODE (600) Headlamp cleaning system
| Remove/Install | |||
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000TX | |
| 2 | Remove front section of fender liner in right front fender | AR88.10-P-1310TX | |

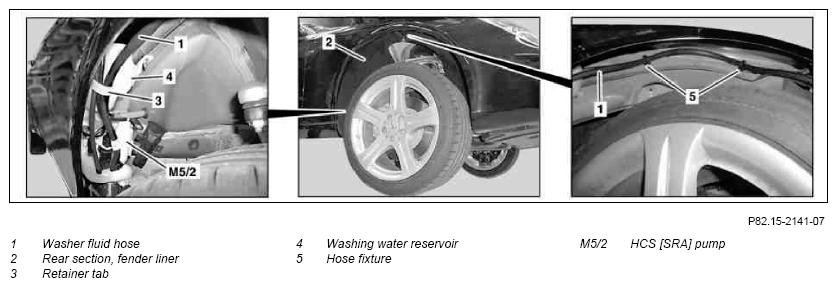

| 3 | Loosen rear section of fender liner (2) in right front fender until the HCS [SRA] pump (M5/2) and the washer fluid hose (1) are accessible | Figure | |
| 4 | Remove bottom engine compartment paneling at front | AR61.20-P-1105TX | |
| 5.1 | Remove front section of fender liner in left front fender | On vehicles with code (489) Airmatic (semi- active air suspension) | AR88.10-P-1310TX |
| 6.1 | Loosen front bumper | On vehicles with code (489) Airmatic (semi- active air suspension) | AR88.20-P-2000-01TX |
| Figure | |||
| 7 | Disconnect washer fluid hose (1) from HCS [SRA] pump (M5/2) and close the hose connection of the HCS [SRA] pump (M5/2) with a suitable stop plug | Fig 4 | |
| 8 | Open retainer tab (3) on washer fluid reservoir (4) | ||
| 9 | Take washer fluid hose (1) out of hose brackets (5) | ||

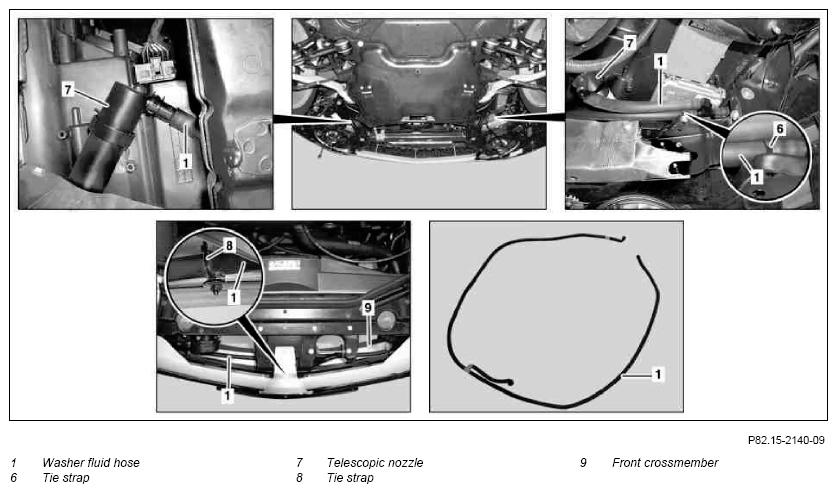

| 10 | Cut cable straps (6) | ||
| 11 | Separate washer fluid hose (1) from left and right telescopic nozzle (7) | ||
| 12 | Lower vehicle with lifting platform | AR00.60-P-1000TX | |
| 13 | Cut cable straps (8) | ||
| 14 | Remove washer fluid hose (1) from front crossmember (9) and take out of front bumper | ||
| 15 | Install in the reverse order | ||
| 16 | Fill washer fluid reservoir (4) | ||
| Windshield washer system - inspect fluid level, adjust to correct level | AP82.35-P-8210TX | ||
| 17 | Perform function test on headlamp cleaning system |
