Remove/install lamp carrier for taillamp - AR82.10-P-4906TY

MODEL 219.3 as of 3.3.08

MODEL 219.3 with CODE (809) Model year 2009

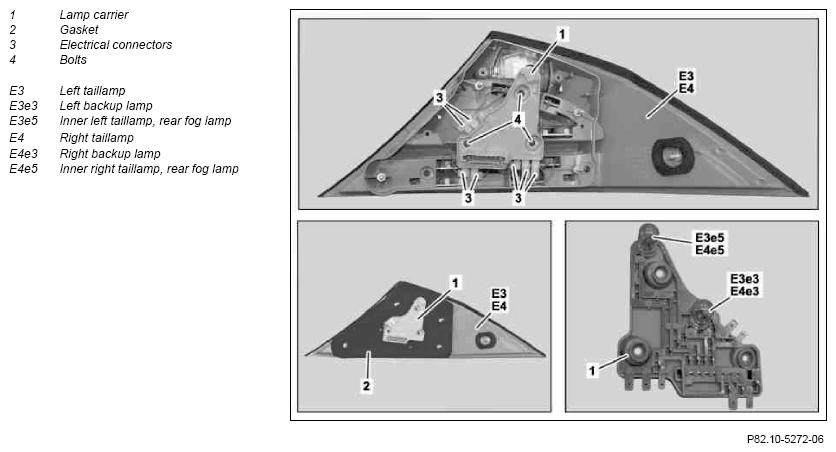

Fig 1: Identifying Taillamp Lamp Carrier Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left taillamp (E3) or right taillamp (E4)		AR82.10-P-4905TX
2	Remove seal (2)
3	Separate electrical connectors (3)
4	Remove bolts (4) and remove lamp carrier (1)	The left backup lamp (E3e3) or right backup lamp (E4e3) or inner left taillight, rear fog light (E3e5) or inner right taillight, rear fog light (E4e5) can be replaced separately.
5	Install in the reverse order
